TAVELO Arow Road Bike Frameset
$1,880.00
Built on the foundations of their debut Attack frame; the Arow is the aero brother of the Attack. Dreamt up as an all-out race bike to take advantage of the relaxed UCI rules, the Arow cuts through the wind like a hot knife through butter.
- 990 ±40g (Size M, including paint and accessories)
- Fully Internal Cable Routing
- Toray T800 Carbon Fiber
- BB86 Bottom Bracket
- 32mm Tire Clearance
- Aero optimized
- Package Includes: Frame, Fork, Seatpost, Saddle Clamp (Both alloy and carbon rail saddles) Thru Axles, Headset & Spacers, Shimano Compatible (24mm spindle) Bottom Bracket, Integrated handlebar
Customer Review
Purchased this frameset on July 22nd, and I had received it in around 8 working days to Ireland. Tom from customer service was absolutely fantastic with getting me all the info and specs required,... keep reading
What Customers Think
- Description
- Additional information
- Brand
- Reviews (2)
Description
Tavelo Arow: Born to Race
The Tavelo Arow is built on the success of the Attack frameset. UCI Certified and taking advantage of the recently relaxed UCI rules, the Arow is the more aero brother of the Attack. Racey geometry, a stiff bottom bracket and stylish paint jobs all lead to create a bike that looks fast as fast as it rides.
Specifications
- Frame Material: Toray T800
- Thru Axles: Front: 12×100, Rear: 12×142
- Headset: FSA (32.8-41.8mm to 34.1-46.9mm)
- BB: PF-BB86 (Press-fit)
- Front derailleur: Removable Hanger
- Tire clearance: Max. 700*32C
- Sizes: XS (420mm), S (450mm), M (480mm), L (510mm), XL (540mm), XXL (580mm)
- Weight: From 820g (For specifics, See below)
- Brakes: Disc Brake
- Shifting: Di2 / eTap. No support for mechanical shifting
- Contents: Frame, Fork, Seatpost, Headset, Integrated Handlebar
- Warranty: 5 Years
Packing a Punch
Relaxed UCI rules on tube profiles has given designers more room to experiment, especially in the head tube area. The Arow features an extended ‘nose’ in order to punch a hole through the air as efficiently as possible at high speeds.
UCI Approved
The Arow was designed from day one to be a race bike This uncompromising approach is designed to make you the fastest you’ve ever been, whether you’re a seasoned racer, a Cat5 newbie, or just racing your friends to city limit signs.
Race Proven
Throughout the development of the Arow we’ve been putting it to the test where it matters; in the races. We’ve used feedback from pro athletes to tweak and refine this race-winning frameset.

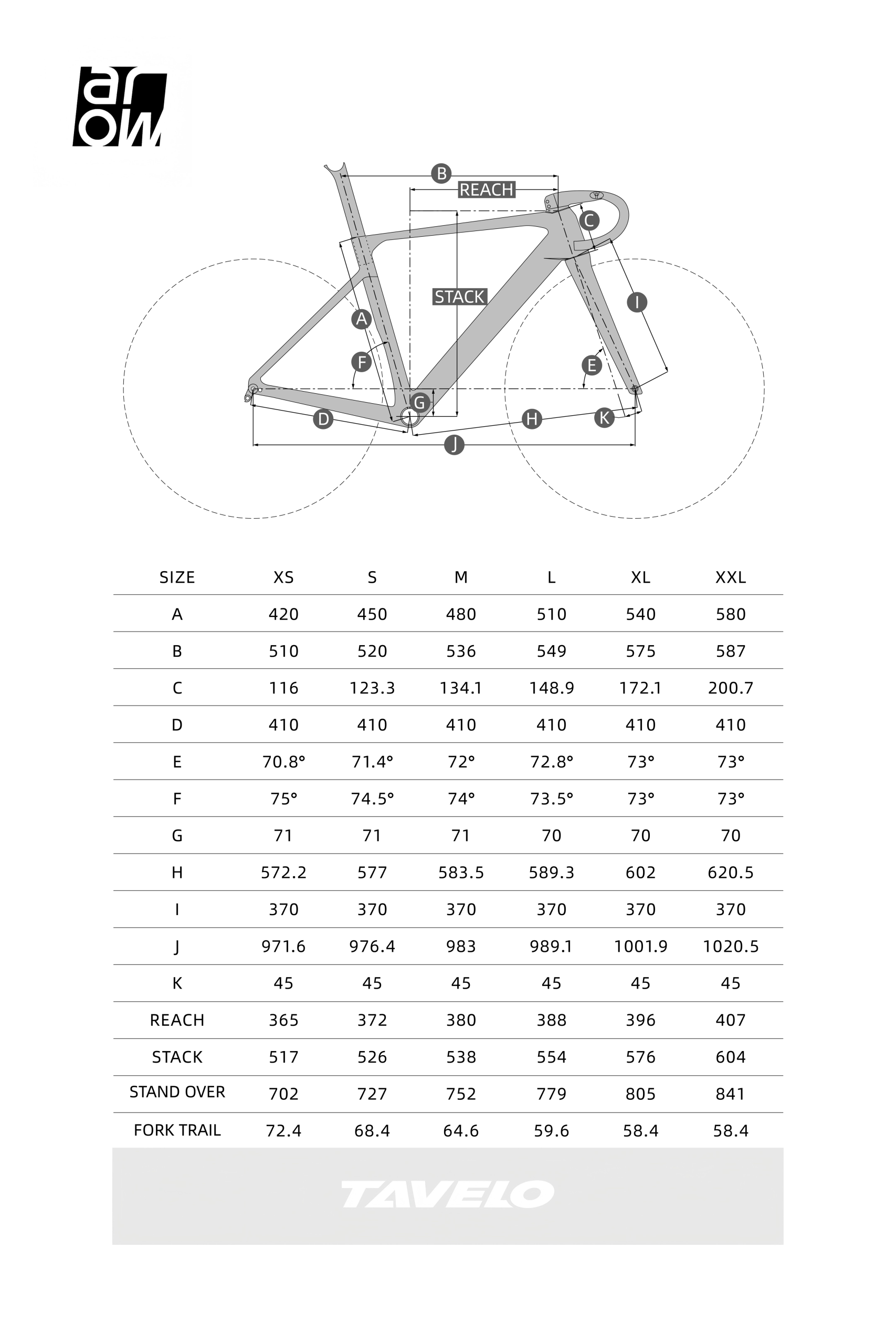

Geometry
We always recommend a bike fit before buying a new bike. However, if you already have a bike that you’re comfortable on, you can compare to the geometry table to find the closest size. If you’re still unsure, contact us and we’ll be happy to help you out.
Weights
| Size | Raw Frame (No paint or accessories) | GEOM Series (Including paint and accessories) |
POLESTAR Series (Including paint and accessories) |
ZEBRA Series (Including paint and accessories) |
AROW02 Series (Including paint and accessories) |
|---|---|---|---|---|---|
| 420 | 820 ±25g | 950 ±40g | 950 ±40g | 950 ±40g | 955 ±40g |
| 450 | 835 ±25g | 965 ±40g | 965 ±40g | 965 ±40g | 970 ±40g |
| 480 | 850 ±25g | 990 ±40g | 990 ±40g | 990 ±40g | 995 ±40g |
| 510 | 870 ±25g | 1010 ±40g | 1010 ±40g | 1010 ±40g | 1015 ±40g |
| 540 | 890 ±25g | 1040 ±40g | 1040 ±40g | 1040 ±40g | 1045 ±40g |
| 580 | 910 ±25g | 1060 ±40g | 1060 ±40g | 1060 ±40g | 1065 ±40g |
| Front Fork | 355 ±15g | 380 ±35g | 380 ±35g | 380 ±35g | 380 ±35g |
| Seatpost | 113 ±5g | 128 ±15g | 128 ±15g | 128 ±15g | 128 ±15g |
Additional information
| Frame Size | XS/420, S/450, M/480, L/510, XL/540, XXL/580 |
|---|---|

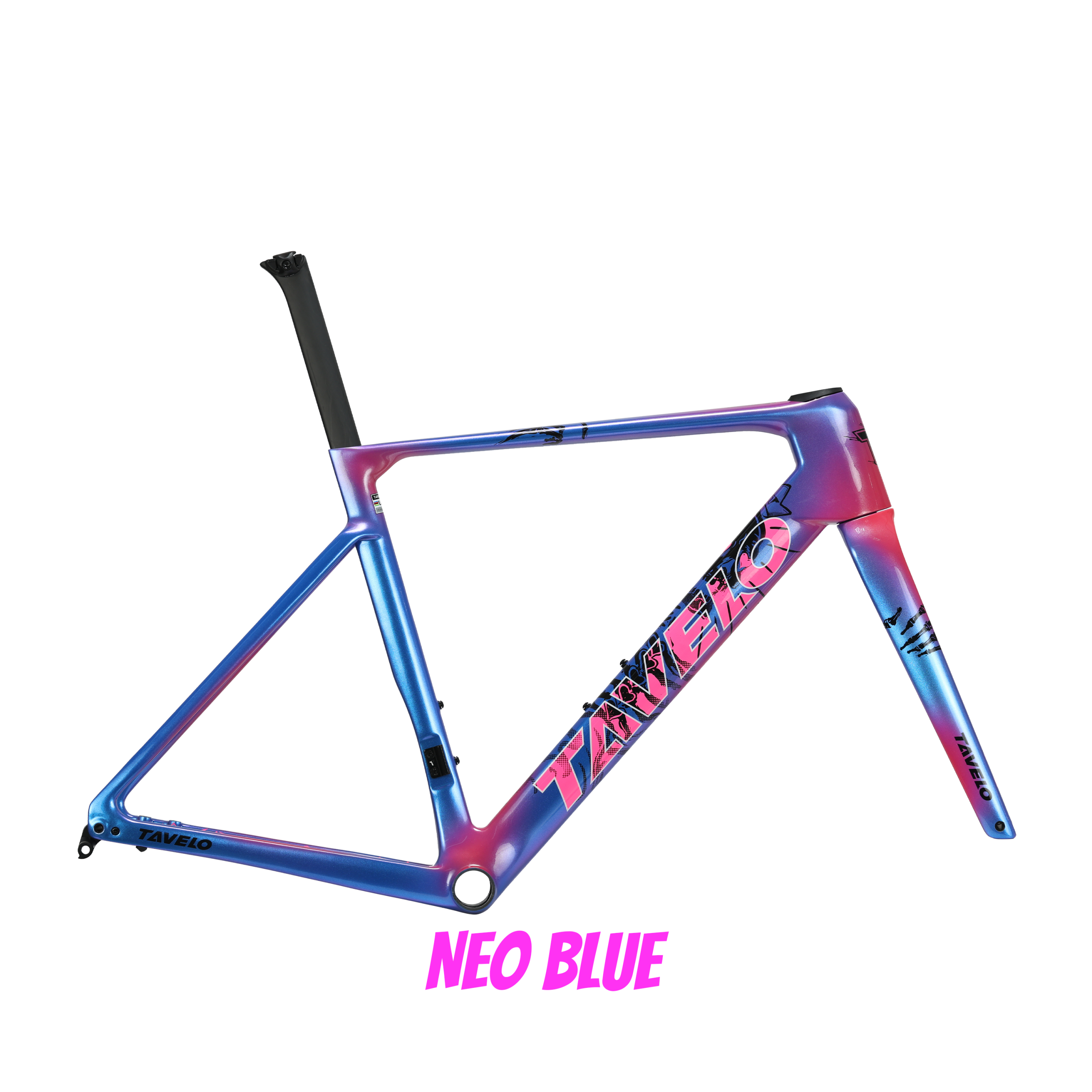

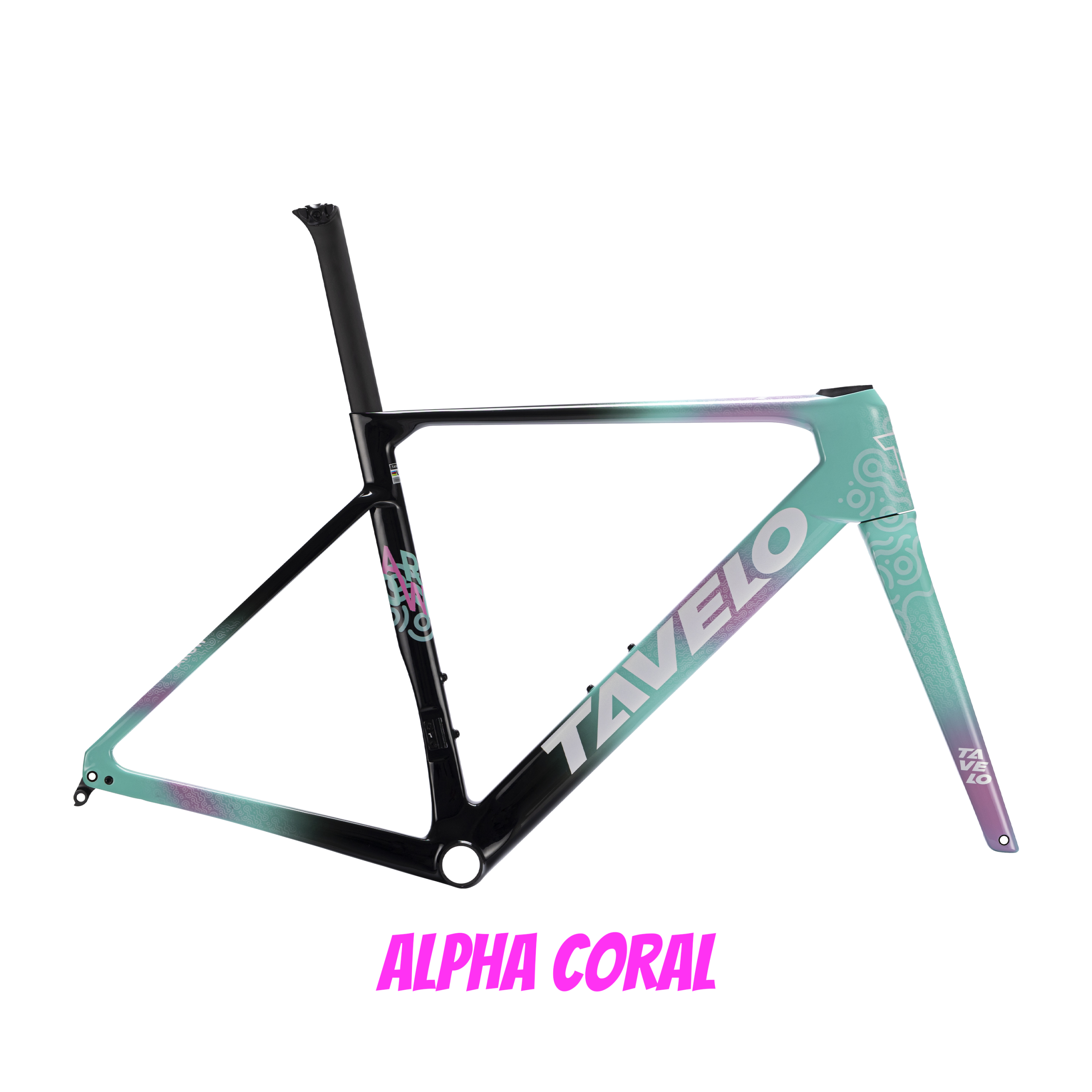

| Color | Dune Orange, Matt Black, Others (Contact us), Radiance Purple |
| Handlebar Width | 360mm, 380mm, 400mm, 420mm |
| Handlebar Length | 100mm, 110mm, 120mm, 130mm, 140mm, 80mm, 90mm |
Brand
TAVELO
| Brand Name: Tavelo | Chinese Company Name: 踏为乐（厦门）体育用品有限公司 |
| Founded: 2023 | # of Employees: 10-20 |
| Headquarters: Xiamen, Fujian | Products Categories: Frames |
s.r.seagrave (verified owner) –
Purchased this frameset on July 22nd, and I had received it in around 8 working days to Ireland.
Tom from customer service was absolutely fantastic with getting me all the info and specs required, and the response time is much quicker than standard western brands.
The packaging of the bike was next to none, Velcro straps, bubble wrap and scratch film all over the bike parts to ensure safe shipment. Everything was perfect. There was no manual in the box (some people might want, some might not) but its always good to have a ref sheet for torque specs for a specific bike which it didn’t have although bolts have torque specs, it would be nice to have extra bits for all bolts.
The bike came with a direct mount hanger and a standard hanger, Garmin mount / wahoo mount, light mount front and rear. It even came with a thread together press fit bb which alone is worth 100+ euro online from western brand online dealers.
I would be fairly handy building a bike myself and this was a breeze to build, once you have a cable routing kit, you will have no problems building this up.
I am around 192cm, and my bike fit requires around a 56 frame with 110-120 mm stem. But I was worried when the seat post was smaller than I had expected. I got in touch with Tom and he re-assured me once the seat post was inside the from by 8cm or more it would be fine, as the seat post has decals stating minimum seat post insert. But I have had no issues at all with the bike.
Personally I was a bit worried forking out that much money on a non western brand, but I can honestly say I am beyond happy with my purchase, the bike rides exactly the same if not better than an sl7 – sl8 and for a fraction of the price.
The actual weight of the frame +/- might be slightly heavier than stated but its not the end of the world, mine built up with ultegra and some old lun hyper black edition built up to around 7.2kg so its actually lighter than an SL7 Pro, the bike would be under 7 with lighter wheels.
So in short the bike is fantastic, the customer service is better than western brands, and I am super happy with my purchase.
Thanks guys!
Michael Bradbrook (verified owner) –
Best Price to Performance Bike Build – I was inspired to undertake this build using the Tavelo frameset after 1) my bike was stolen, and b) I saw Joe’s “Sub 6kg for sub$6k” YouTube video. The philosophy for the new bike was to build something bespoke to my needs, be less expensive than something off the rack, and that would perform on bar with a name-brand race bike. This was the build specification’s major components:
– Tavelo Arow (Race) XL/540 in Matt Black, with integrated bar and stem
– Shimano 105 DI2 R7170 group set
– Elite G45 45mm deep x 24 internal width x 31mm external width carbon wheels
– XCADEY S-Power crank and power meter
Weight: 7.6kg with bottle cages, computer mount, and pedals
Overall – the bike performs exceptionally well, and has fully met the design brief! I’ve done over 500km, with a mix of climbs, cafe rides, and a criterium race. It’s a shame I can’t put a photo in, as the bike looks very cool 😎.
Frame Pros:
– Good value for a high performance frame, with an integrated bar and stem
– Well packaged and protected for shipping, and fast 7-day delivery time
– Free bidons from Panda Podium!
– Excellent computer mount, with a variety adaptors (Garmin and Wahoo), with removable GoPro/light mounting adaptor
– Direct mount and standard rear derailleur hangers
– Token thread together BB86 bottom bracket bearing
Issues:
– Stack Height: they only give you 20mm of spacers for the steerer and if you want more stack, you will need a bigger frame.
– Brake Hose Liner: The bike does not come with foam liner for the rear brake hose to go through the frame, and it will bang around if you don’t supply your own.
– Steerer Tube Plug: Everything Peak Torque said about this is true, it was a pain to install and I hope I don’t have to remove it EVER!
– Handlebar Guides: Perhaps because I ordered the 36cm wide x 130mm long combination, that it was hard, but the brake hoses were very difficult to thread through and did not have guides
I had a professional bike builder do the assembly for me, so they had the tools and experience to make this happen despite the issues encountered. Unlike Jesse (Nero Show) and Peak Torque, there were no issues with the bottom bracket fitting.
