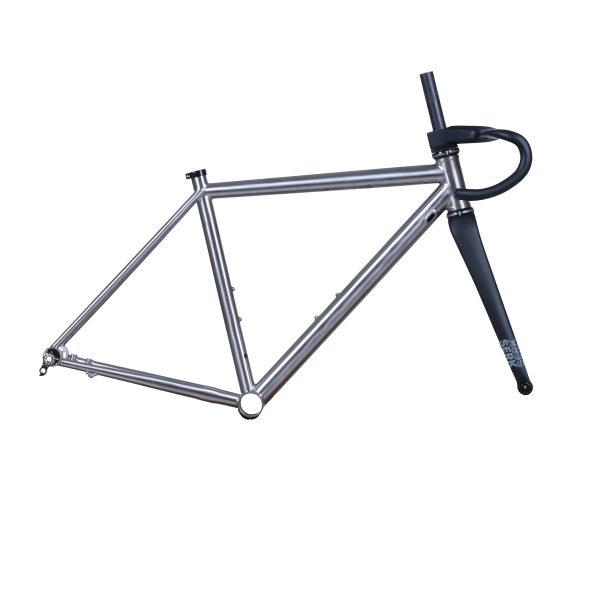

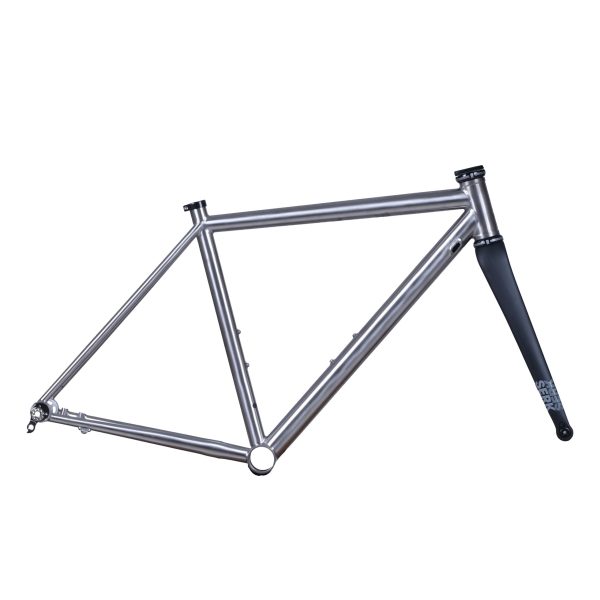

Serk A30M “The Captain Integrated” Titanium All-Road Frameset
$3,338.00 – $3,938.00
We took the A30 our best selling bike and pushed it one step further – the A30[M].
[M]inus – the cables for a cleaner clutter free look
[M]inimal – one piece cockpit
[M]odular – choose the aero integrated option or go with external cables – the choice is yours.
- Description
- Additional information
- Brand
- Reviews (0)
Description
We took the A30 our best selling bike and pushed it one step further – the A30[M].
[M]inus – the cables for a cleaner clutter free look
[M]inimal – one piece cockpit
[M]odular – choose the aero integrated option or go with external cables – the choice is yours.
Titanium 3Al/2.5V frame / Carbon fork
Clearance for 35mm tyres
T47 bottom bracket shell
Di2 compatible
Fast road geometry
Bridgeless seatstays
Integrated front end cabling
Fork weight: 420g
Seatpost weight: 227g
Frame weight:
| A30M Frame | XS | 1630 |
| A30M Frame | S | 1690 |
| A30M Frame | M | 1730 |
| A30M Frame | L | 1800 |
| A30M Frame | XL | 1860 |
| A30M Frame | XXL | 1930 |
Geometry is optimized for 28mm tyres but the frame and fork can accomodate tyres up to 35mm putting the bike into the ‘all-road’ category and ready to take on adventure.
GEOMETRY
| XS | S | M | L | XL | XXL | ||
|---|---|---|---|---|---|---|---|
REACH |
366 | 374 | 382 | 390 | 398 | 406 | |
STACK |
506 | 529 | 552 | 575 | 598 | 398 | |
* |
ADDITIONAL TOP HEADSET STACK |
28.5 | 28.5 | 28.5 | 28.5 | 28.5 | 28.5 |
A |
SEAT TUBE LENGTH |
470 | 490 | 510 | 530 | 550 | 580 |
B |
TOP TUBE LENGTH |
506 | 526 | 546 | 566 | 587 | 602 |
C |
HEAD TUBE LENGTH |
93 | 109 | 132 | 154 | 176 | 202 |
D |
SEAT TUBE ANGLE |
74.5 | 74 | 73.5 | 73 | 72.5 | 72.5 |
E |
HEAD TUBE ANGLE |
70.5 | 72 | 72.5 | 73 | 73.5 | 73.5 |
F |
BB DROP |
73 | 73 | 73 | 73 | 73 | 73 |
G |
CHAINSTAY LENGTH |
420 | 420 | 420 | 420 | 420 | 420 |
H |
WHEELBASE |
986 | 981 | 992 | 1002 | 1012 | 1027 |
I |
FORK OFFSET |
50 | 43 | 43 | 43 | 43 | 398 |
J |
TRAIL (28C) |
67 | 64.9 | 61.8 | 58.7 | 55.6 | 55.6 |
Additional information
| Frame Size | XS, S, M, L, XL, XXL |
|---|---|
| Frame Finish | Custom Paint ($500.00), Raw Ti |
| Seatpost | Carbon Seatpost ($100.00), Not Included |
Brand
SERK
| Brand Name: Serk | Chinese Company Name: 北京速旷文化传播有限公司 |
| Founded: 2011 | # of Employees: - |
| Headquarters: Beijing | Products Categories: Complete Bikes, Framesets |
