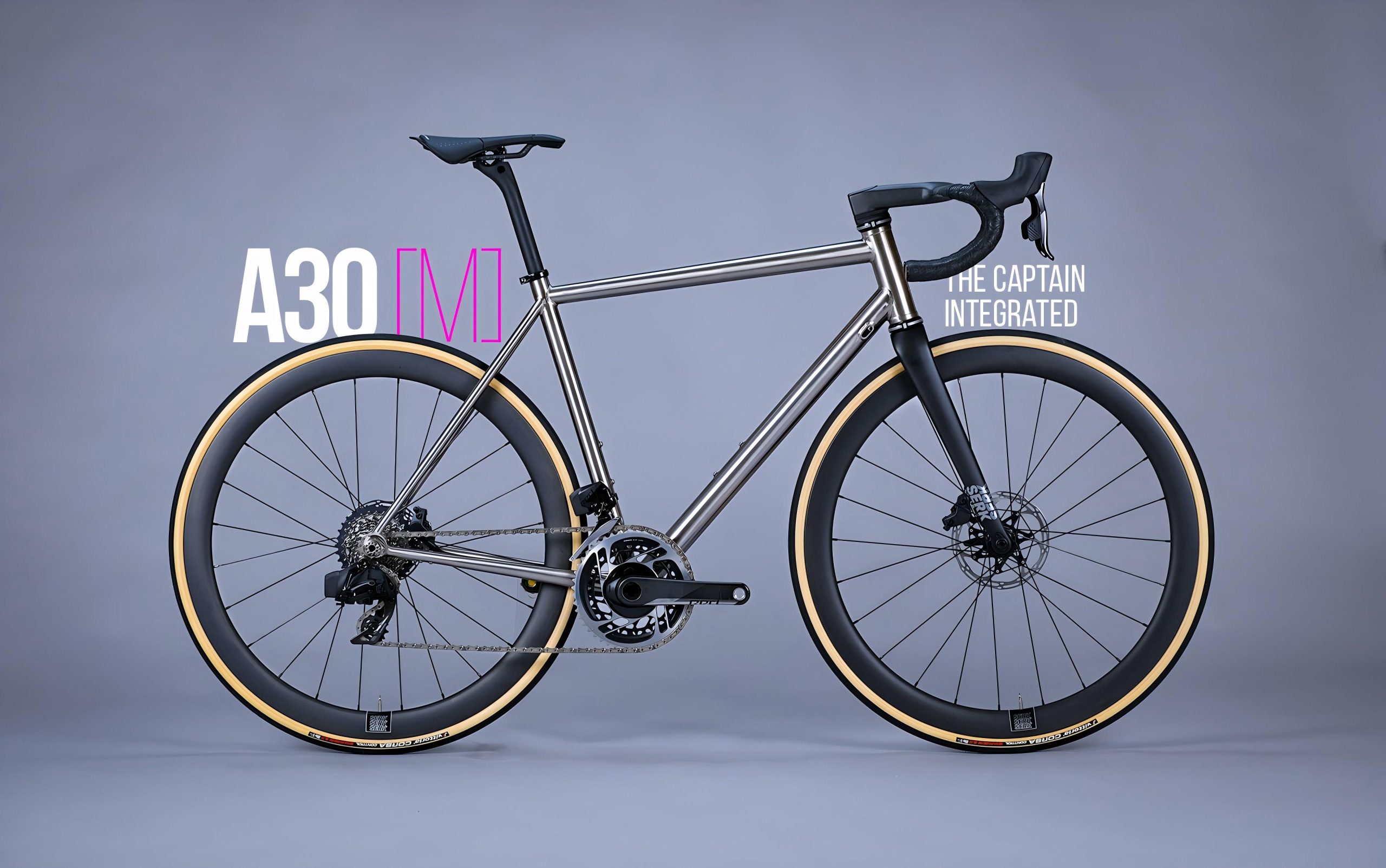

Serk A30M “The Captain Integrated” Titanium All-Road Bike Frameset
$3,338.00 – $3,938.00
We took the A30 our best selling bike and pushed it one step further – the A30[M].

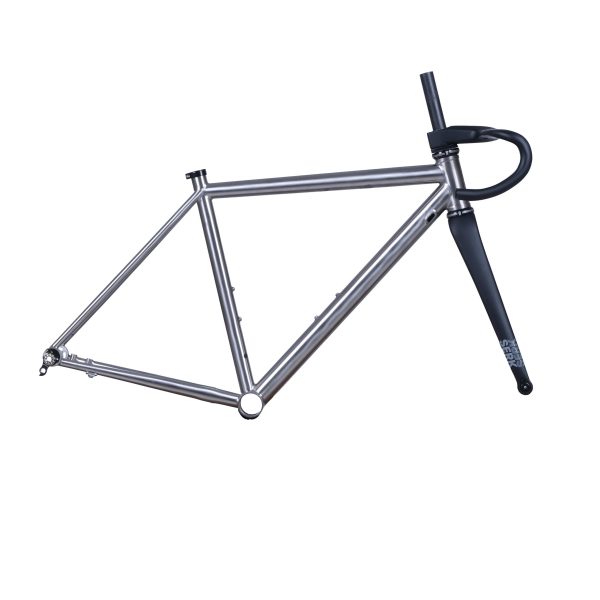

- Titanium 3Al/2.5V frame / Carbon fork
- EXS integrated Handlebar
- Clearance for 35mm tyres
- T47 bottom bracket shell
- Di2 compatible
- Fast road geometry
- Bridgeless seatstays
- Integrated front end cabling
Customer Review
Just received it and built it up... absolutely love this frame. Extremely high quality, no issues at all. Panda Podium support was phenomenal... they worked with me to replace the integrated cockp... keep reading
What Customers Think
- Description
- Additional information
- Brand
- Reviews (1)
Description
LIGHT & AERO COCKPIT
We reached out to up and coming Chinese carbon brand EXS to help us develop an integrated handlebar system. The result was a sleek finished product thats also light and aero.
ATTENTION TO DETAIL
We spend hours obessing over the small details. From the custom stem cap bolts to inspiring quotes on the thru-axles the design features will impress those with an eye for detail.
VERSATILE TYRE CLEARANCE
With clearance for up to 35mm this bike has tons of versatility. Fast road rides during the week on 28mm, swap out to 35mm for some adventurous exploring on the weekend.
Specifications
700c wheels
Fully integrated one-piece cockpit
Semi internal cable routing, Di2 compatible
Seatpost diameter 27.2mm
T47 bottom bracket (68mm shell width)
Max Chainring 53/39
700c x 35mm measured max tyre size
Headset EC44 upper, EC44 lower
100x12mm front dropout spacing
Thru axle M12xP1.5
142x12mm rear dropout spacing
Flat Mount 160mm Front and Rear (max 160mm rotor)
Fork : Serk Carbon Internal Cable All-Road 12x100mm
Handlebar : EXS Integrated carbon (Check stock with us before ordering)
Fork Weight: 420g
Frame Weight:
Size XS: 1630g ±5%
Size S: 1690g ±5%
Size M: 1730g ±5%
Size L: 1800g ±5%
Size XL: 1860g ±5%
Size XXL: 1930g ±5%
Geometry
Geometry is optimized for 28mm tyres but the frame and fork can accomodate tyres up to 35mm putting the bike into the 'all-road' category and ready to take on adventure.
| Size | XS | S | M | L | XL | XXL |
|---|---|---|---|---|---|---|
| REACH | 366 | 374 | 382 | 390 | 398 | 406 |
| STACK | 506 | 529 | 552 | 575 | 598 | 623 |
| ADDITIONAL TOP HEADSET STACK | 28.5 | 28.5 | 28.5 | 28.5 | 28.5 | 28.5 |
| SEAT TUBE LENGTH | 470 | 490 | 510 | 530 | 550 | 580 |
| TOP TUBE LENGTH | 506 | 526 | 546 | 566 | 587 | 602 |
| HEAD TUBE LENGTH | 93 | 109 | 132 | 154 | 176 | 202 |
| SEAT TUBE ANGLE | 74.5 | 74 | 73.5 | 73 | 72.5 | 72.5 |
| HEAD TUBE ANGLE | 70.5 | 72 | 72.5 | 73 | 73.5 | 73.5 |
| BB DROP | 73 | 73 | 73 | 73 | 73 | 73 |
| CHAINSTAY LENGTH | 420 | 420 | 420 | 420 | 420 | 420 |
| WHEELBASE | 986 | 981 | 992 | 1002 | 1012 | 1027 |
| FORK OFFSET | 50 | 43 | 43 | 43 | 43 | 43 |
| TRAIL(28C) | 67 | 64.9 | 61.8 | 58.7 | 55.6 | 55.6 |
Template (Multi-Cam is only applicable to A21, the other 3 templates can be used for any SERK model)
Discover more custom paint options in Colour Map.
Additional information
| Frame Size | XS, S, M, L, XL, XXL |
|---|---|
| Frame Finish | Custom Paint ($500.00), Raw Ti |
| Seatpost | Carbon Seatpost ($100.00), Not Included |
Brand
SERK
| Brand Name: Serk | Chinese Company Name: 北京速旷文化传播有限公司 |
| Founded: 2011 | # of Employees: - |
| Headquarters: Beijing | Products Categories: Complete Bikes, Framesets |
1 review for Serk A30M “The Captain Integrated” Titanium All-Road Bike Frameset
Add a review
You must be logged in to post a review.
mitchl (verified owner) –
Just received it and built it up… absolutely love this frame. Extremely high quality, no issues at all.
Panda Podium support was phenomenal… they worked with me to replace the integrated cockpit to something else that was a better fit. The answered all my questions with in-depth knowledgeable answers including pictures, etc. For example, I asked them about the finish of the frame, and they sent me a picture of the actual frame from the warehouse.
The shipping was very quick, which was a concern for me since it is shipping from Xiamen. I think it took about a week from finalizing the order and answering my questions, to me receiving the frame.
BONUS: they included PP water bottles 😀
Joe and team are doing a great job… the look behind the brand videos are what inspired me to look at this Serk frame in more depth. Was previously looking at No. 22, J Guillen, and a few other Ti manufacturers, but IMO, this frame is as high quality but at a much better value.
