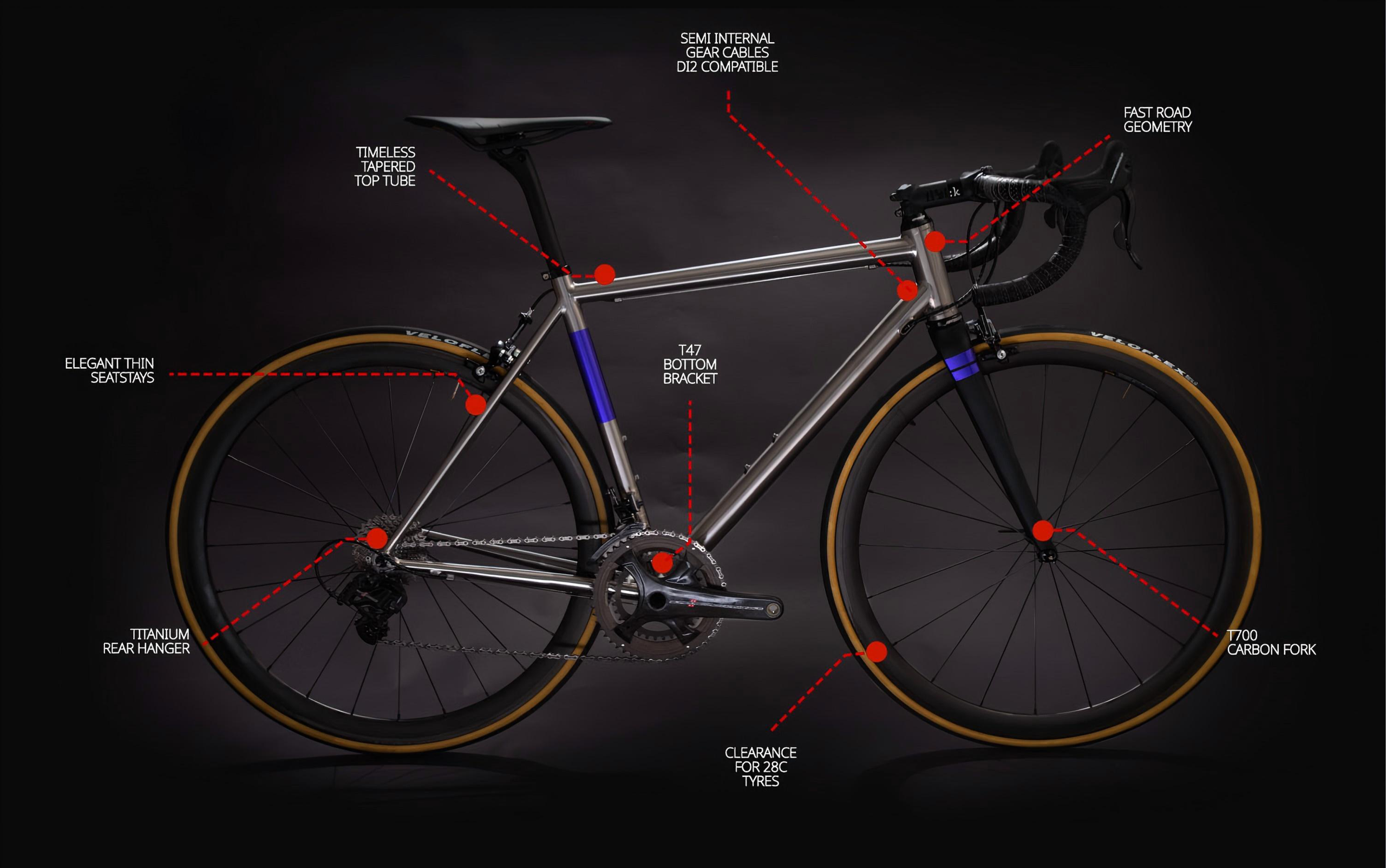

Serk A10 “The Purist” Titanium Road Bike Frameset
$2,426.00 – $3,026.00
- Titanium 3Al/2.5V
- Rim Brake / Quick Release
- Clearance for 30mm measured tyres
- Di2 Compatible
- T47 BB 68mm
- Fork : Serk Carbon Road
Includes Serk Headset 40 Semi-integrated, seatpost clamp
- Description
- Additional information
- Brand
- Reviews (0)
Description
Frame Geometry
| Size | XS | S | M | L | XL | |
|---|---|---|---|---|---|---|
| Reach | 364 | 372 | 381 | 390 | 398 | |
| Stack | 509 | 531 | 552 | 573 | 594 | |
| A | SEAT TUBE LENGTH (mm) | 470 | 490 | 510 | 530 | 550 |
| B | TOP TUBE LENGTH (mm) | 505 | 524 | 545 | 565 | 585 |
| C | HEAD TUBE LENGTH | 92 | 112 | 132 | 152 | 172 |
| D | SEAT TUBE ANGLE | 74.5 | 74 | 73.5 | 73 | 72.5 |
| E | HEAD TUBE ANGLE | 70.5 | 71.5 | 72 | 72.5 | 73 |
| F | BB DROP | 70 | 70 | 70 | 70 | 70 |
| G | CHAINSTAY LENGTH | 410 | 410 | 410 | 410 | 410 |
| H | WHEELBASE | 971 | 978 | 989 | 1000 | 1009 |
| I | FORK OFFSET | 45 | 45 | 45 | 45 | 45 |
| J | TRAIL | 71.2 | 65 | 61.9 | 58.8 | 55.7 |
Specifications
700c wheels
Internal cable routing, Di2 compatible
Seatpost diameter 27.2mm
T47 bottom bracket (68mm shell width)
Min Chainring 48/32
Max Chainring 53/39
700c x 30mm measured
Headset ZS44 upper, EC44 lower
Fork Weight: 360g
Size XS: 1540 ±5%
Size S: 1610g ±5%
Size M: 1690g ±5%
Size L: 1770g ±5%
Size XL: 1820g ±5%
Template (Multi-Cam is only applicable to A21, the other 3 templates can be used for any SERK model)
Discover more custom paint options in Colour Map.
Additional information
| Frame Size | XS, S, M, L, XL, XXL |
|---|---|
| Frame Finish | Custom Paint ($500.00), Raw Ti |
| Seatpost | Carbon Seatpost ($100.00), Not Included |
Brand
SERK
| Brand Name: Serk | Chinese Company Name: 北京速旷文化传播有限公司 |
| Founded: 2011 | # of Employees: - |
| Headquarters: Beijing | Products Categories: Complete Bikes, Framesets |
