QUICK PRO ER:ONE AERO Road Bike FRAMESET
$1,999.00
- Race DNA: Lightweight, Stiff, Aero
- 840g±5% frame. 445g±5% fork (Size M, without paint & accessories)
- Aero optimized with wind-tunnel verified CFD model
- High Modulus Carbon Fiber (T1100 + M65)
- True Full Monocoque Production

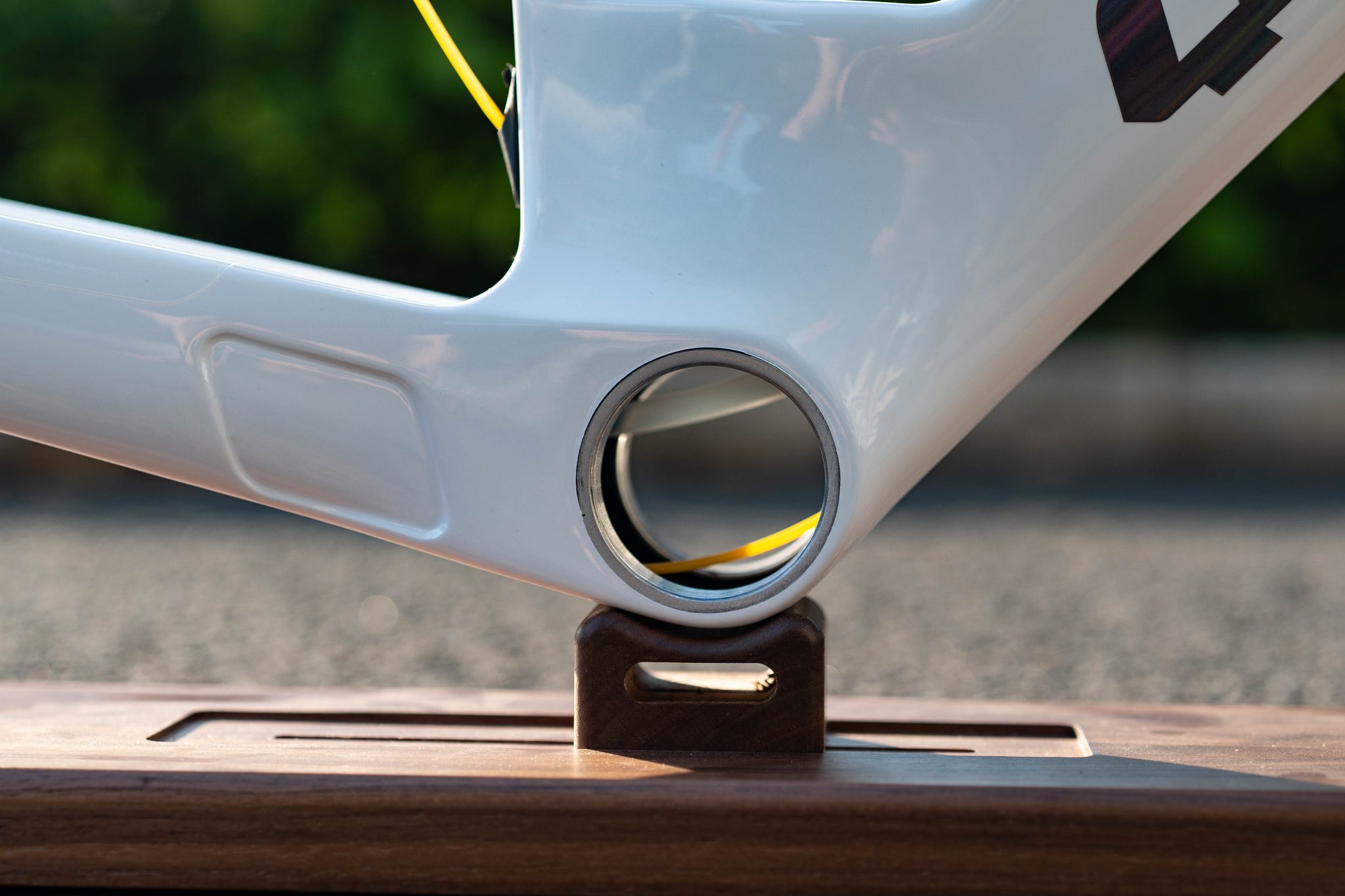

- T47 bottom bracket with 68mm shell width
- Max Tire: 700Cx32C
- Developed with direct feedback from our UCI Continental Team
- UCI Approved
Note: Some sizes of the ZEPHYR SSL Integrated Handlebar are out of stock, please contact us to check the stock status before placing order, thanks!
Due to increased demand for newly launched products, lead-time is around 10 days + shipping.
- Description
- Brand
- Reviews (0)
Description
Born to WIN
Raced for a Season
We continue to believe that racing is the ultimate testing and development ground for new products. The ER:ONE made it's debut with our team at the 2024 Tour of Hainan taking a stage win in it's very first race.
The ER:ONE was developed as a sister bike to the AR:ONE. The AR giving the team a more all-round option with the ER being focused purely on aero and sprint performance. Computational Fluid Dynamic analysis (CFD) was used to design a bike that can give the team an edge.
A sculpted, deep headtube allows the bike to slice through the air, while the widened fork keeps the fork blades away from the turbulent air of the front spokes improving the quality of airflow and reducing drag.
The AR and ER frames helped bring the team to over 10 UCI victories in the 2024 season.
Only after proving itself racing are we confident to bring the frame to retail.

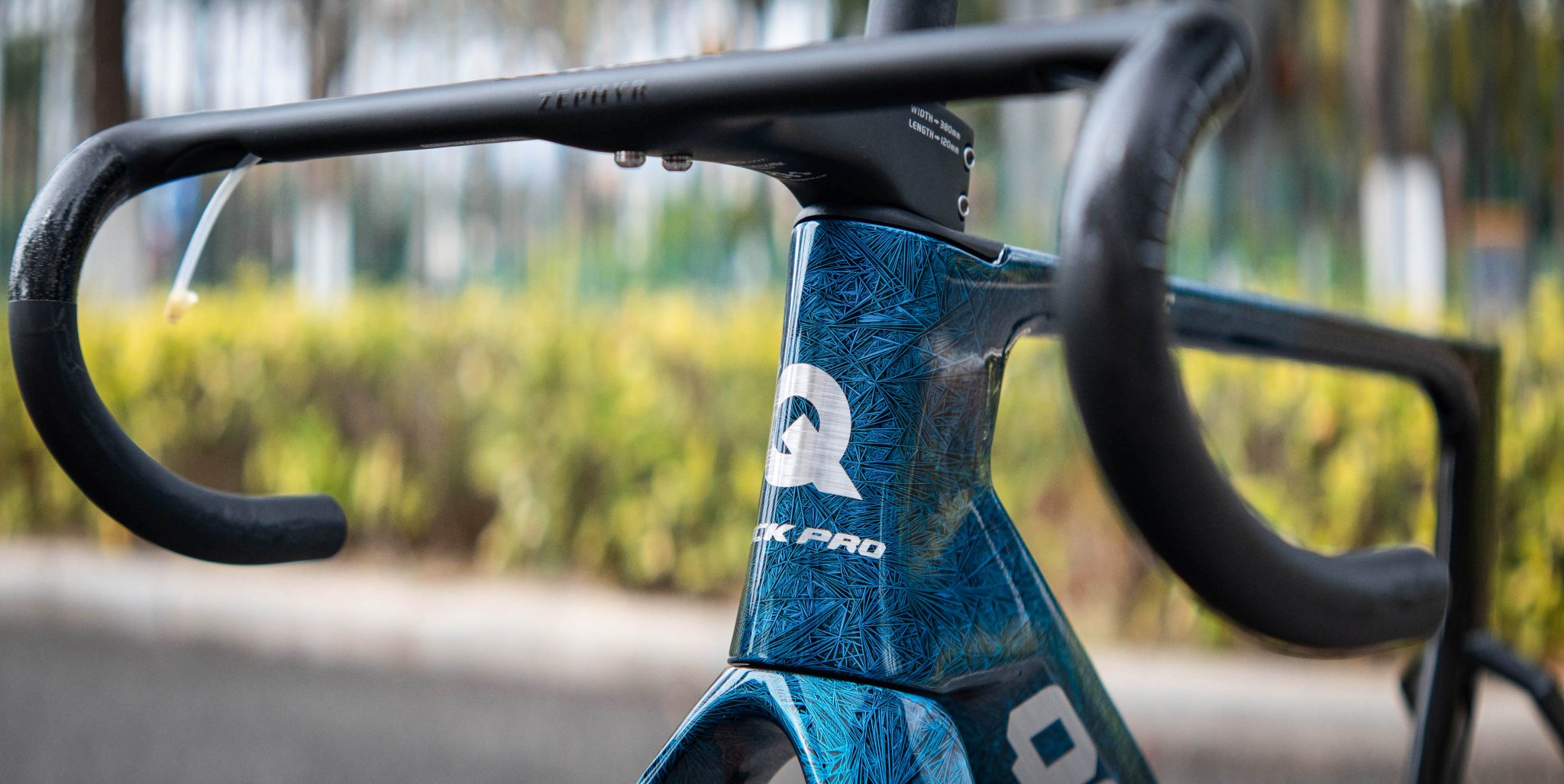

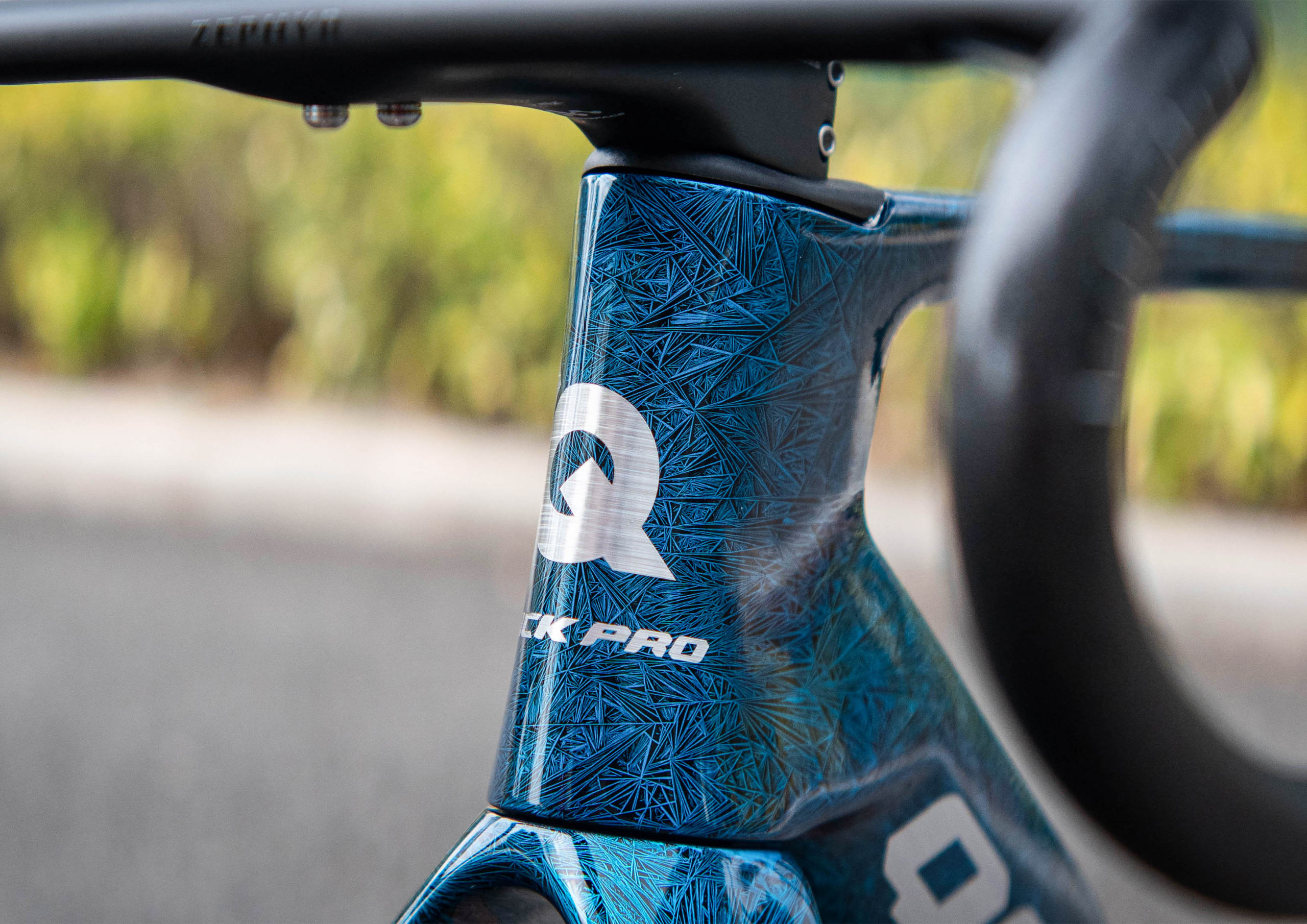

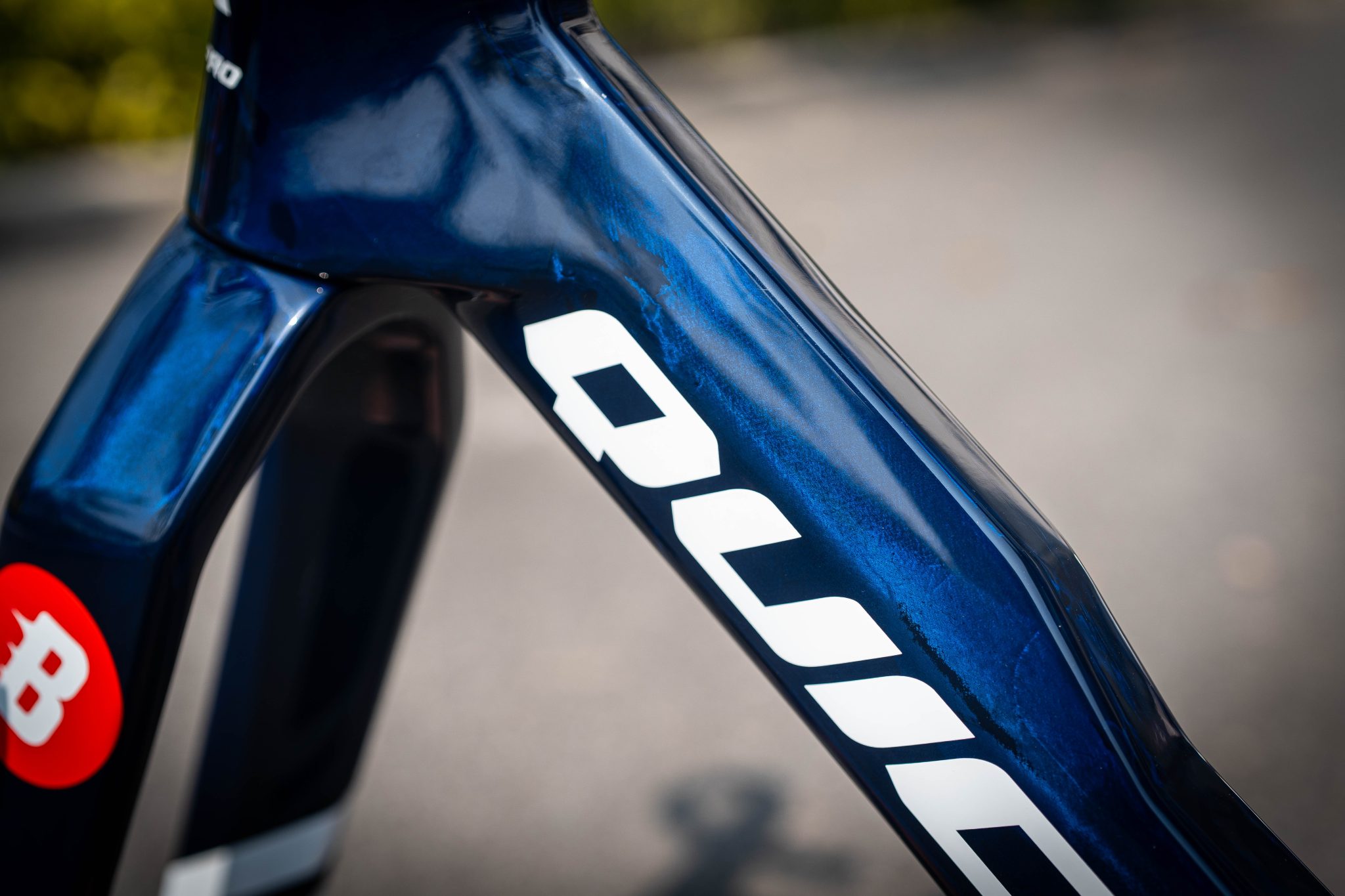

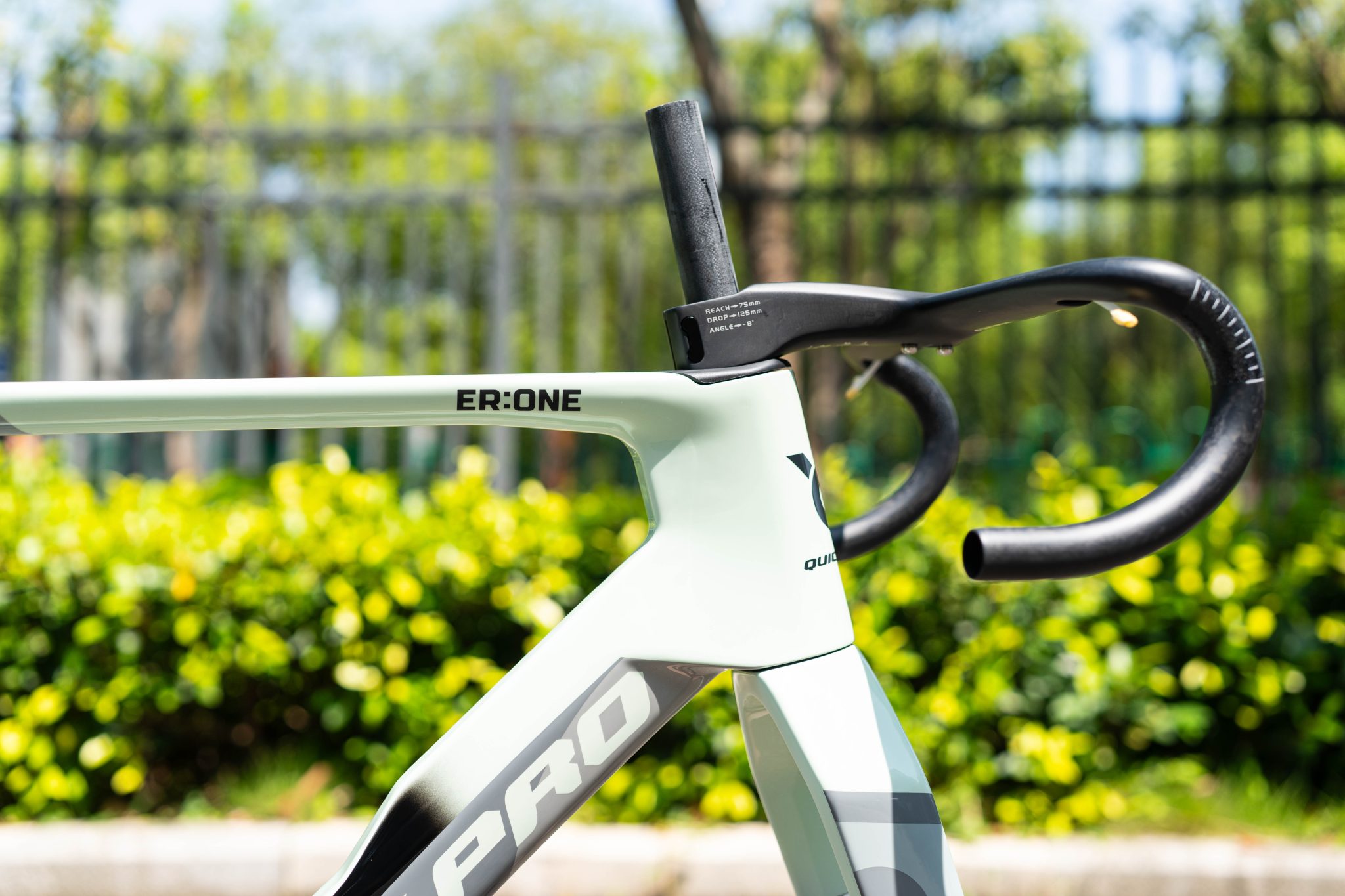

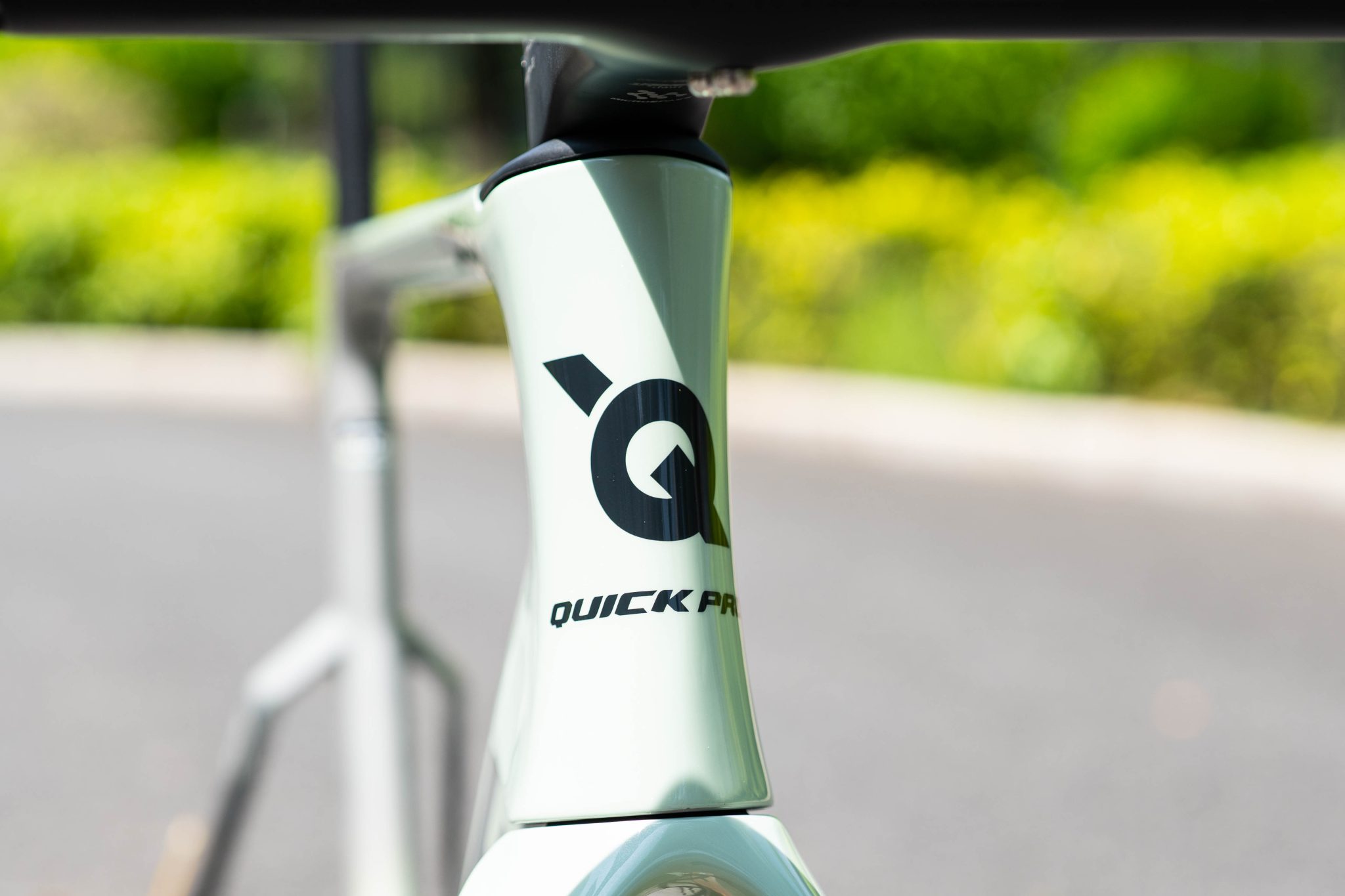

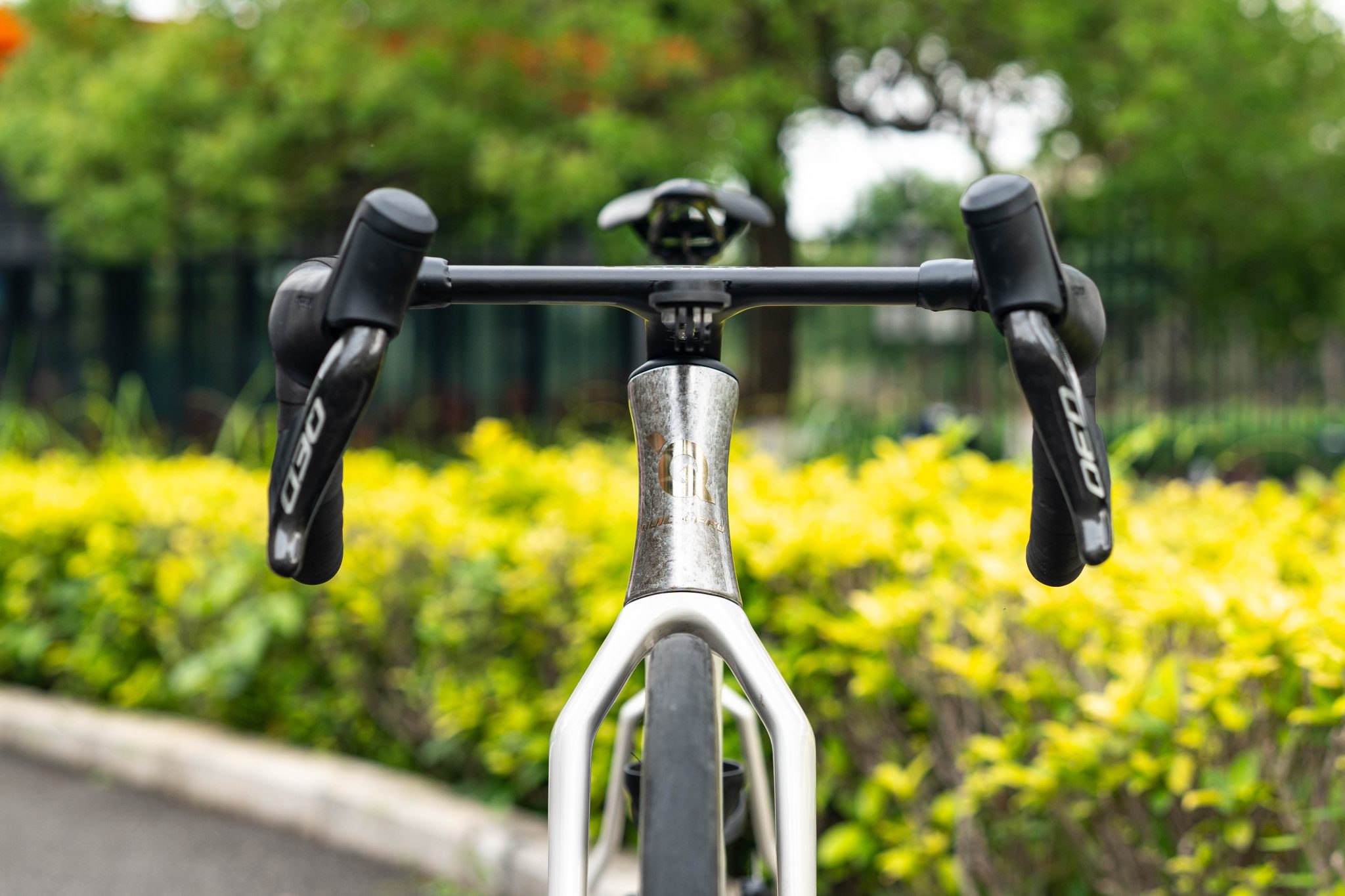

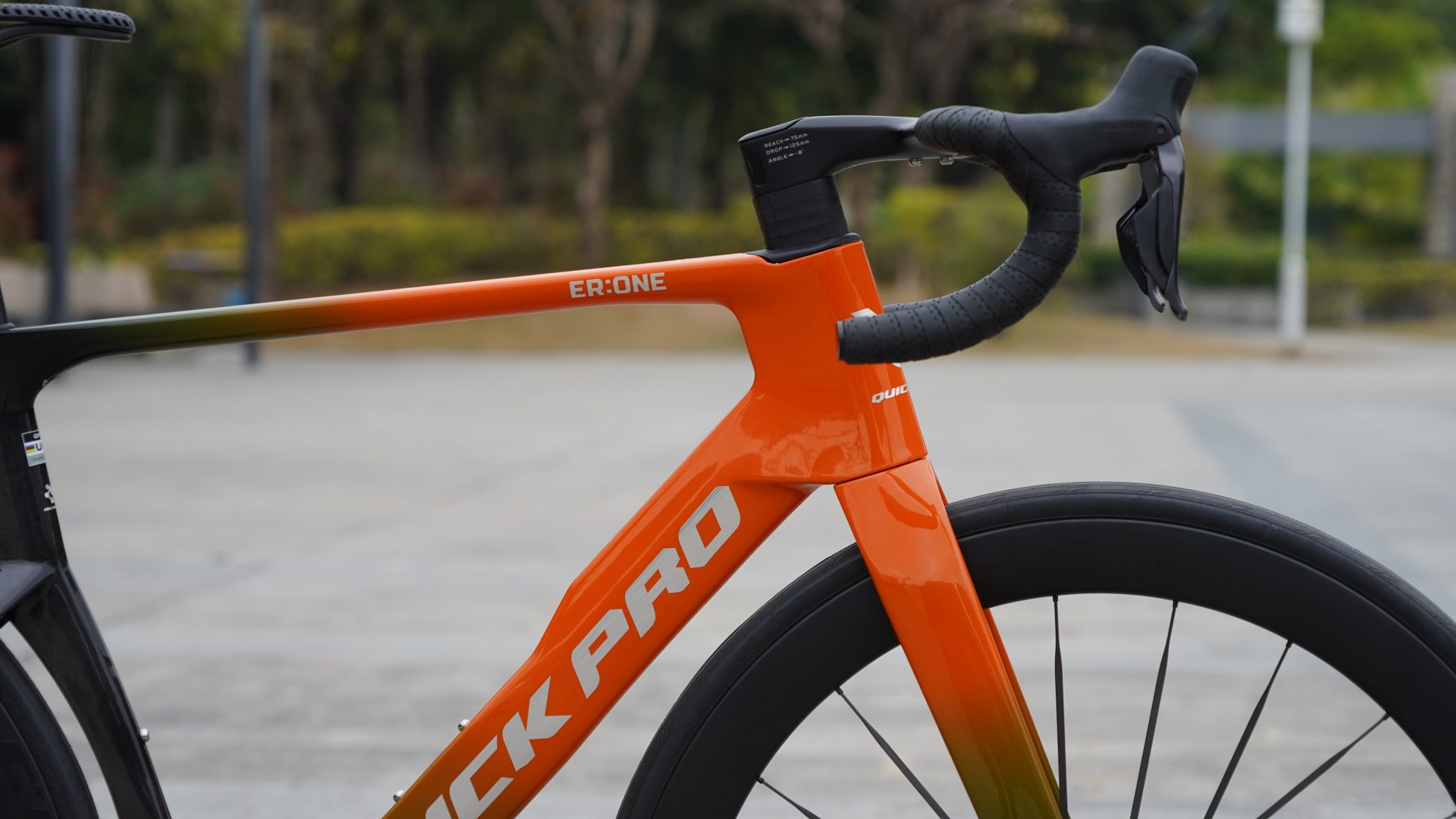

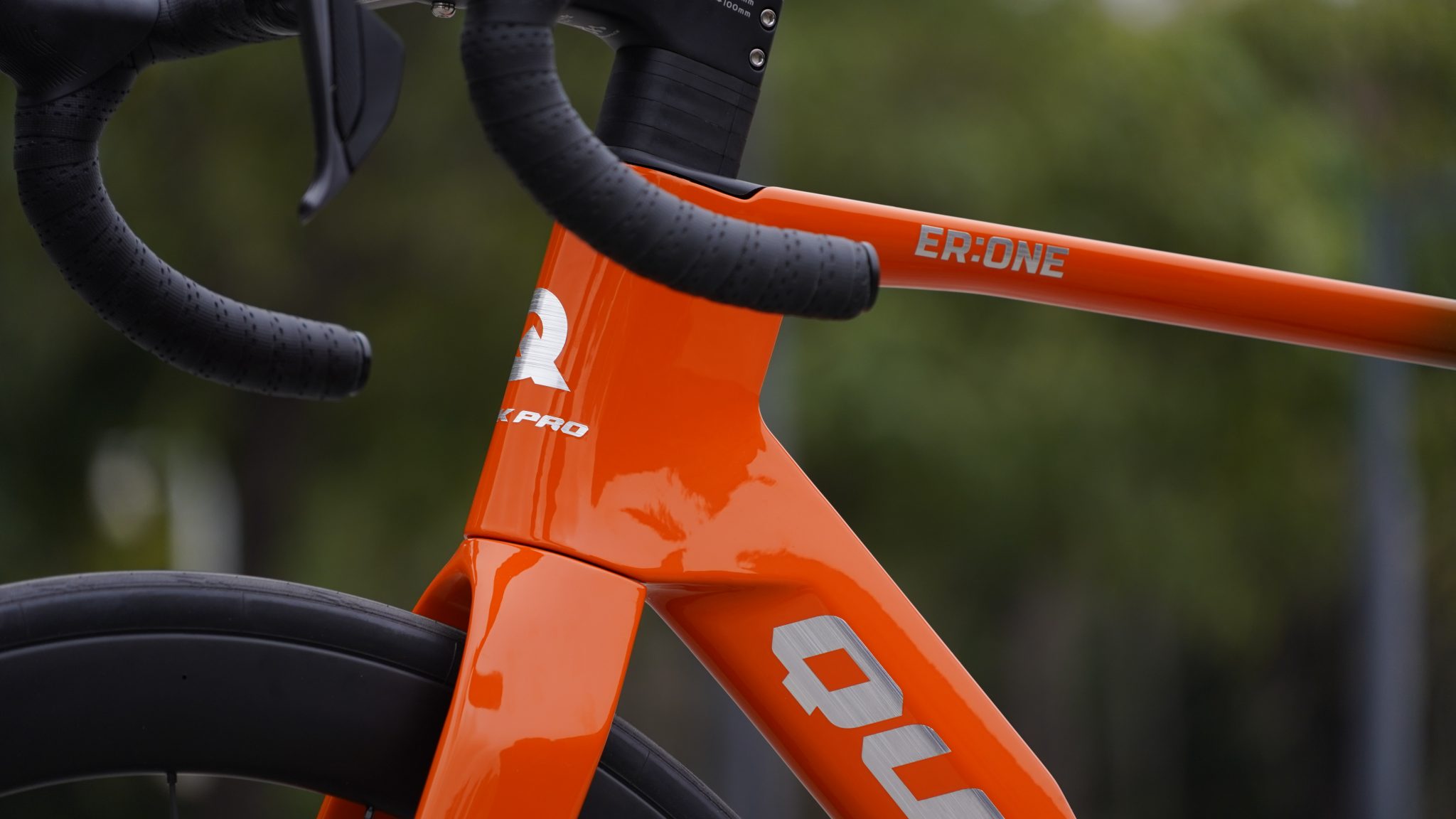

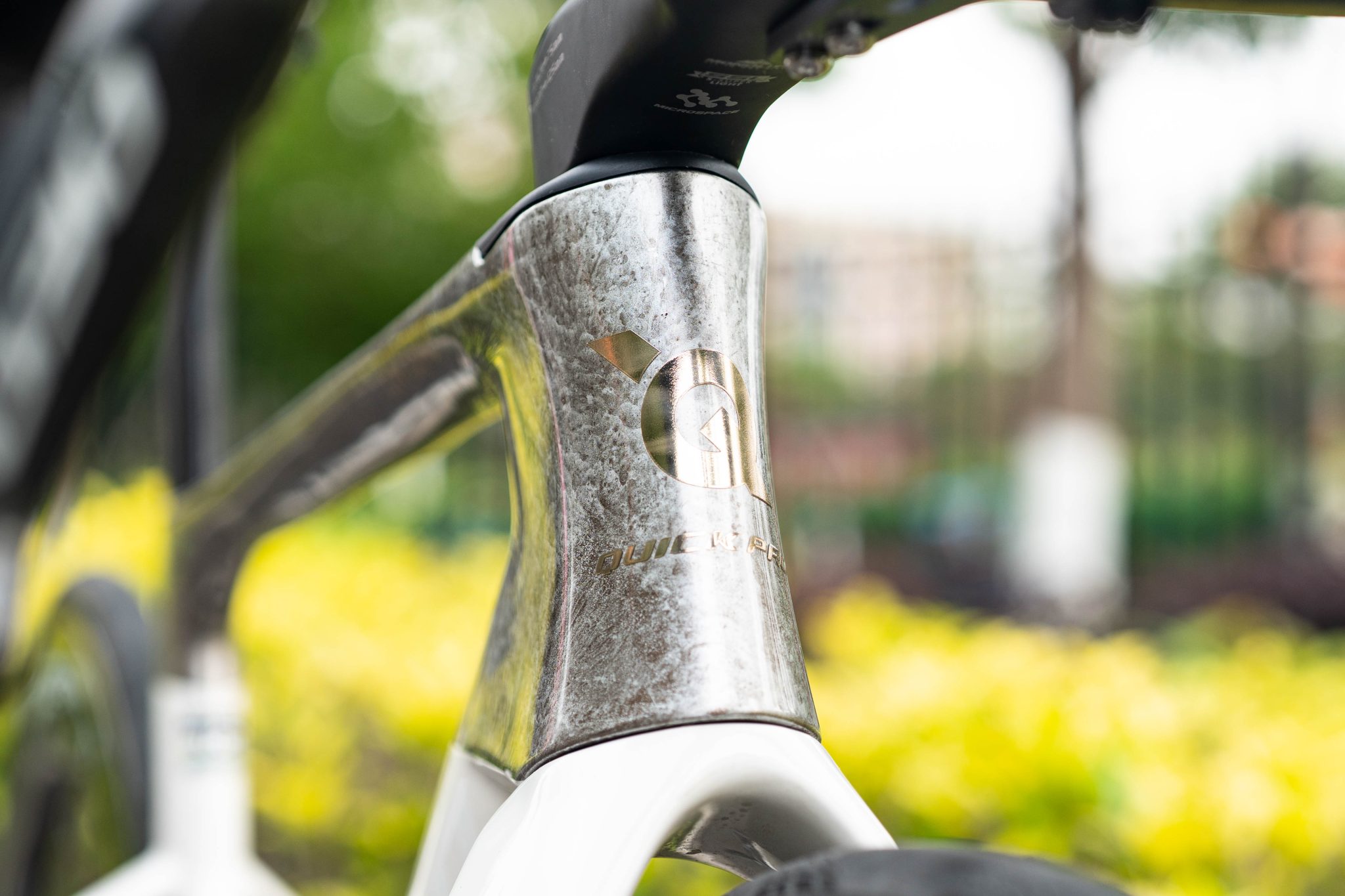

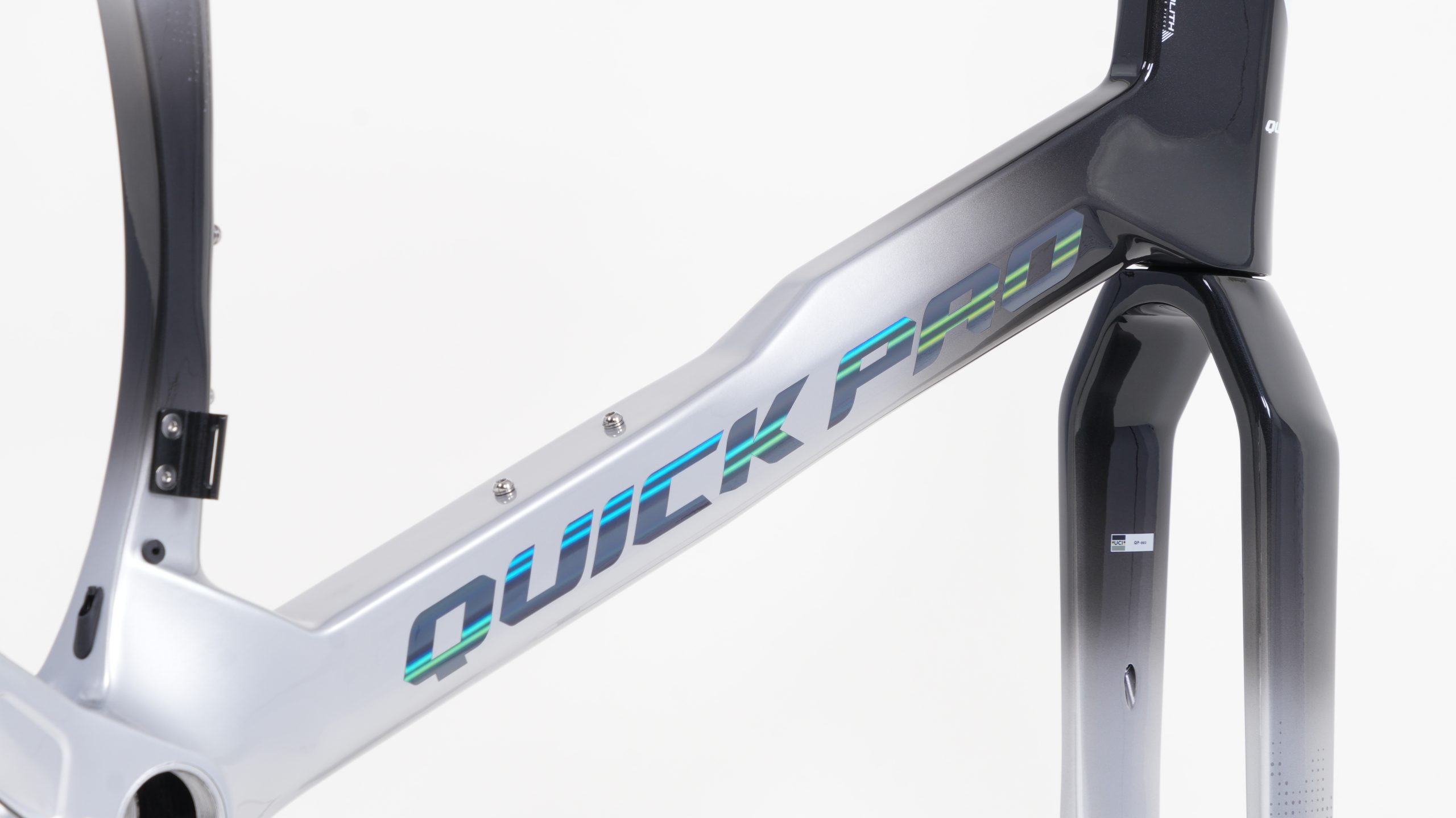

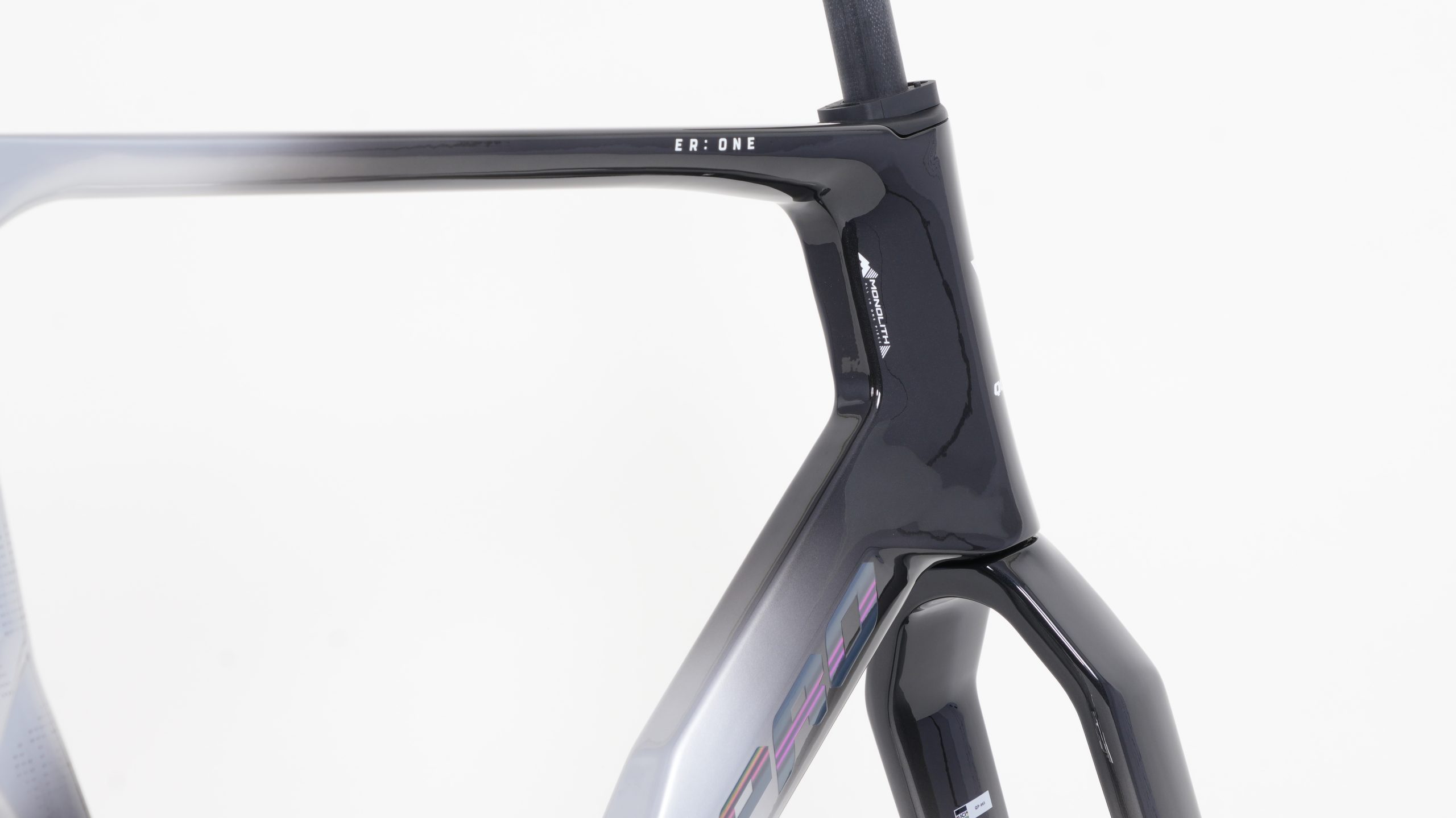

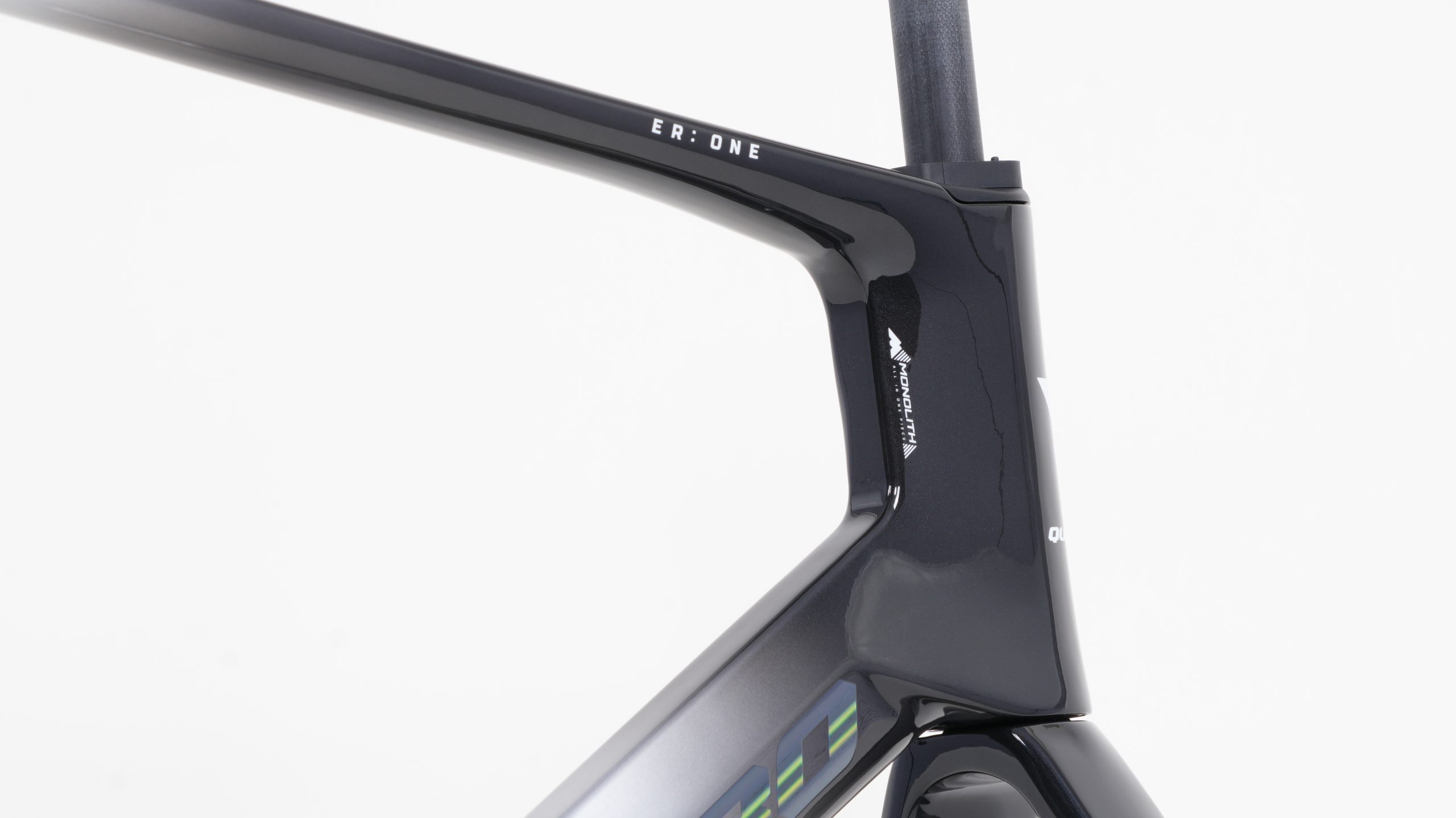

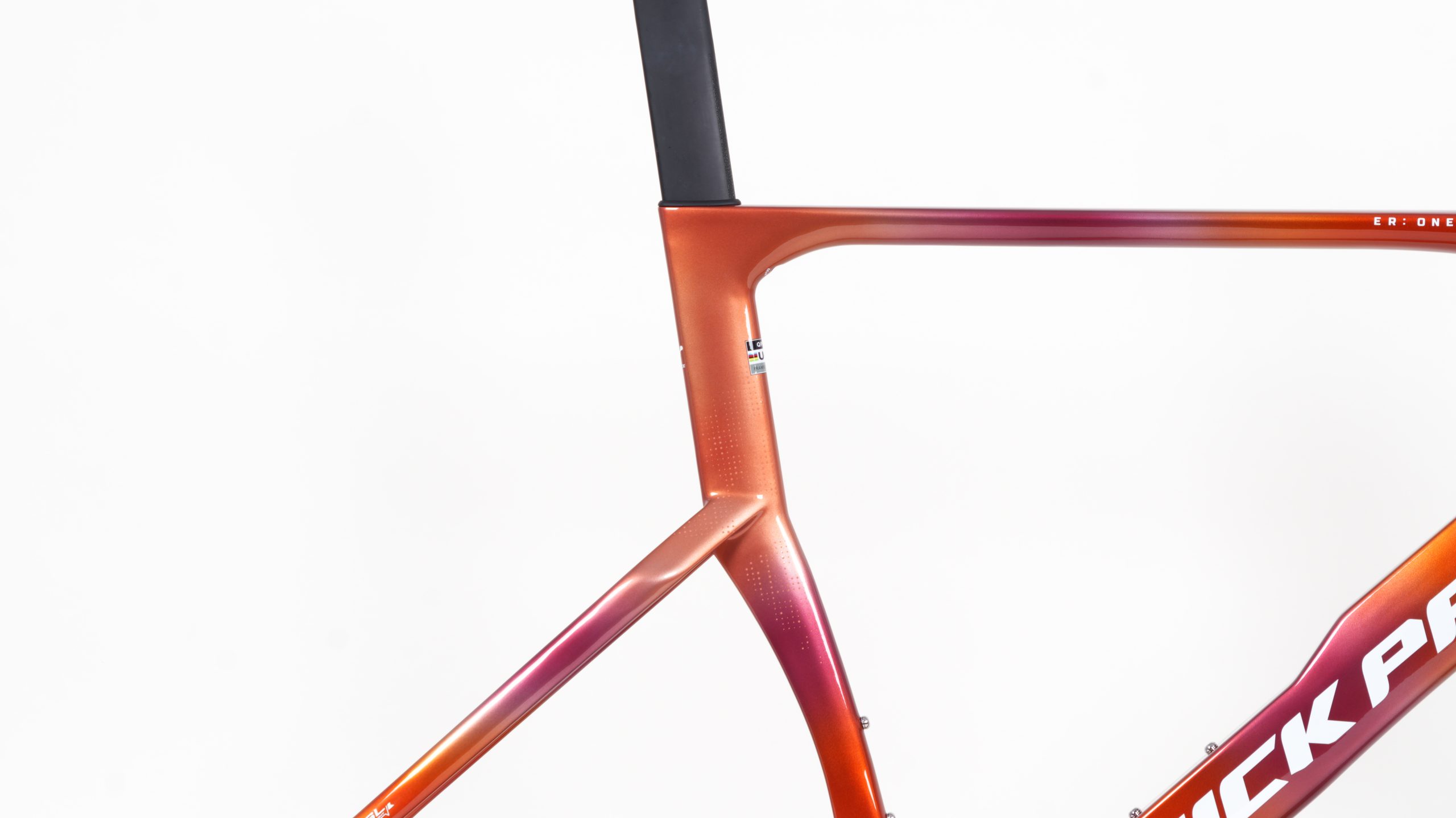

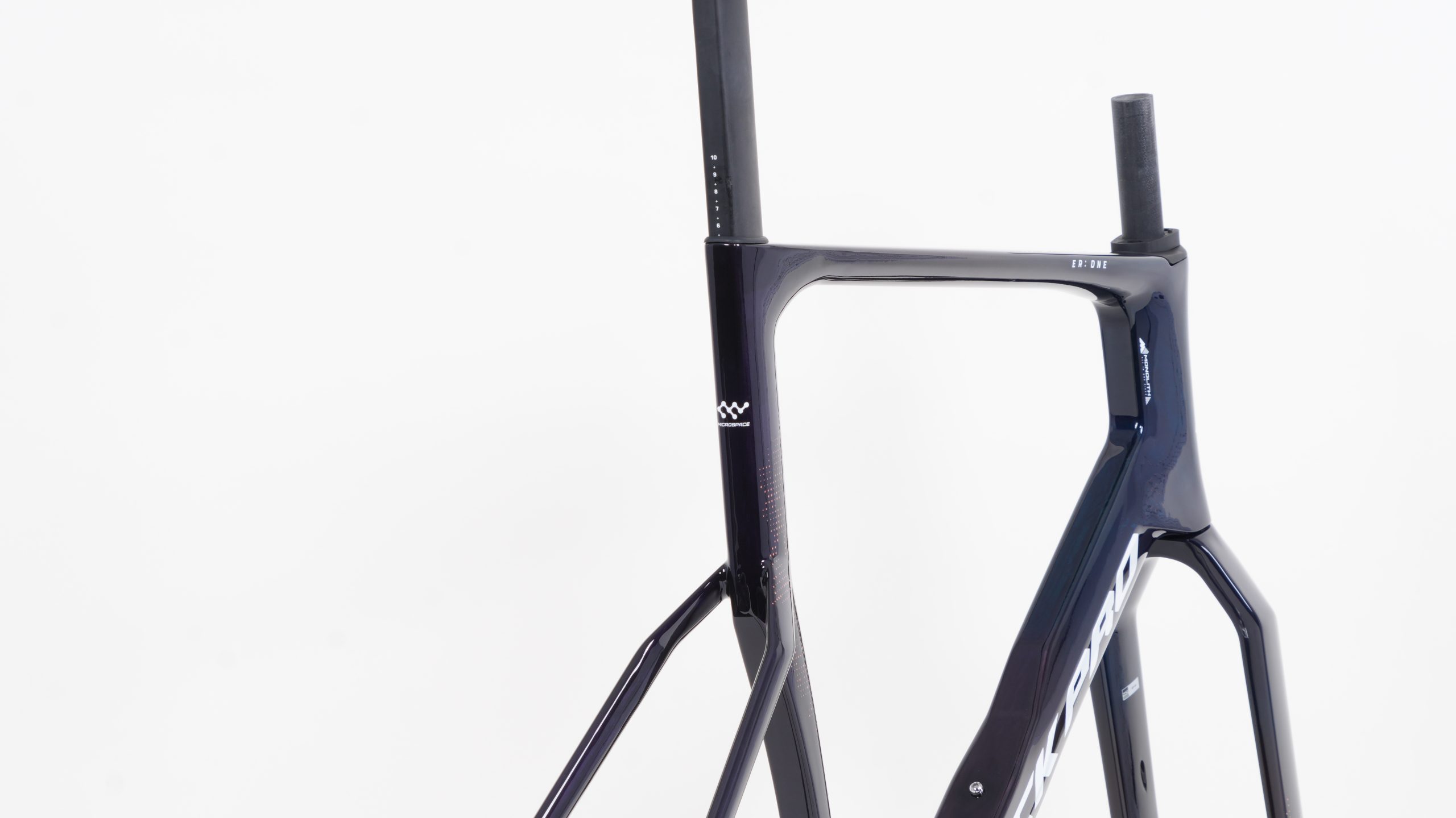

Clean and Aero Head Tube
The 52/52mm head tube on the ER:ONE features upper and lower bearing seats of 52mm to increase stiffness and allow easy integration of internal cable routing. The sculptured mid-section of the head tube works to minimize frontal area while retaining stiffness.

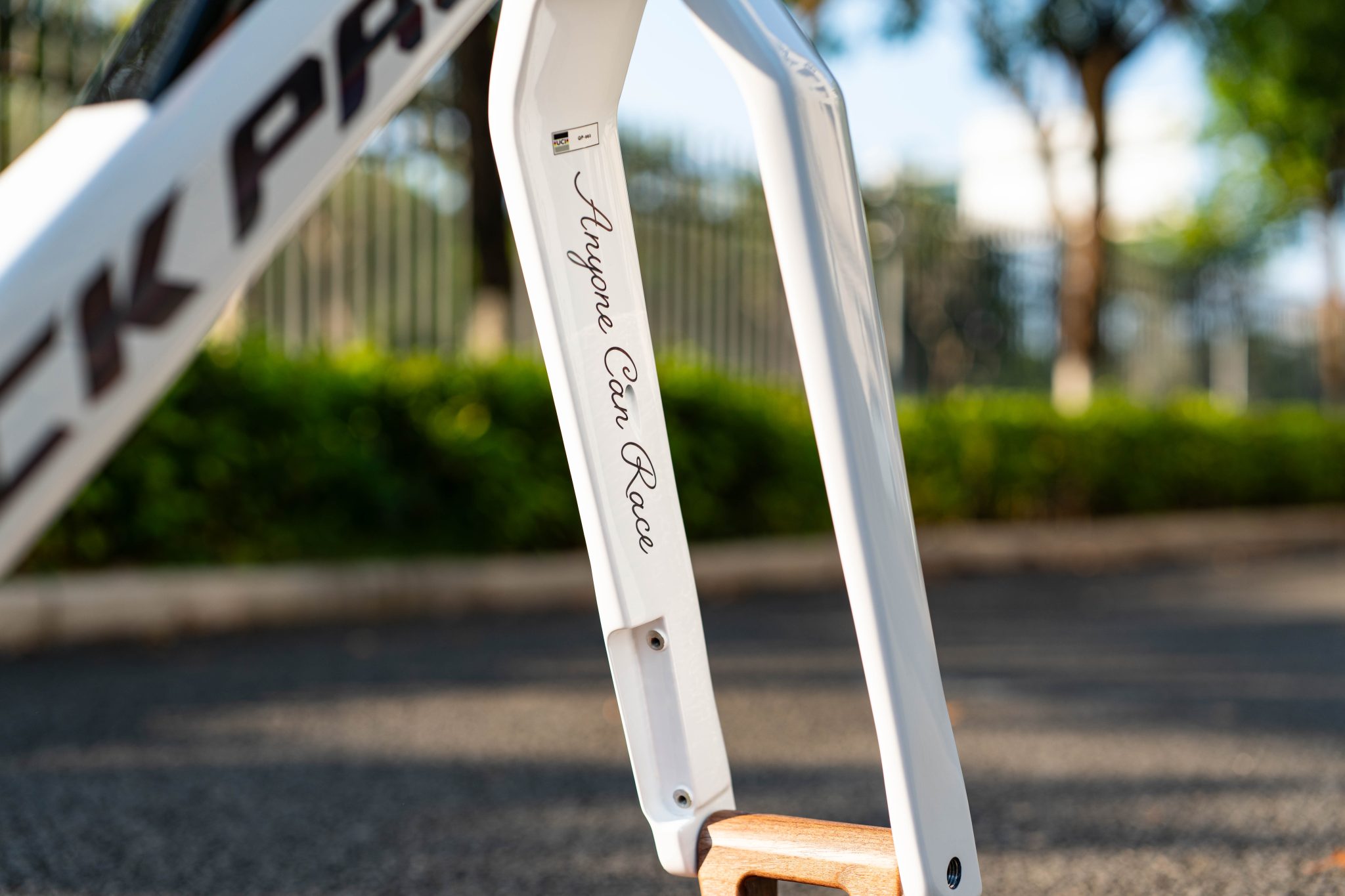

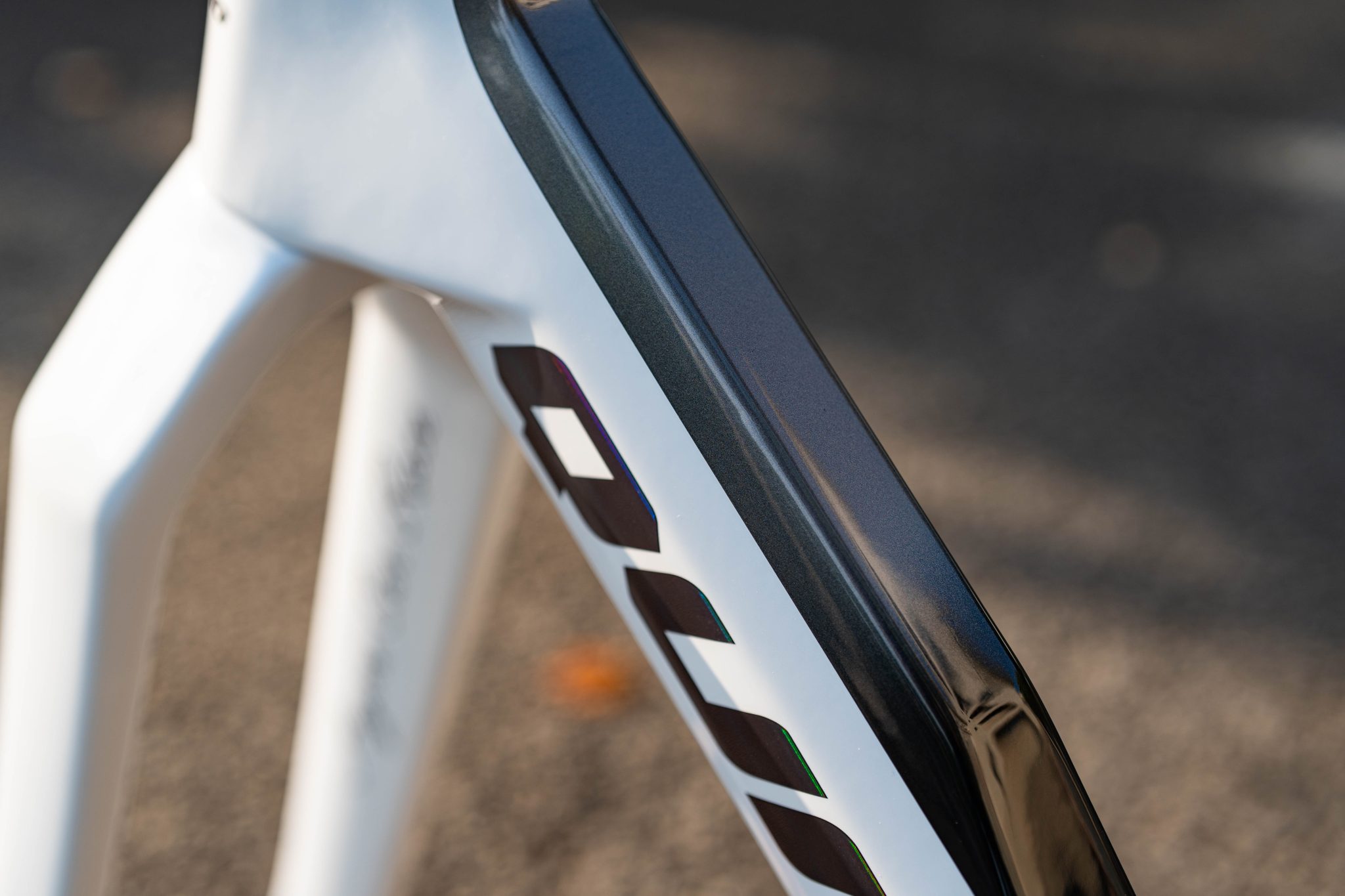

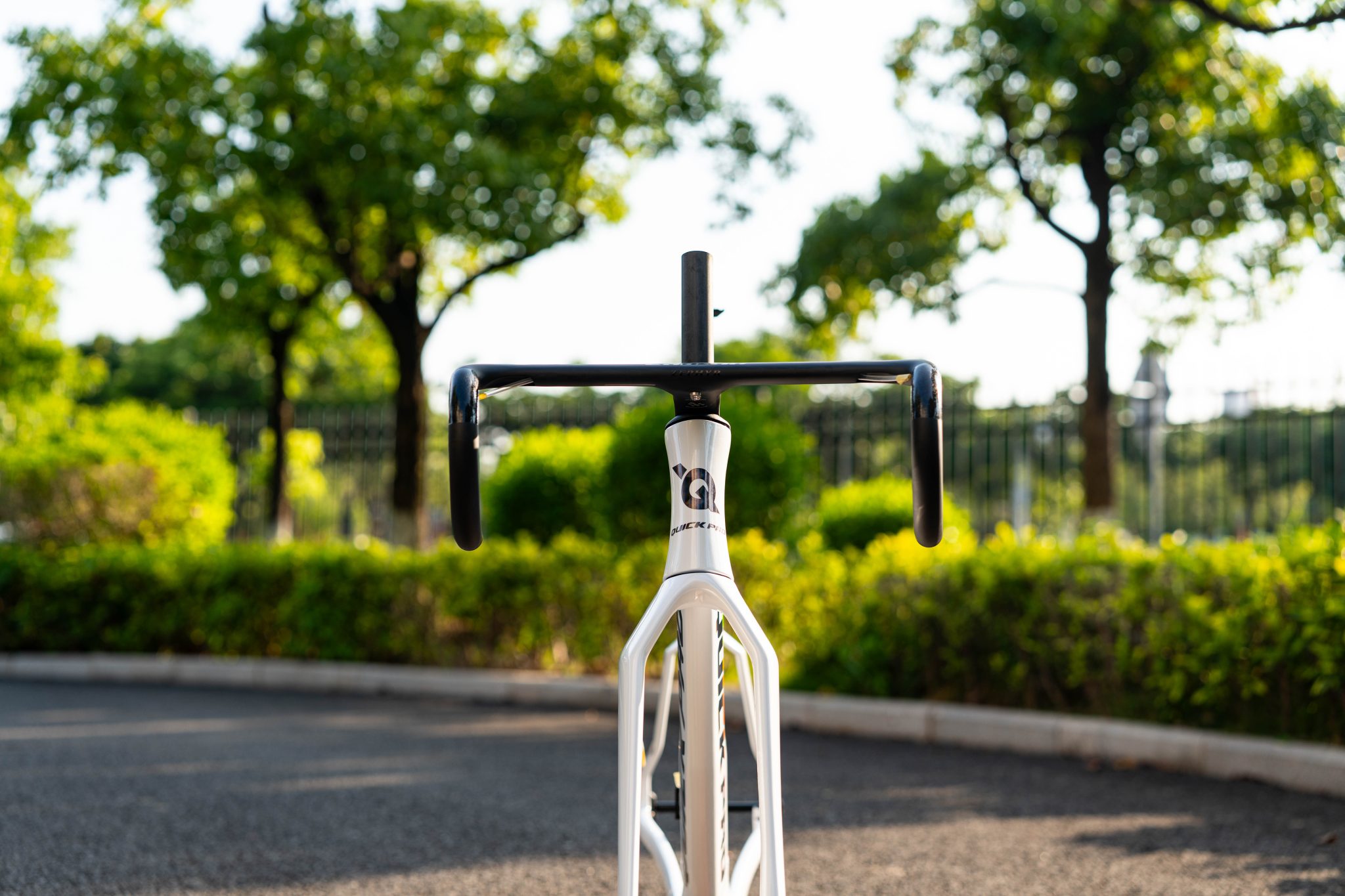

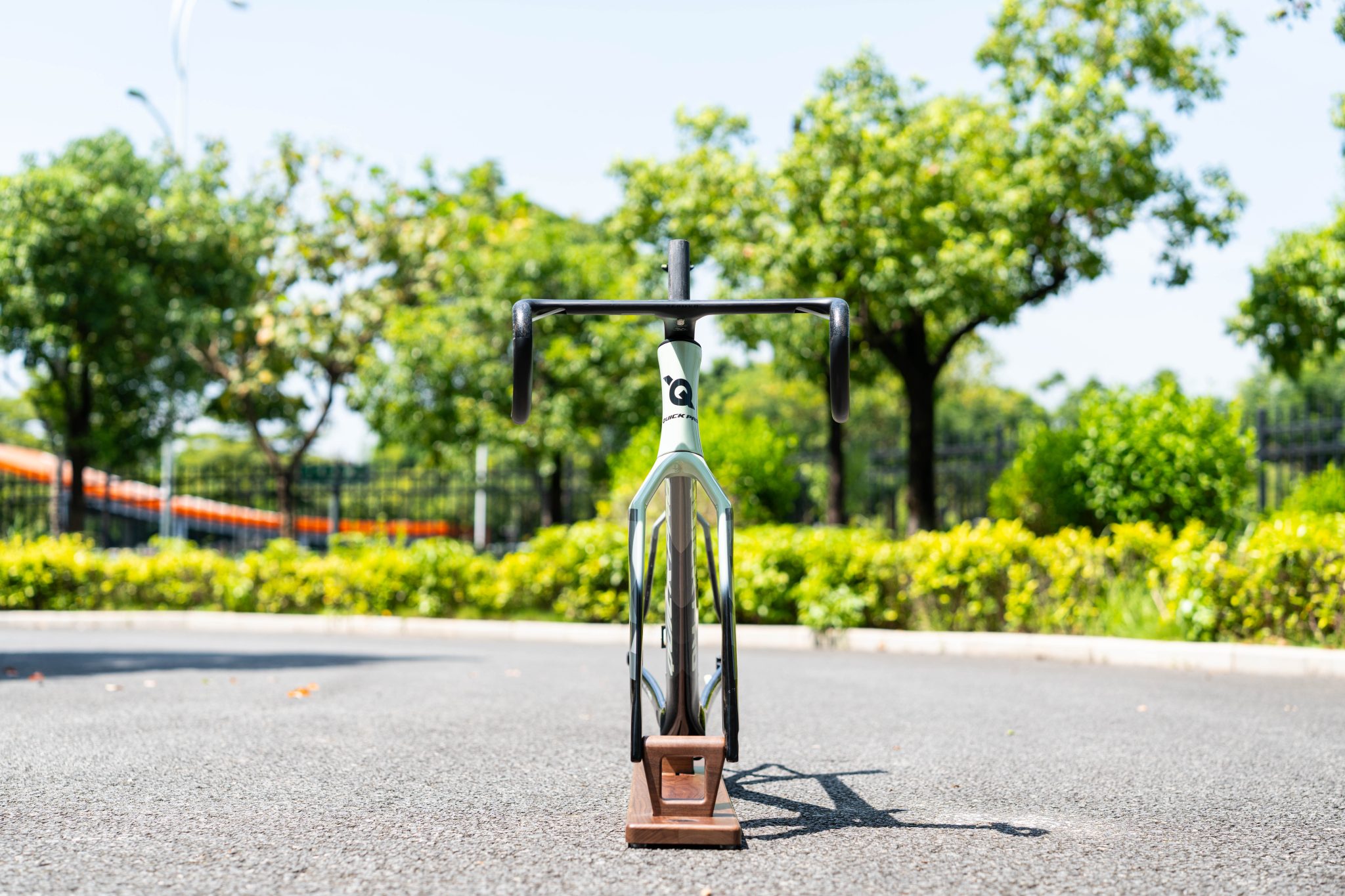

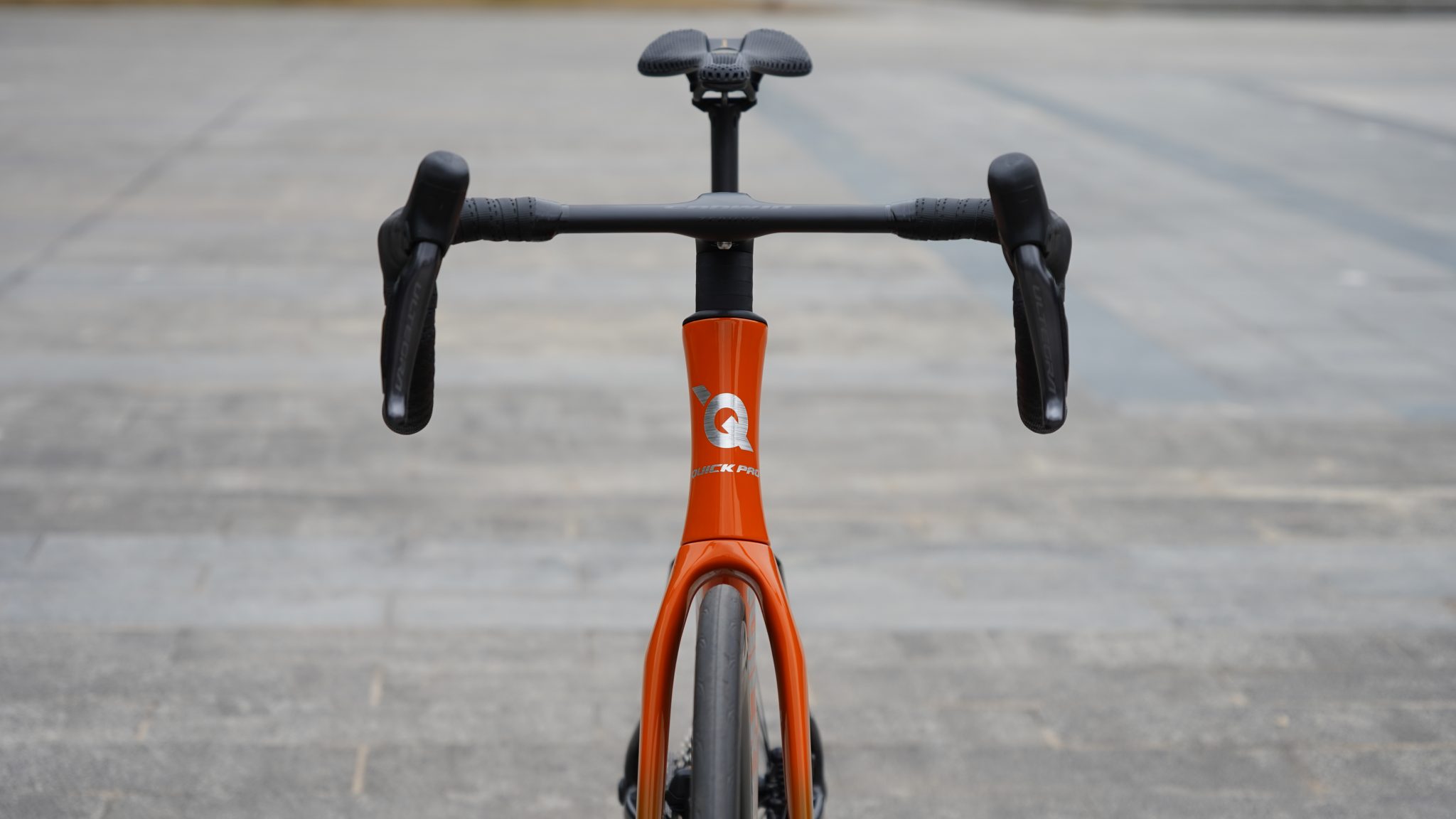

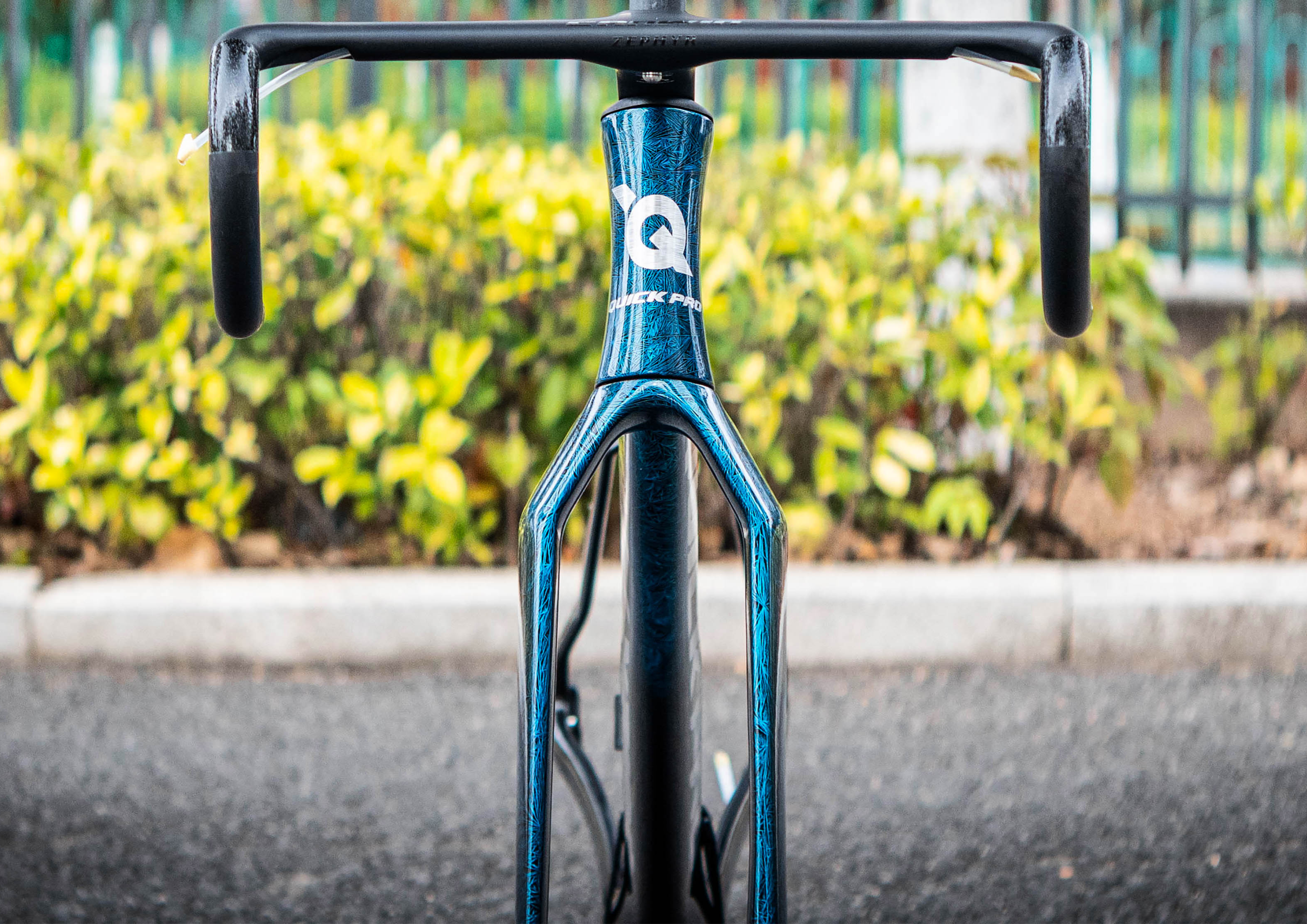

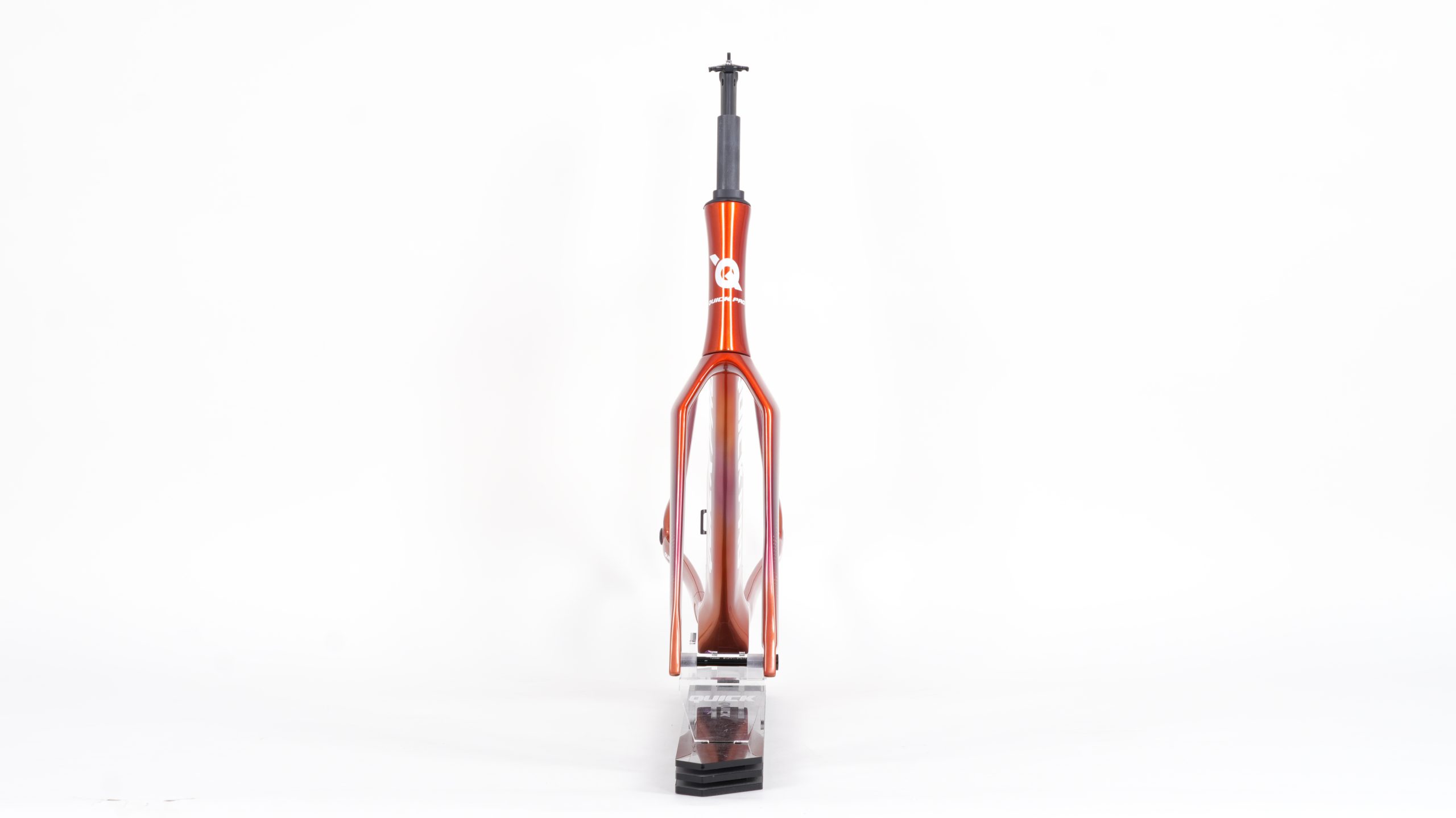

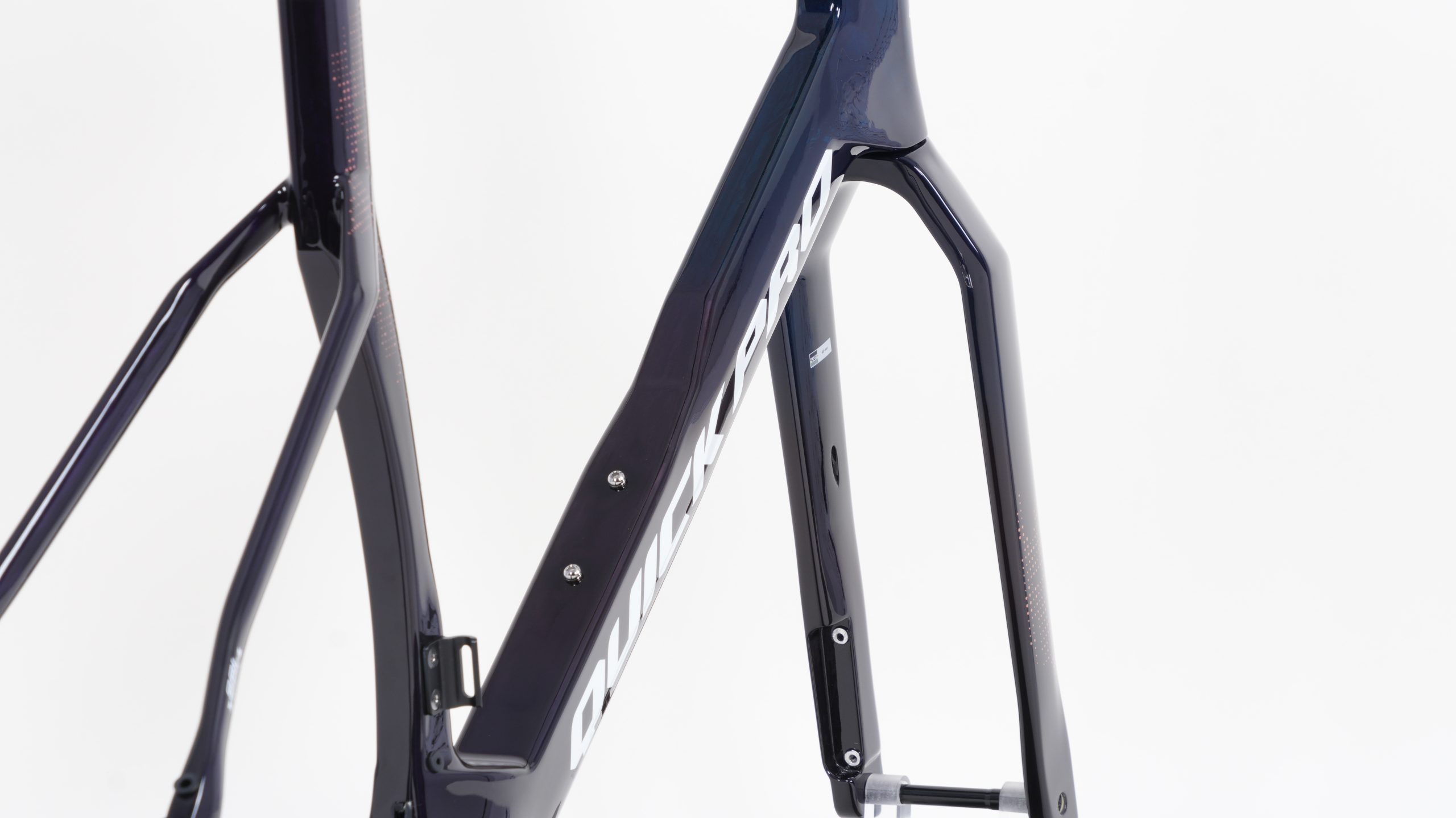

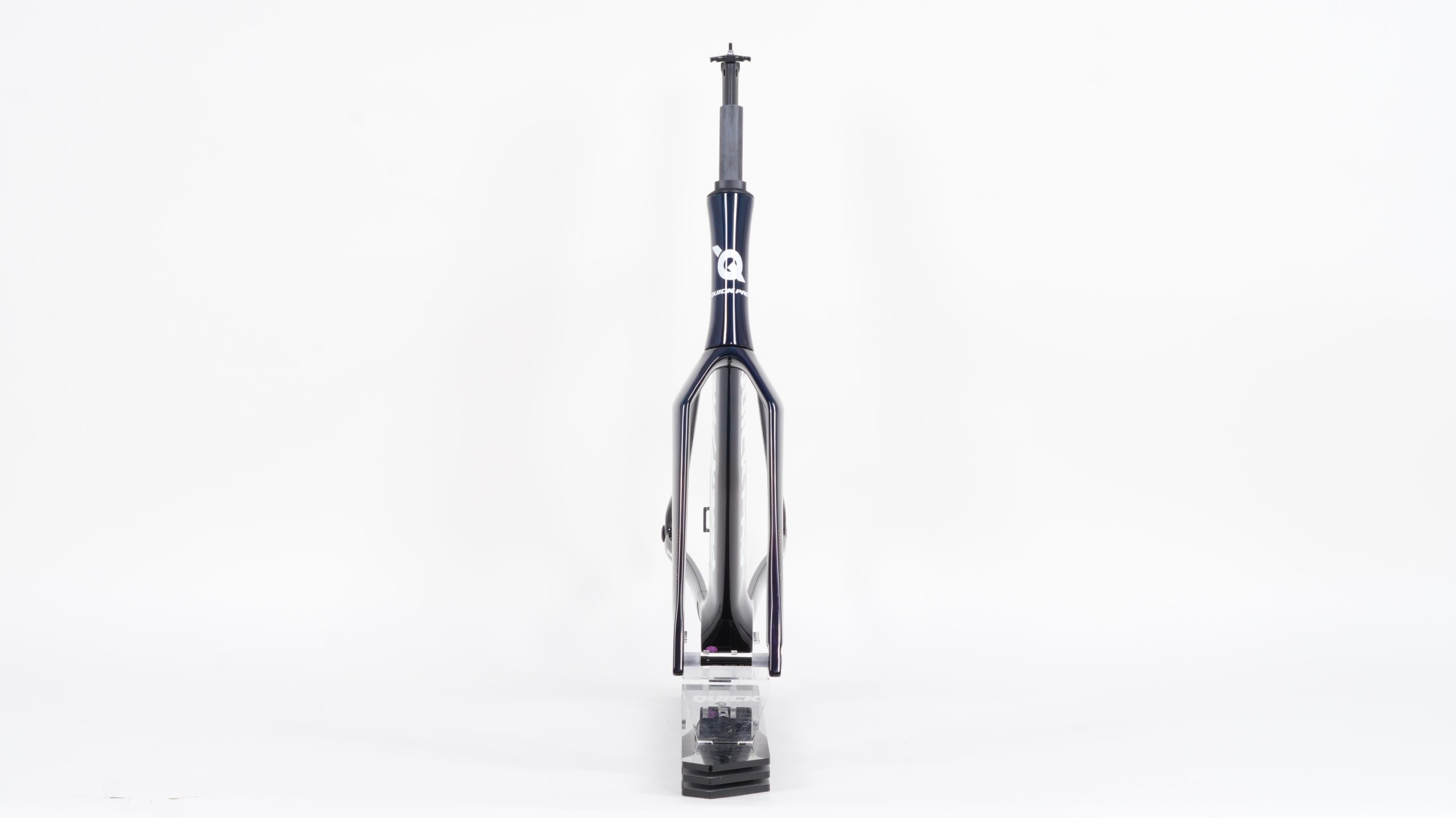

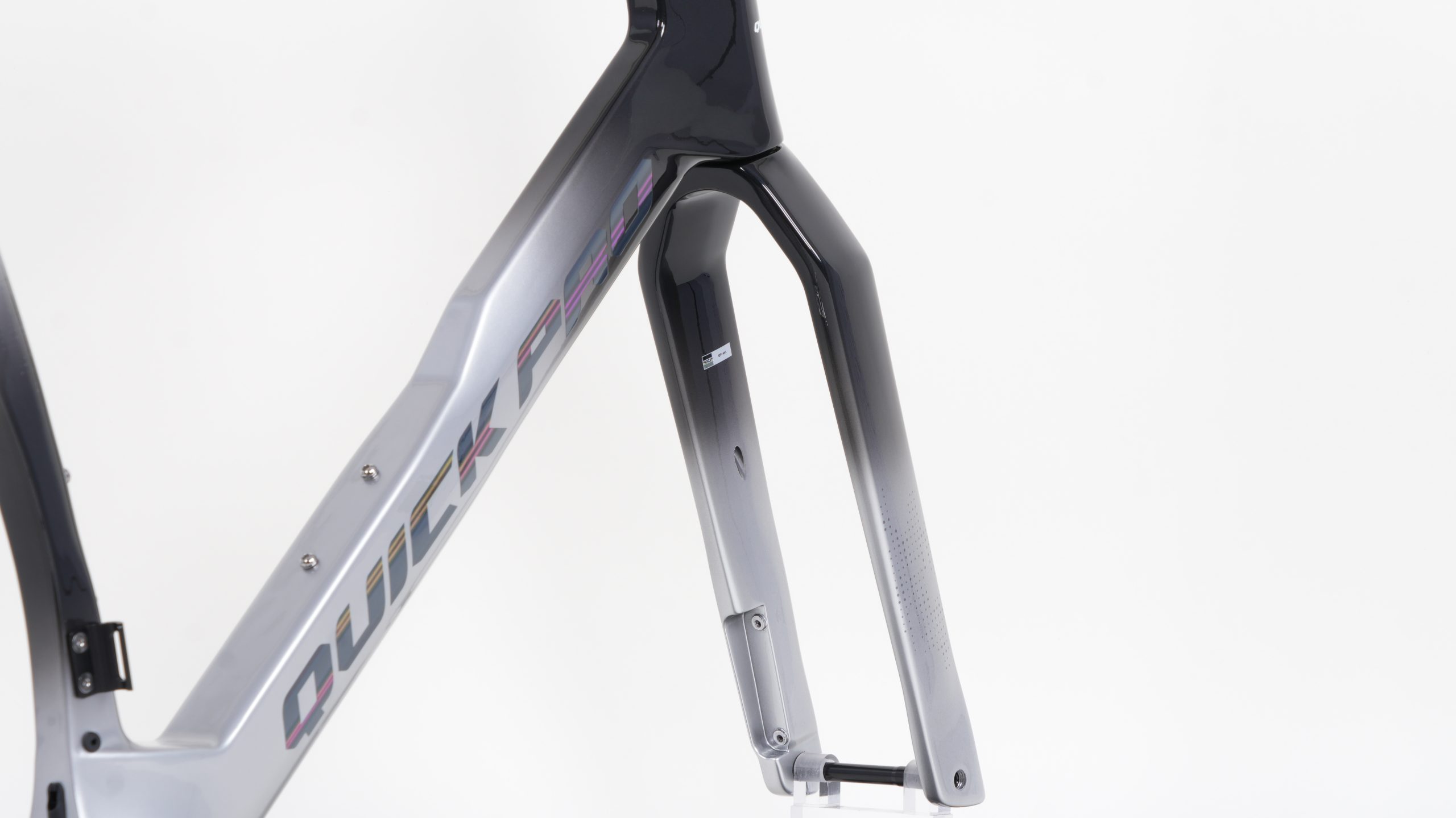

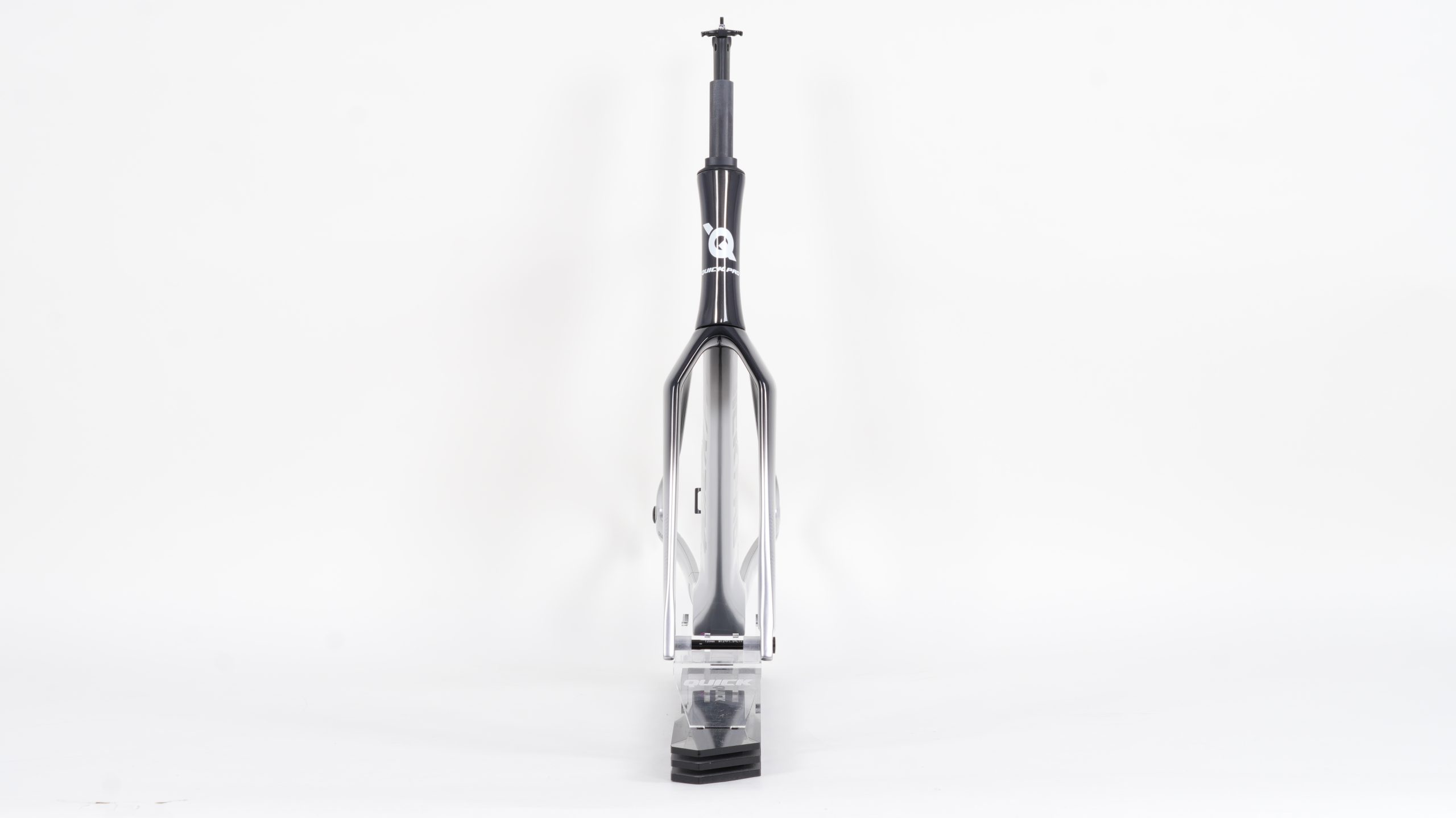

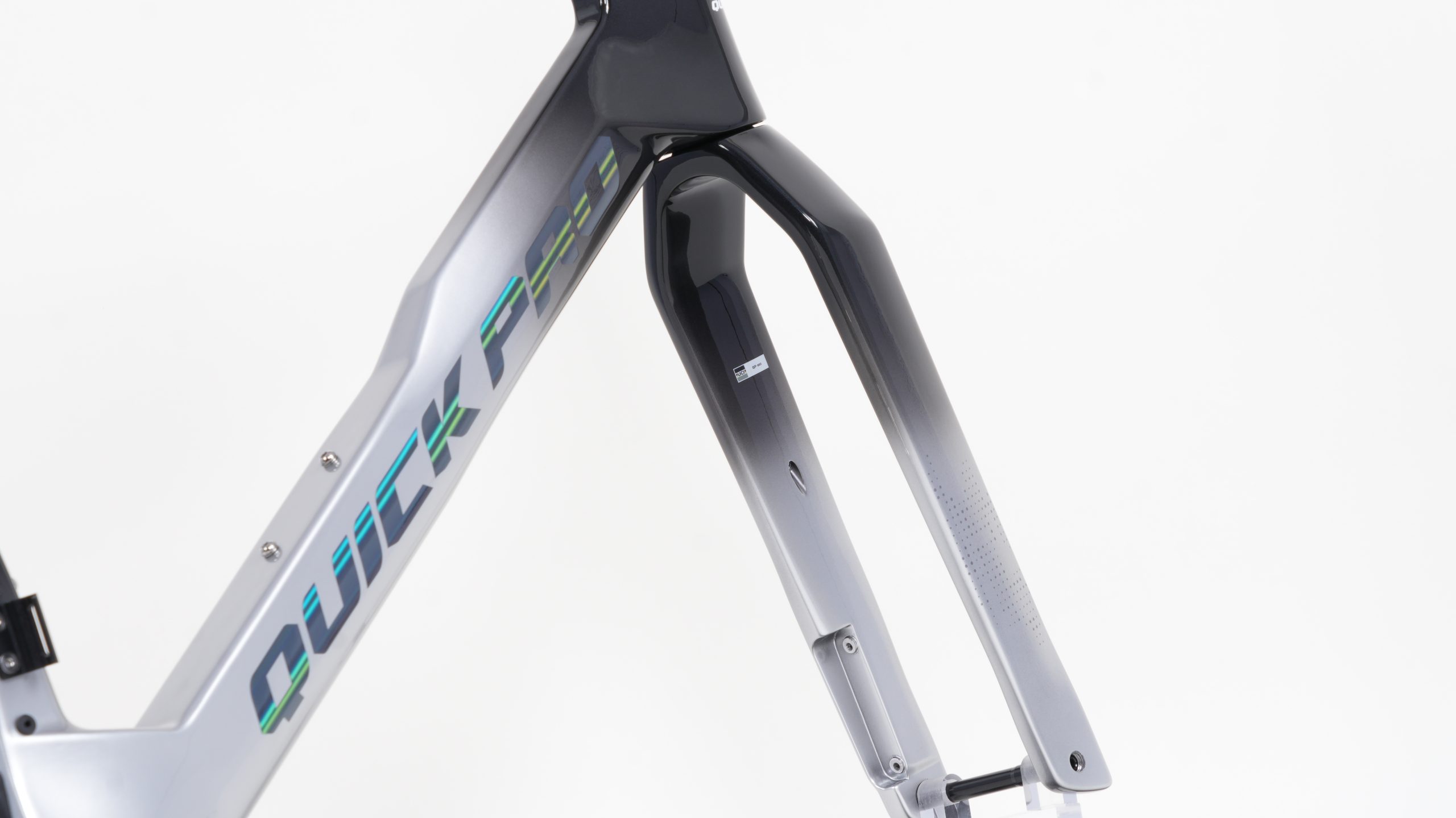

Wider Folk
The ER:ONE front fork features a wide-spacing design that is designed to keep the fork blades out of the turbulent air generated by the front wheel. Deep aerofoils perform best with laminar airflow, so this wide stance design gives the fork the best low-drag environment.
Full Safety Inspection on Every Frameset
Building a frame so light requires precision manufacturing at every step of production. Every frame is given a full quality control inspection before leaving the factory, including X-Ray analysis of every frame produced.

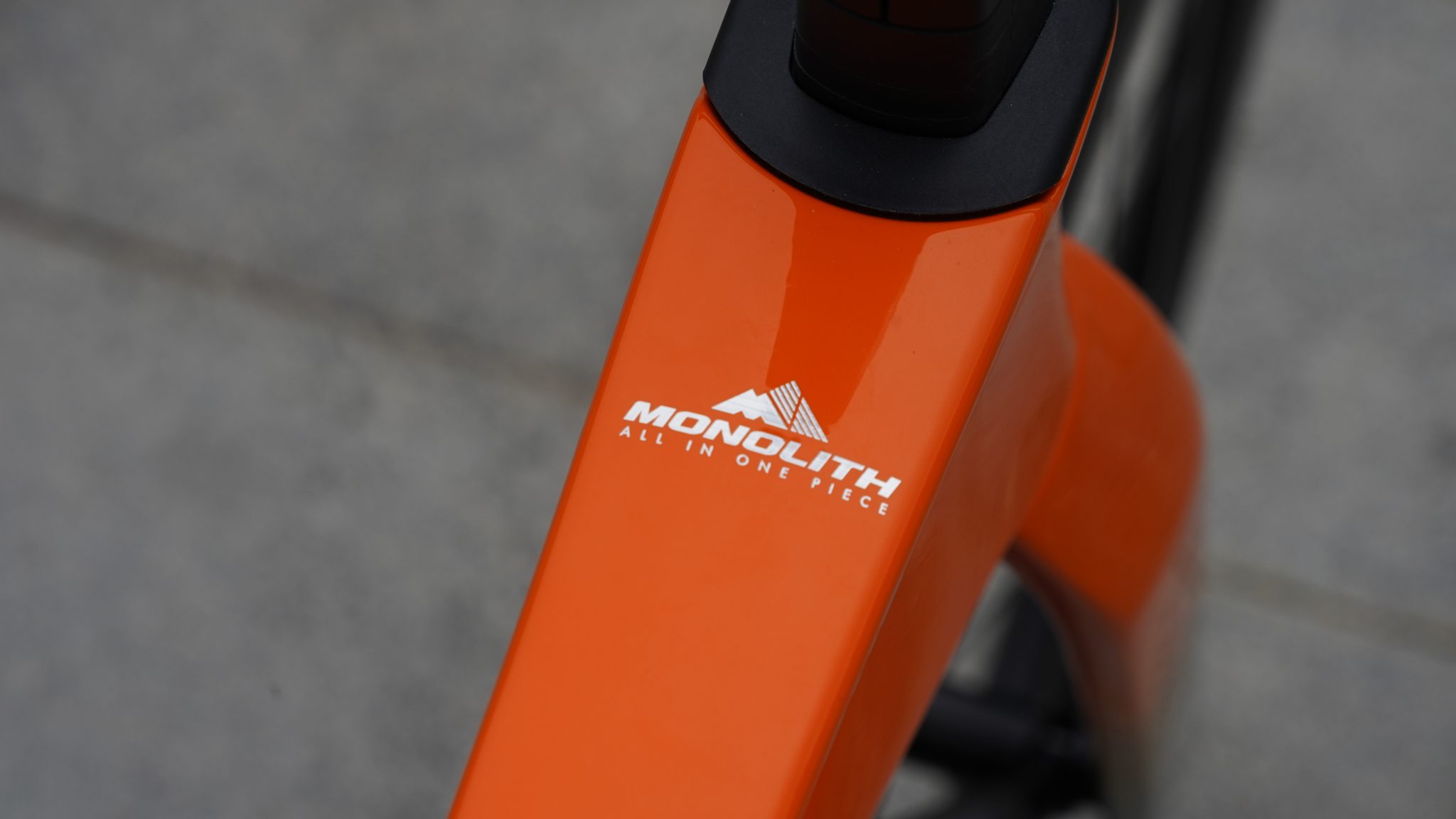

True Monocoque Technology
QUICK have been producing true monocoque frames since 2014. With their in-house equipment they are able to manufacture their own monocoque moulds allowing the entire frame to be produced as a single piece with no post-mould bonding required.

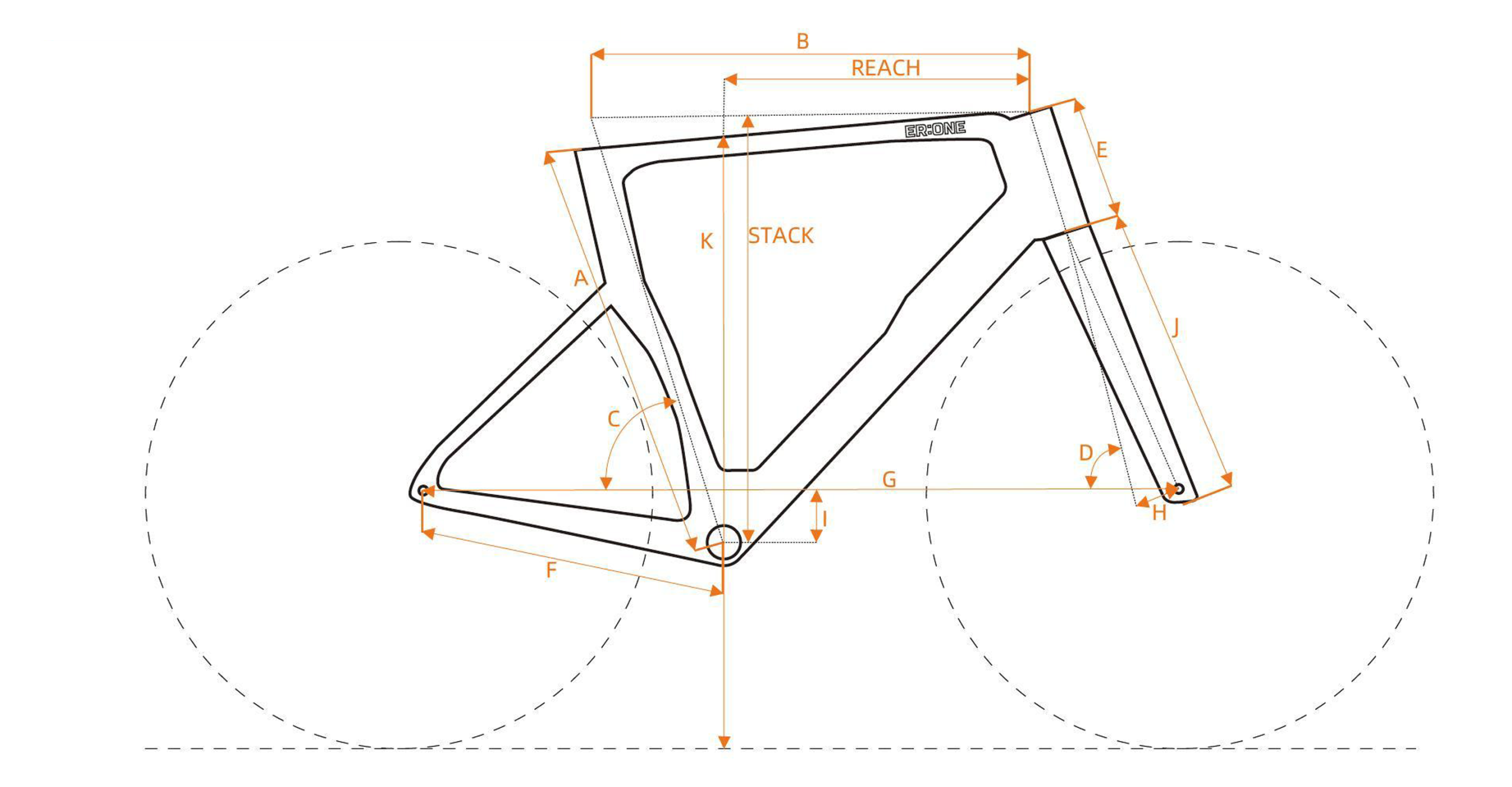

ER:ONE Frame Geometry

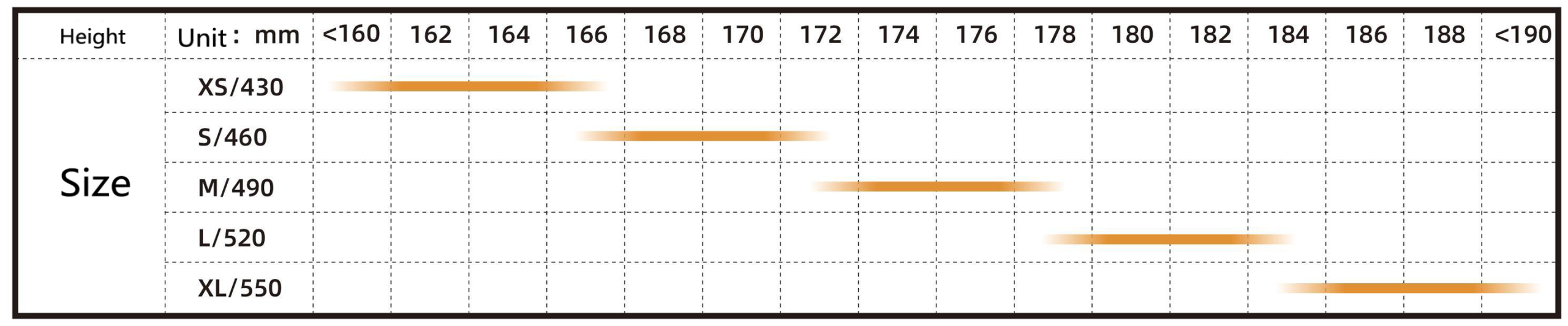

Height size reference table
| A Size/seat tube length (mm) Equivalent Size | XS/430 49cm | S/460 52cm | M/490 54cm | L/520 56cm | XL/550 58cm |
| Reach (mm) | 380 | 381 | 386 | 393 | 406 |
| Stack (mm) | 505 | 521 | 538 | 556 | 572 |
| B Horizontal top tube length (mm) | 515 | 525 | 540 | 558 | 575 |
| C Seat tube angle (degrees) | 75.0 | 74.5 | 74.0 | 73.5 | 73.5 |
| D Head tube angle (degrees) | 70.0 | 71.0 | 72.0 | 73.0 | 73.0 |
| E Head tube length (mm) | 105 | 118 | 132 | 148 | 165 |
| F Chainstay length (mm) | 408 | 408 | 408 | 408 | 408 |
| G Wheelbase (mm) | 988 | 985 | 987 | 991 | 1008 |
| H Fork rake/offset (mm) | 45 | 45 | 45 | 45 | 45 |
| I Bottom bracket drop (mm) | 70 | 70 | 70 | 70 | 70 |
| J Fork length (mm) | 373 | 373 | 373 | 373 | 373 |
| K Stand-over height (mm) | 746 | 762 | 779 | 797 | 813 |
Specifications
Frame sizes: XS, S, M, L, XL
Frame material: Carbon FIber (Including T1100 & M65 High Modulus)
Headset: 52mm/ 52mm upper lower Fully Internal
Bottom Bracket: T47 Threaded (68mm)
Dropouts: F- 100*12mm R- 142*12mm
Brake System: Flat mount disc brake
Max tire clearance: 700*32C
Accessories: Seat Post, Headset, Seat Post Clamp, Direct-mount Derailleur Hanger, Di2 Battery Stopper, Seat Post Dust Cover, Thru-Axles.
Rider Weight Limit: 120kg
Manufacturer's Frame Warranty: Five Years
Comparison with the AR:ONE
AR:ONE: An all-around frame that balances lightweight design with aerodynamic efficiency, suitable for various riding scenarios.
ER:ONE: An aerodynamic-focused frame designed for speed on flat terrains, ideal for riders seeking high-speed performance.
Choosing between the AR:ONE and ER:ONE depends on your specific riding goals and preferences... and of course; whichever you think just looks better.
Real World Weight Data
We'll update this section as we get more data. So far most frames have had real-world weights between 880-985g depending on size and colour. "Real world weights" means including paint and both mech hangers.

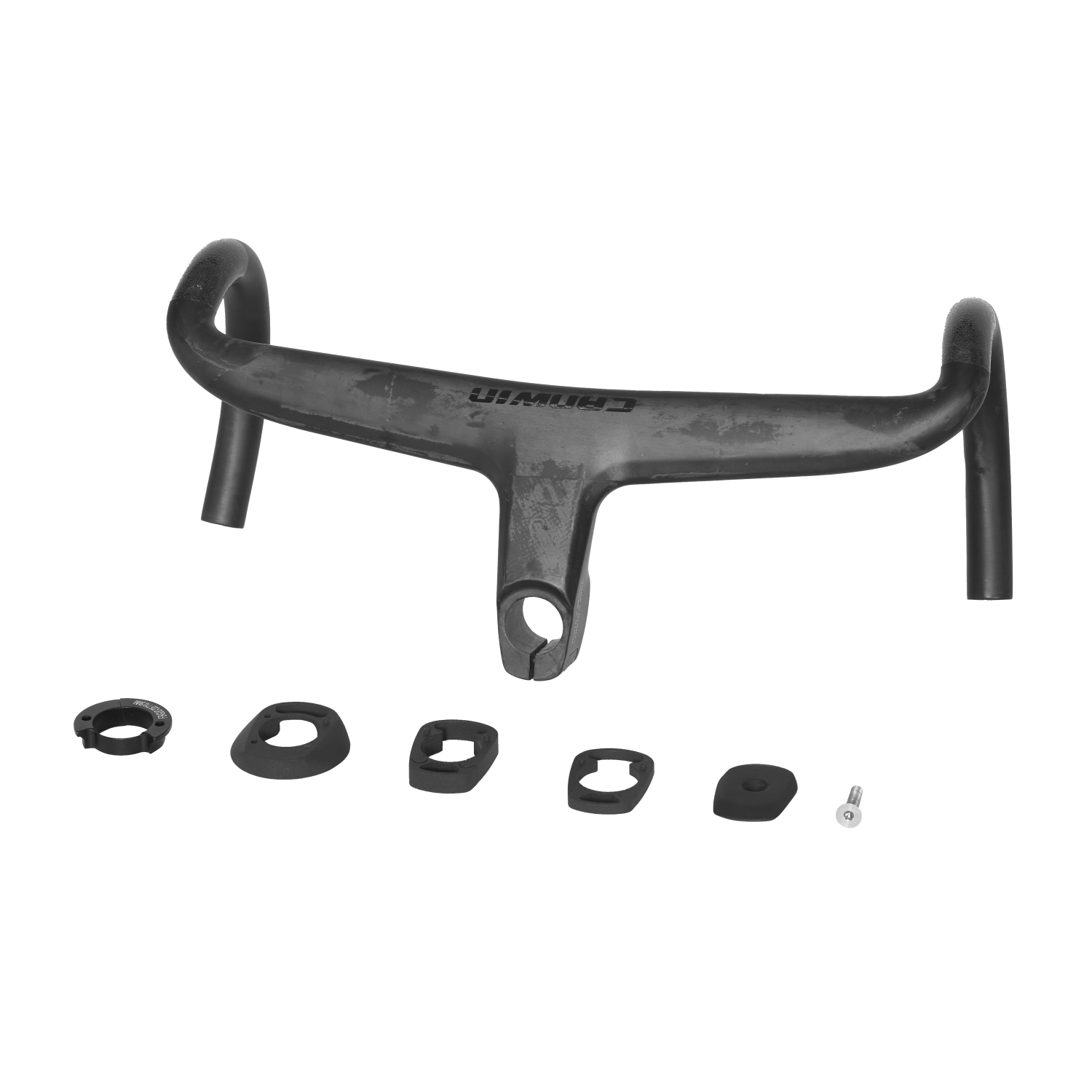

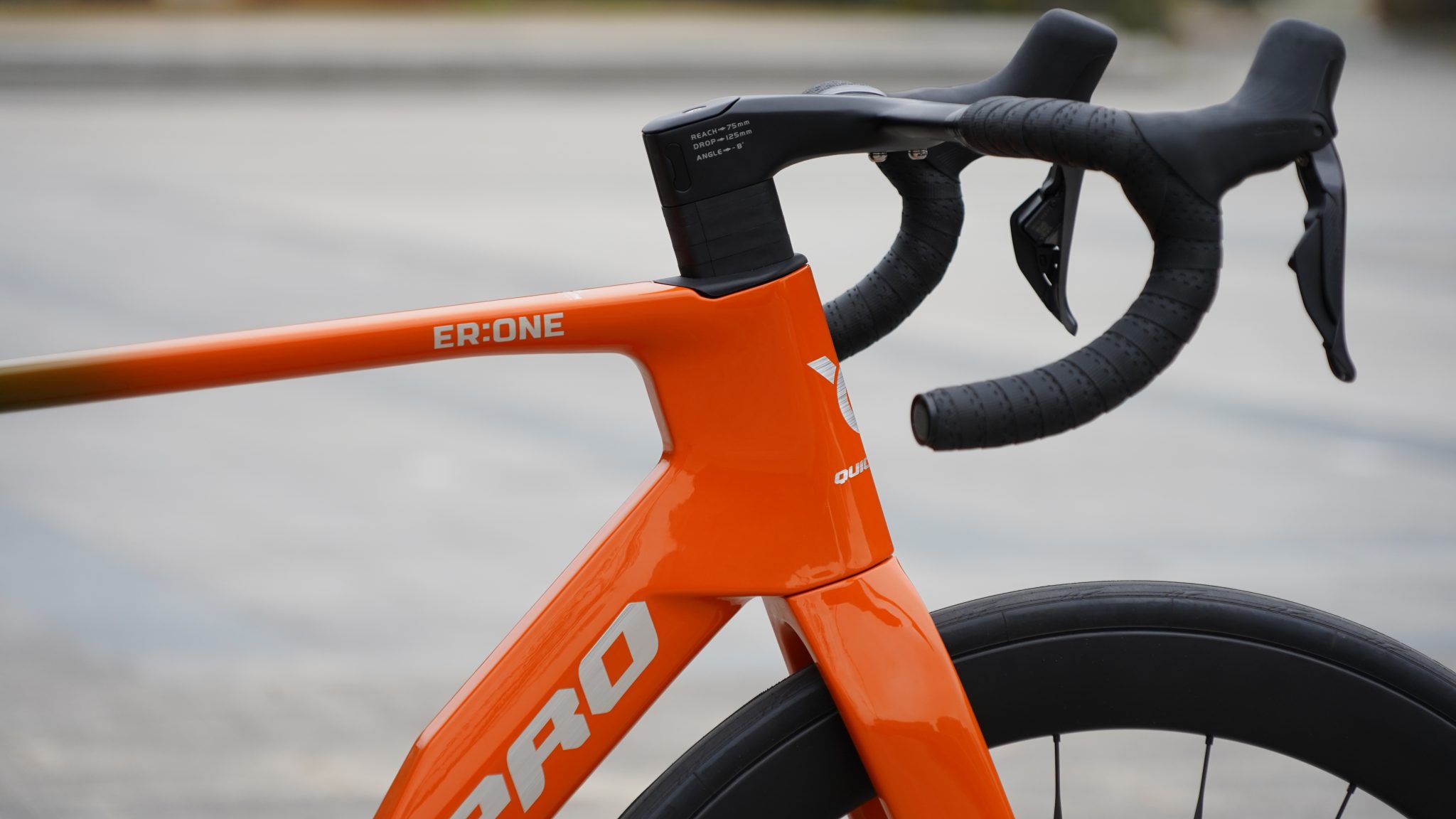

QUICK Integrated Handlebar
We understand a bike's cockpit is a very personal choice. Therefore we don't tie you in to a certain cockpit so you're free to chose from any of our excellent handlebars. However, when you purchase the ER:One, you can add the QUICK Integrated Handlebar for just $200 more.
Quick's accessory brand is called CANWIN. Their cockpity comes in two versions. The Zephyr SL (super light) and Zephyr SSL (super super light). Made with True Monocoque Technology, it’s super stiff, and impressively lightweight at only 288g, and comes in a variety of modern sizes to cater to your fit.
Gallery

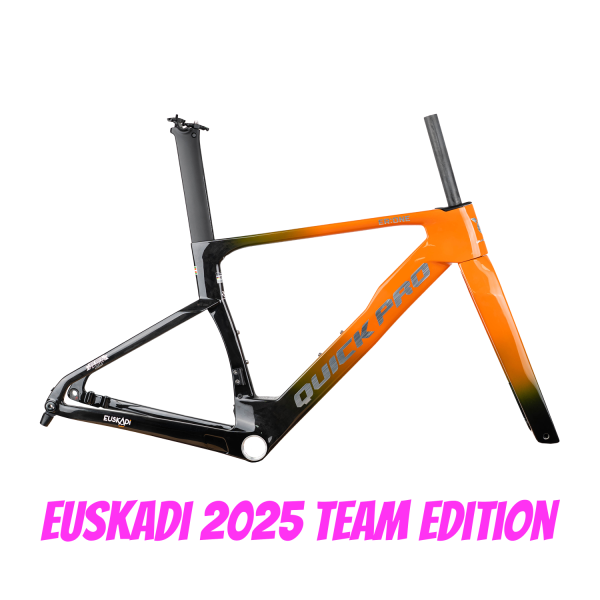

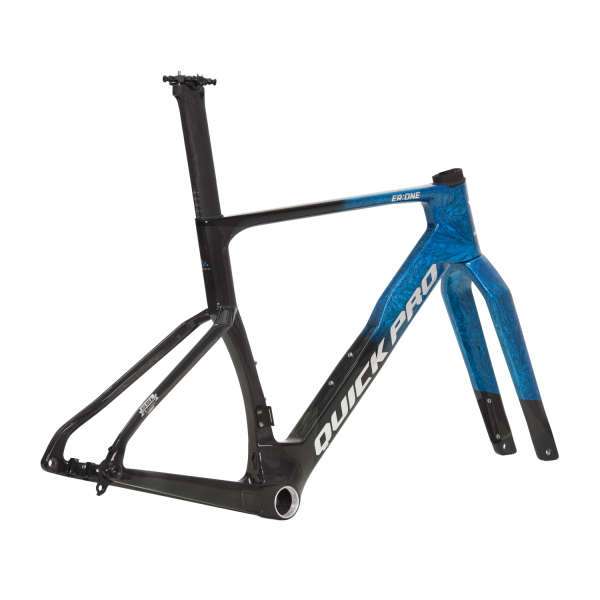

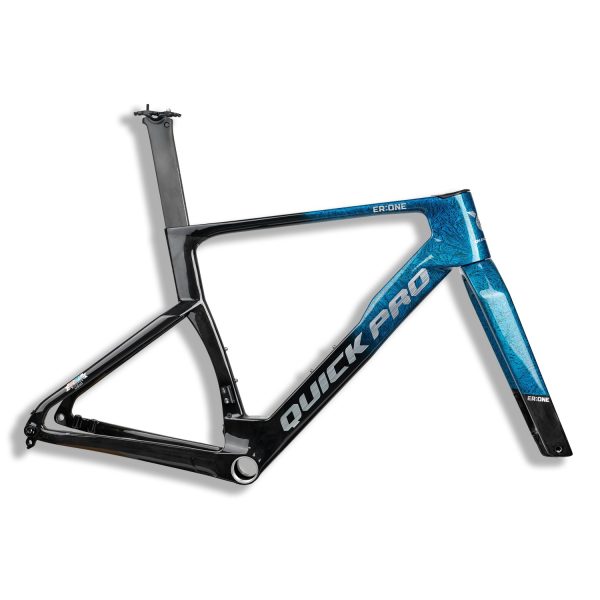

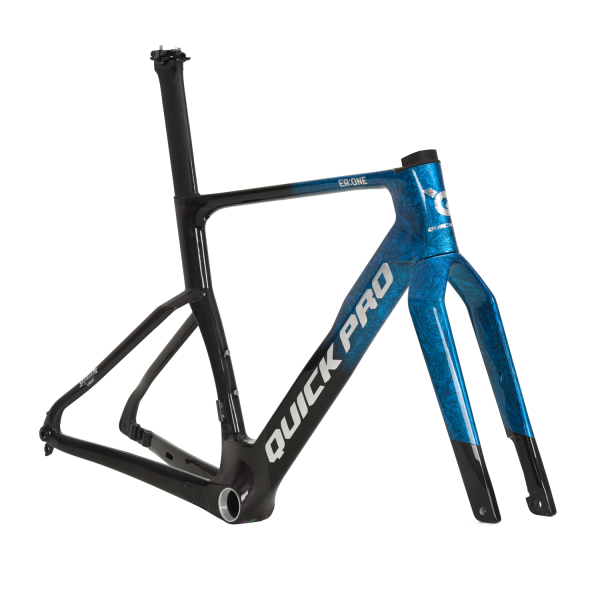

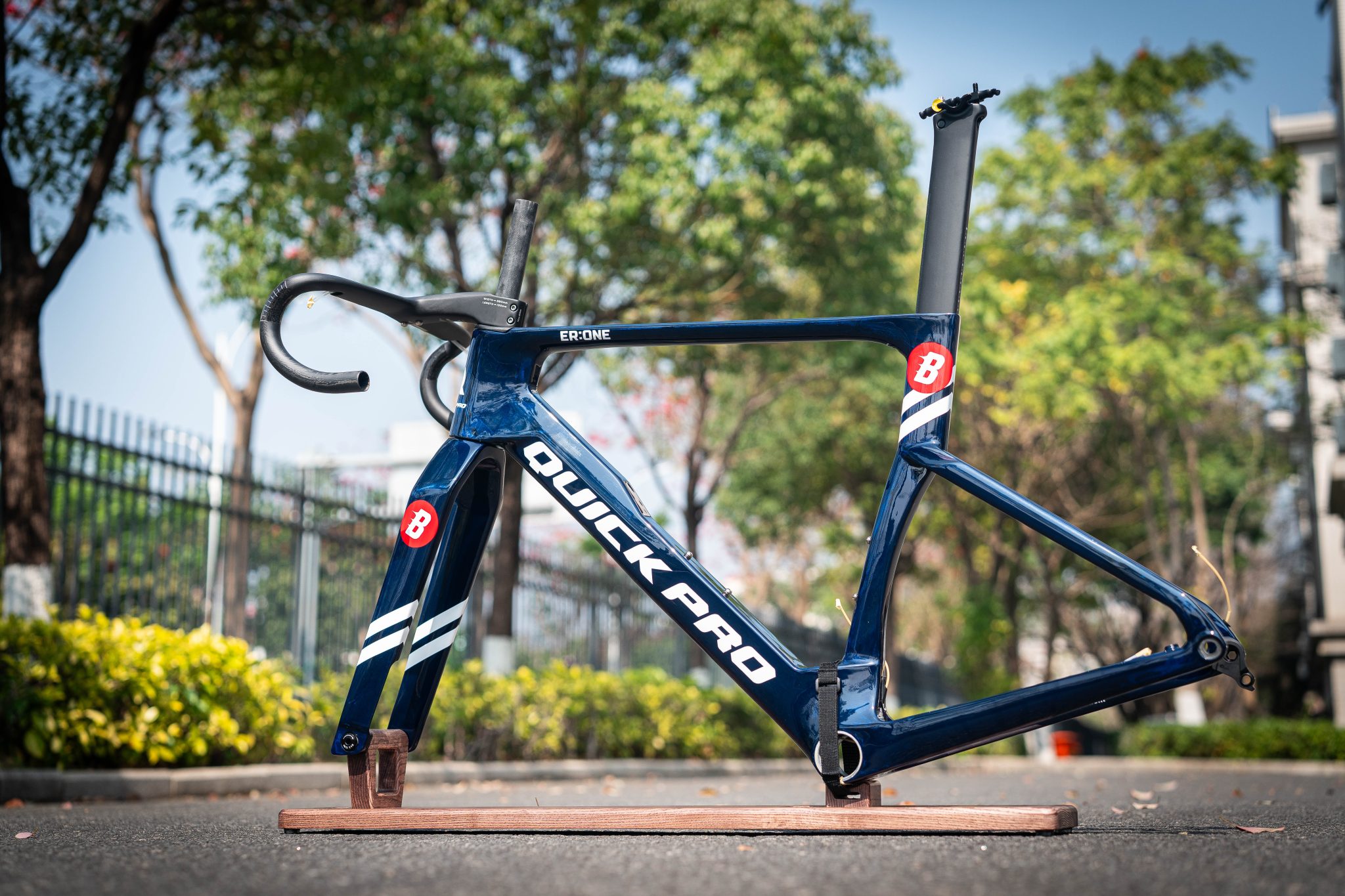

Team Edition

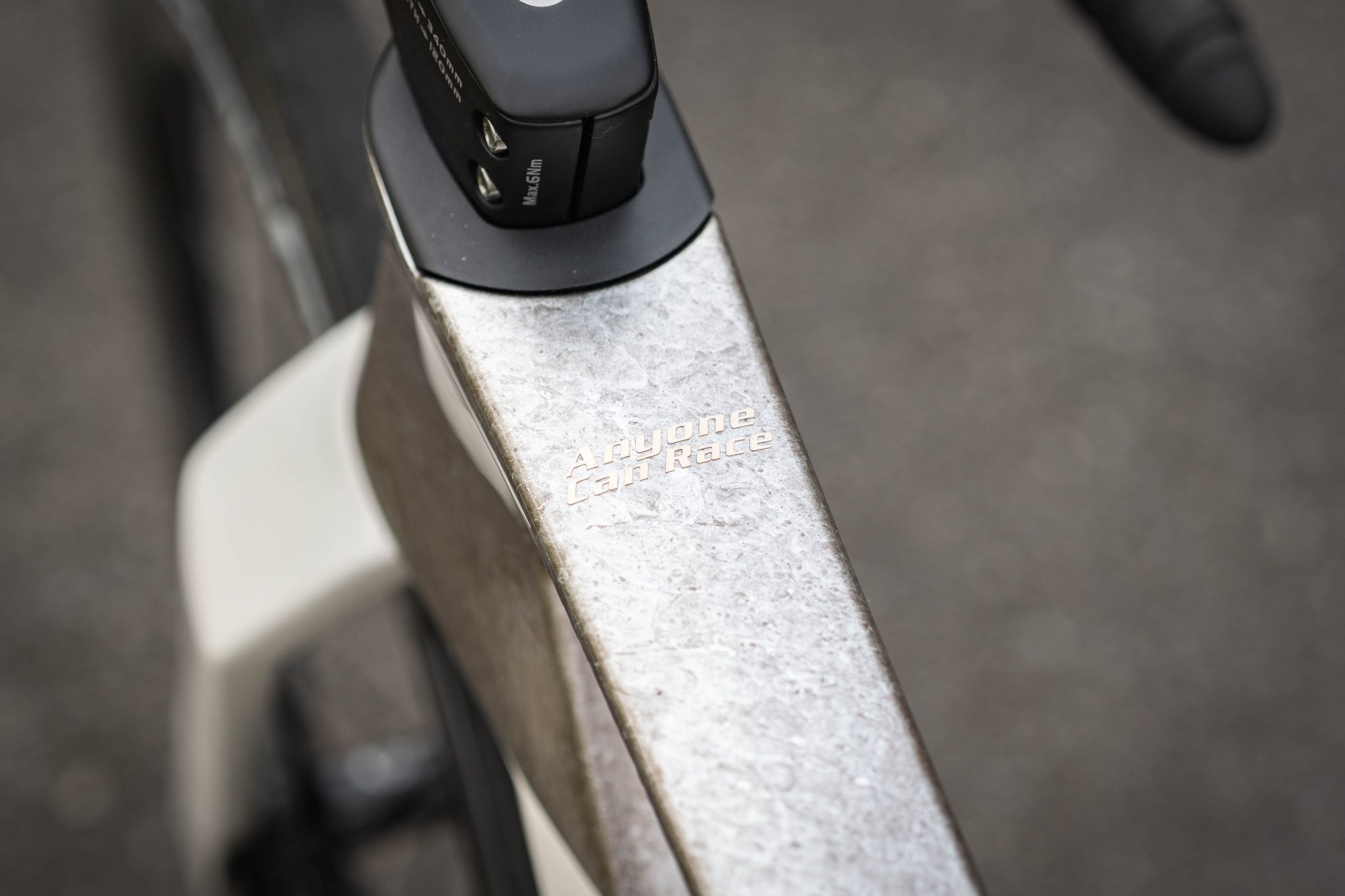

"Cracked-ice" blue paint fading out to raw carbon and the whole frame covered in a glossy clearcoat.

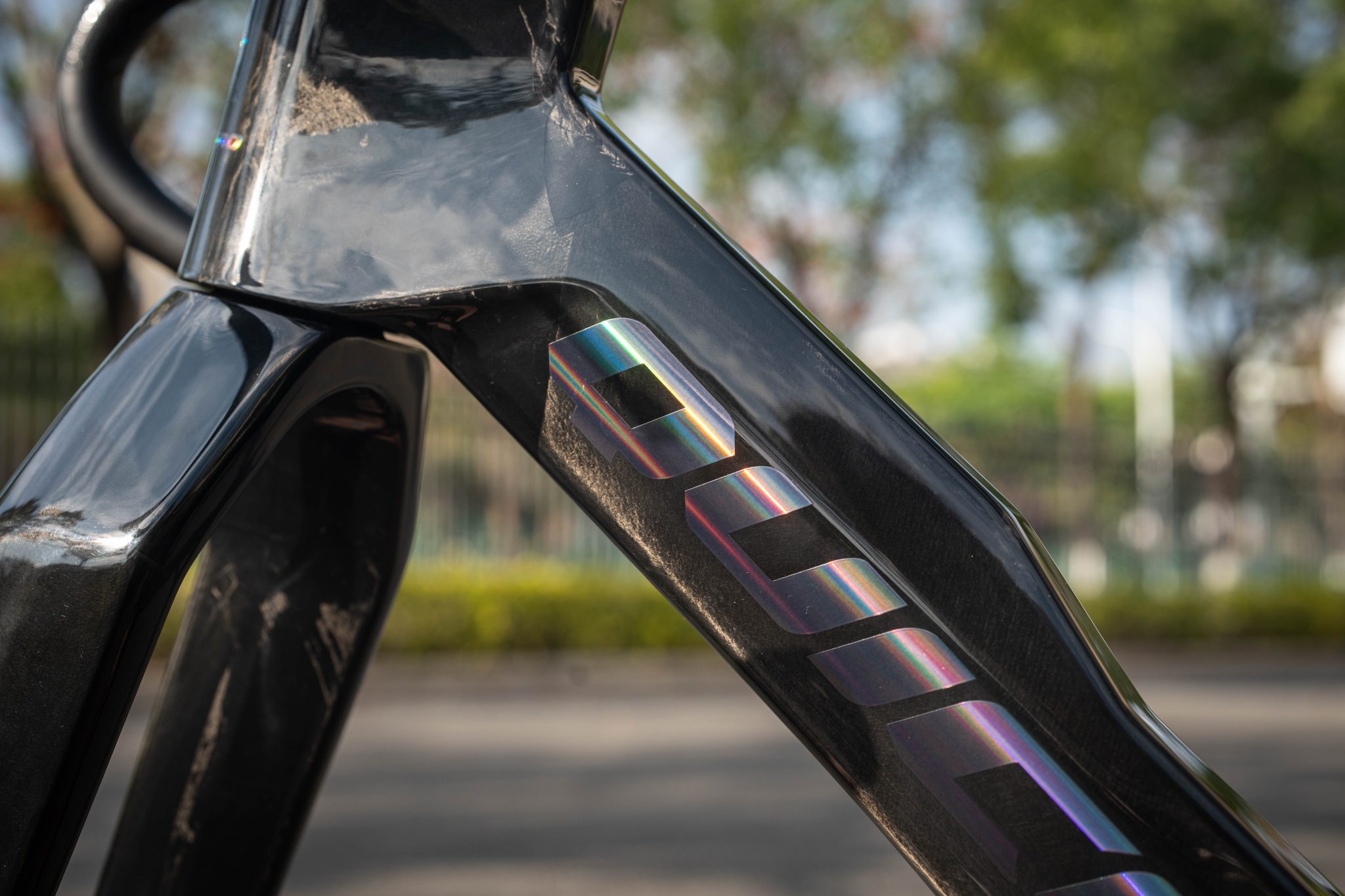

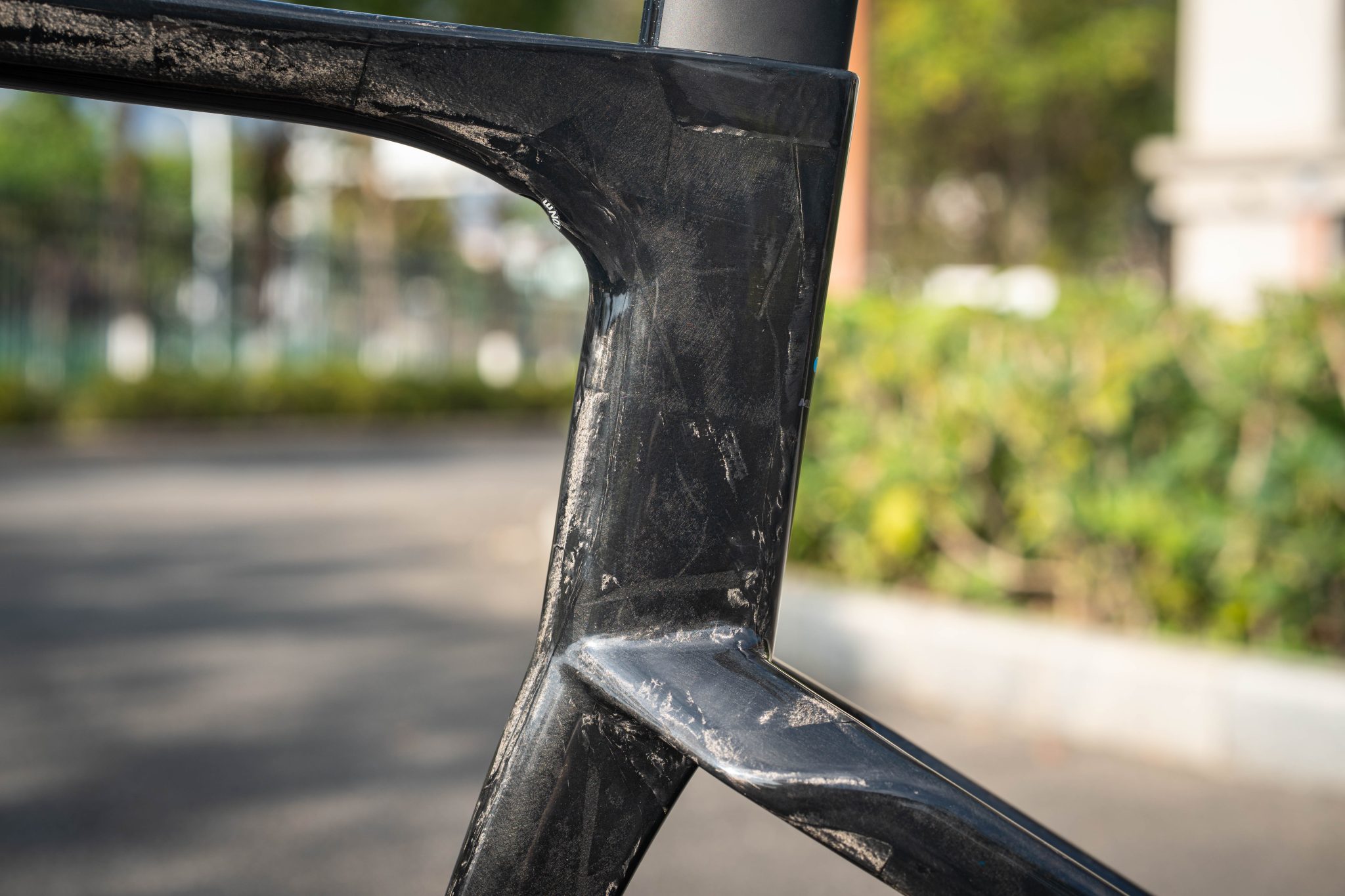

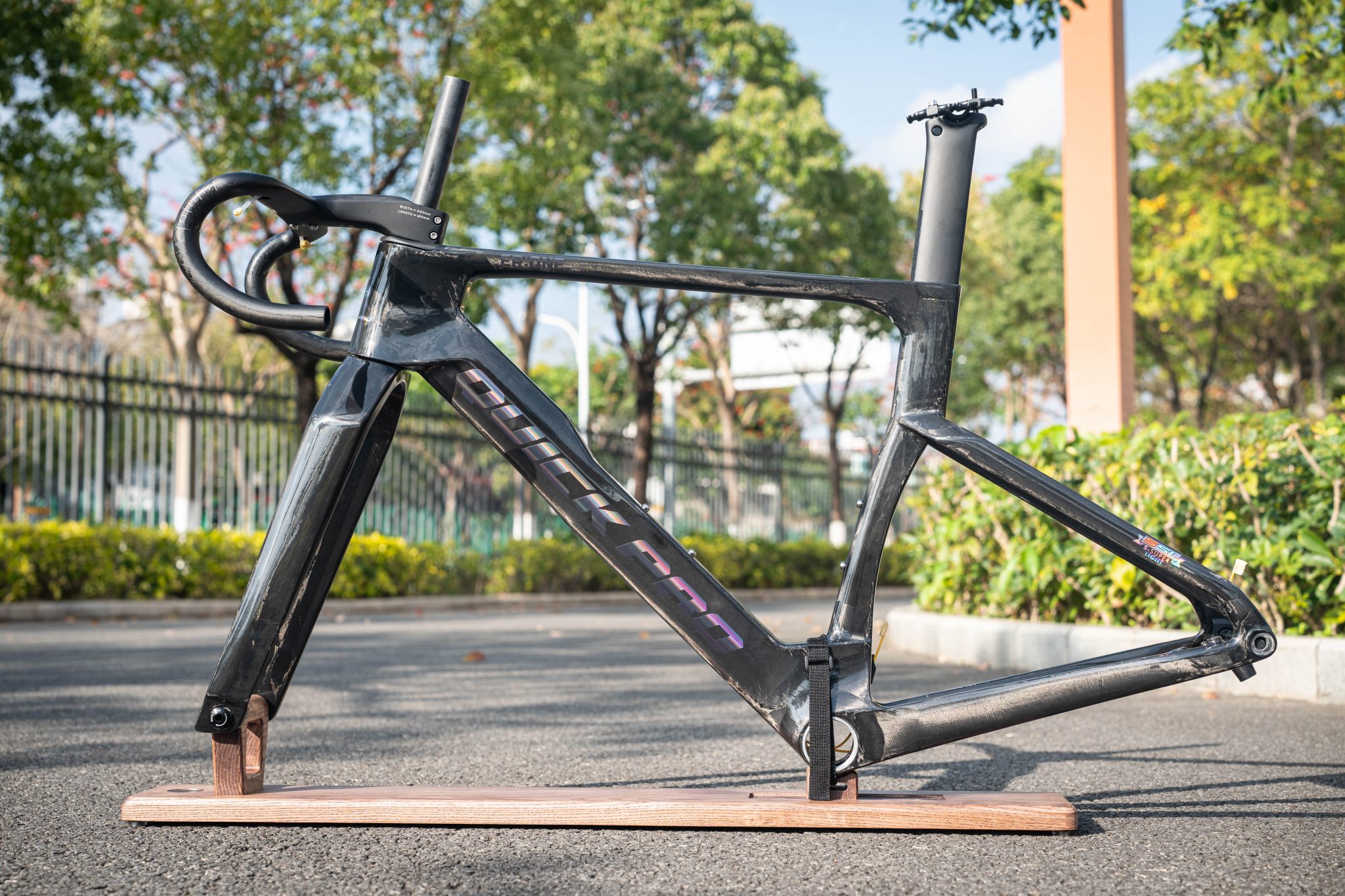

Carbon Black

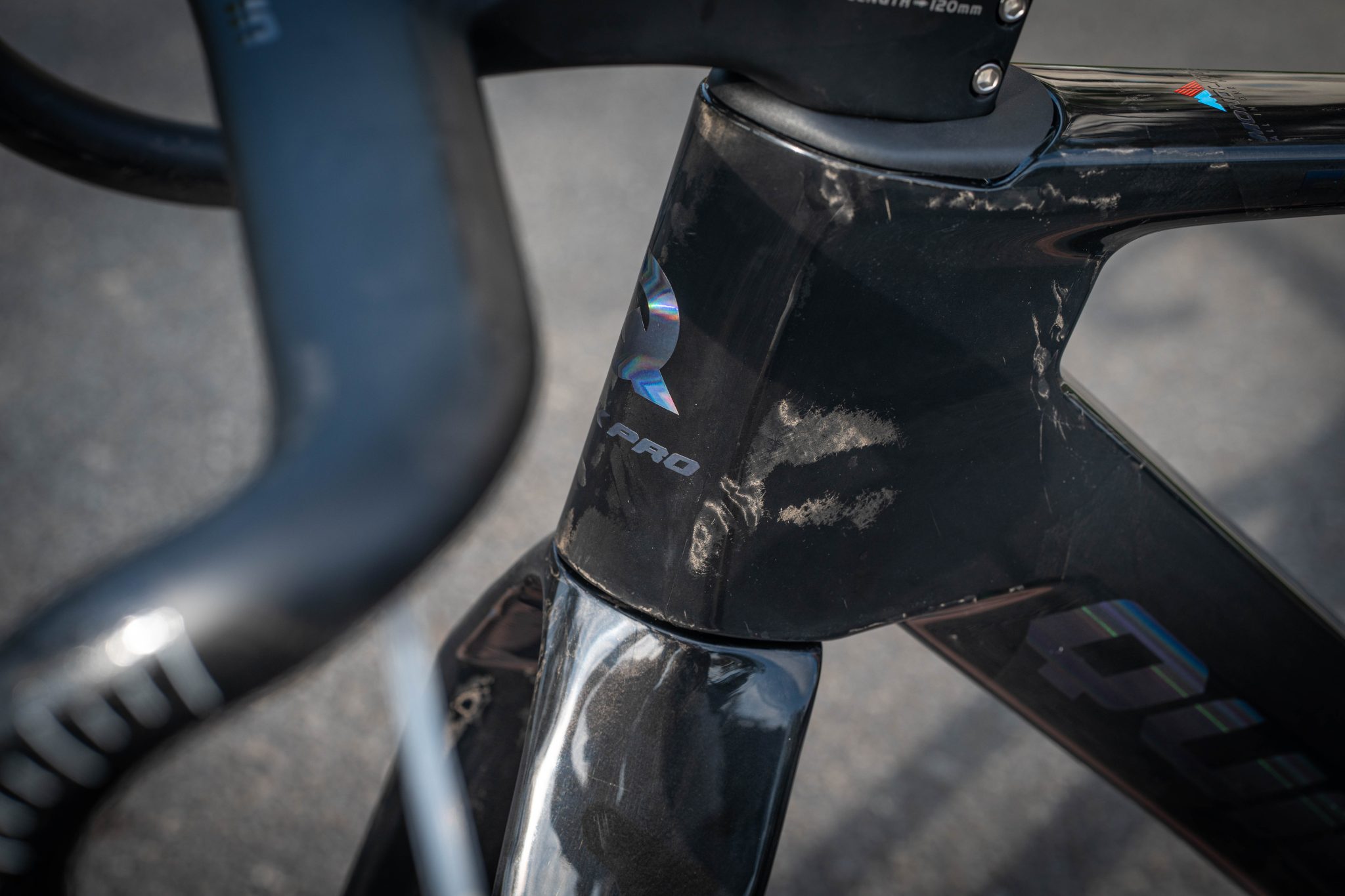

With carbon this good, why hide it? Raw exposed carbon with silver holographic logos, all finished with a glossy clearcoat.

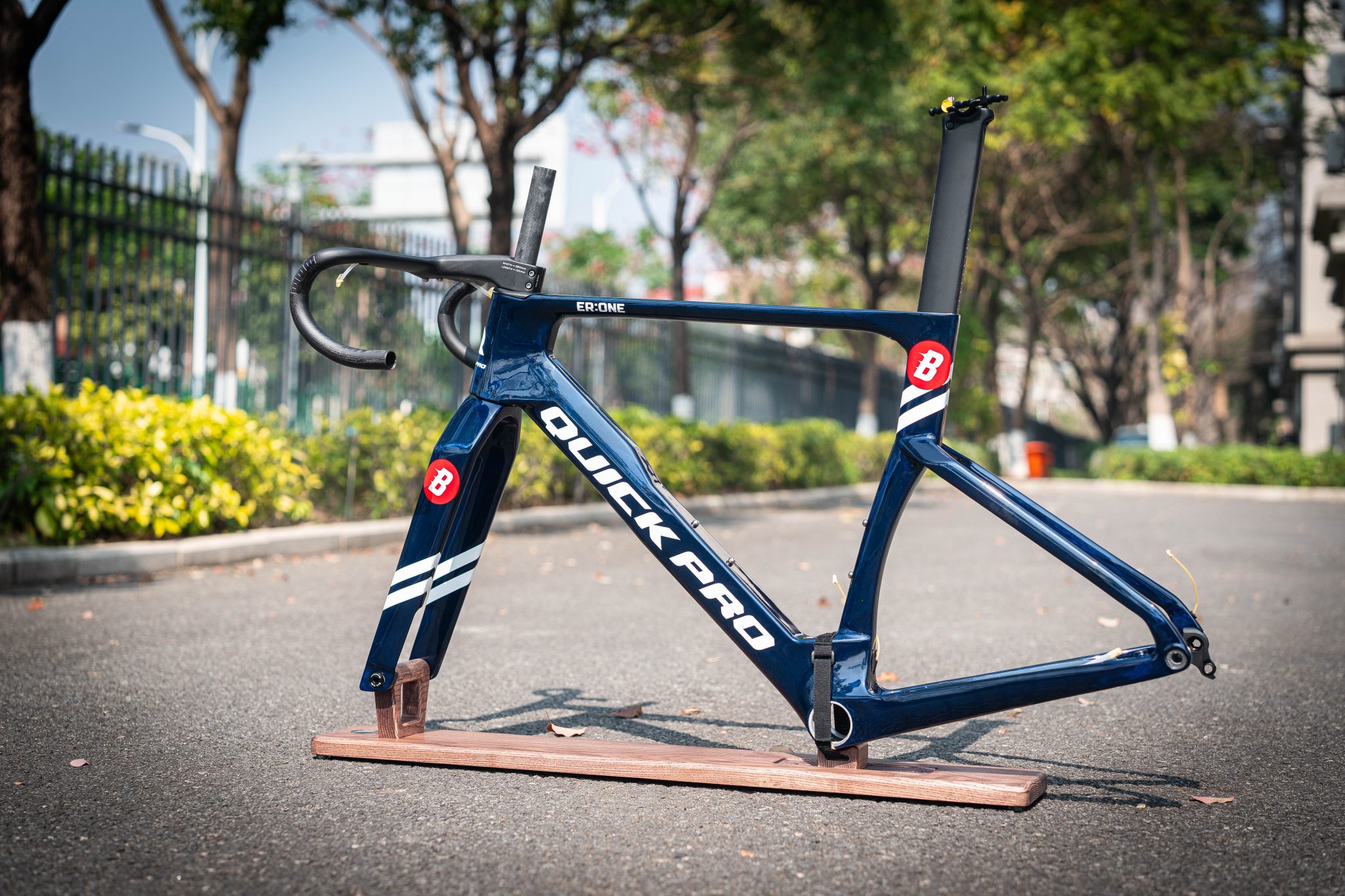

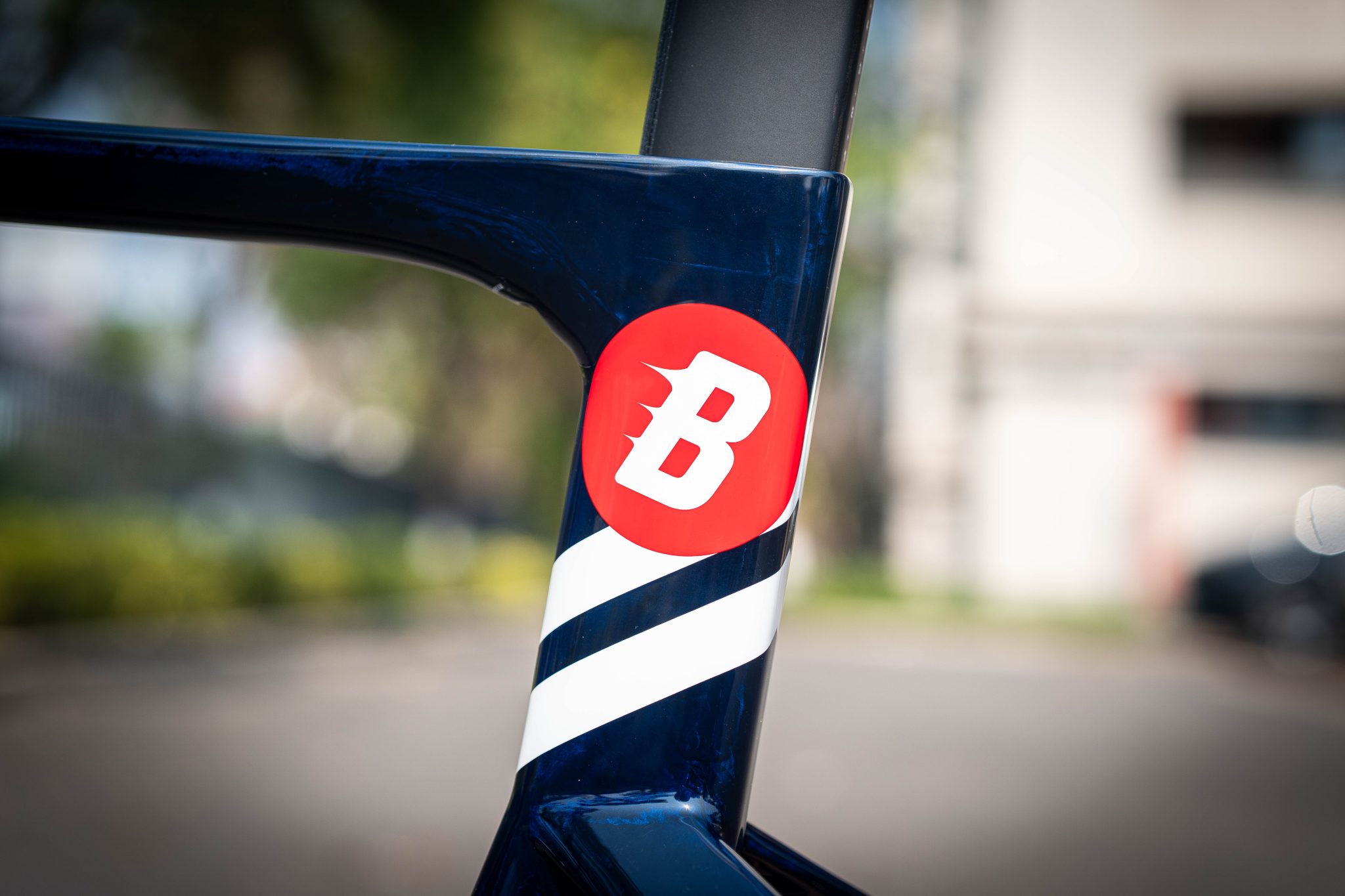

UTC-ButcherBox Cycling
United Through Cycling - ButcherBox Cycling are a Boston-based team racing all around North America. The frame features semi-transparent blue paint with bold white graphics.
Brand
Quick
| Brand Name: Quick | Chinese Company Name: 惠州市快客自行车有限公司 |
| Founded: 2018 | # of Employees: 50-100 |
| Headquarters: Huizhou, Guangdong | Products Categories: Framesets, Accessories |
