OVERFAST Ultralight Thru Axles
$220.00
This is now the updated 2024 version with a titanium insert. The axles are only available with pre order, and the production will take 25-35 days.

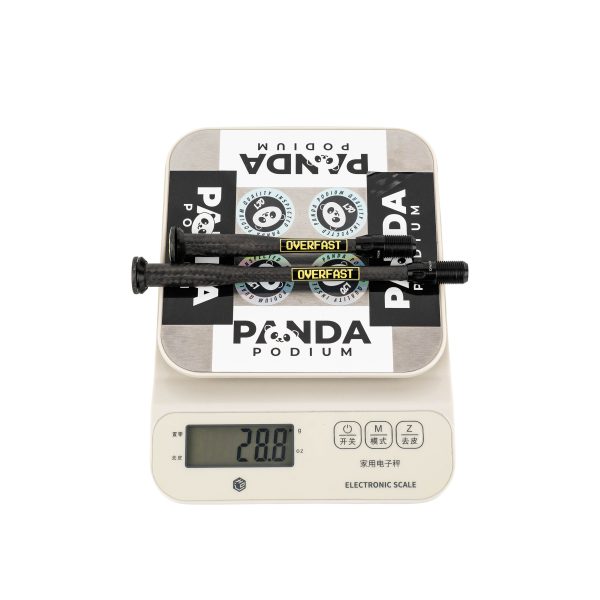

- From just 30g per pair

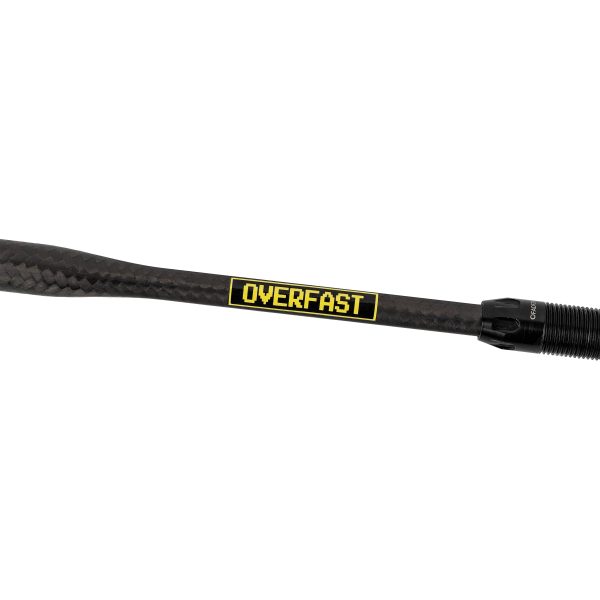

- Carbon thru axle with aluminium thread and titanium insert
- Patented mechanical bond between carbon and alloy
- >950kgf tensile strength
- Available for most modern disc brake road bikes
- Updated 2024 version
- Free worldwide shipping
- Note: For Canyon models, MY21 comes with M12*1.0 pitch, and MY23 comes with M12*1.75 pitch. For Trek models, 2019-2021 version come with 122mm font axle, and Gen7 version comes with 118mm front axle. Please check before order.
- Note: DO NOT use RSP assembling paste on these axles, it might cause the axle get jammed in the frame.
- Note: During the QC process, the axles’ threads are tested and torqued to spec. This may result in some light scratching of the anodized threads. Rest assured, your thru-axles are brand new. This step is essential to guarantee the safety of the product.
Customer Review
Recieved within 10 days of postage. Superlight 35grams for my S-Works SL7 over standard thru axles at 6970grams. Had to buy a new 6MM socket for my torque wrench as Hex needs to be inserted by 15mm ... keep reading
What Customers Think
- Description
- Additional information
- Brand
- Reviews (5)
Description
OVERFAST: The World's Lightest Thru Axles.
Listen to your inner weight weenie.
If you’re like us; you’re obsessed with shaving grams from your bike. We get it, we get you – that’s why when we saw the OVERFAST thru axles, we knew we had to stock them.
At around 30-31g per pair, the OVERFAST thru-axles are a stylish weigh to drop upto 100g from your bike without any compromise to performance. The Thru-axles are available in a variety of lengths, compatible with the latest disc brake bikes from Pinarello, Bianchi, GIANT, Colnago, Merida, Specialized, Trek, Cannondale, Factor, Cervelo, BMC and Scott.
If you have another brand, we’re able to custom order your thru-axles, but lead times may be longer.
Stock Cervelo thru-axles: 129g.
OVERFAST Cervelo thru-axles: 30.7g.
Serious about Safety
As much as we’re obsessed with weight; we know the old adage rings true – Safety First. OVERFAST thu-axles have undergone years of research, development & testing. Throughout development one thing was paramount; there would be no compromise to safety. While some manufacturers have experimented with bonding aluminium threads to carbon thru-axle shafts, our patented technique relies on a mechanical interface between the carbon and alloy components. While we also use aerospace-grade adhesives to bond the two, the adhesive is just for added peace of mind. Even without the adhesive, our thru-axles have a tensile strength of 500kgf. With the adhesive the overall tensile strength of the thru axle is over 900kgf.
OVERFASTs testing includes the following:
- Thru Axle Fatigue test with wheelset (EN Standard)
- Thru Axle Impact test with wheelset (UCI Standard)
- Maximum Torque Test (19Nm)
- Maximum Tensile Strength Test (>950kgf)
- X-Ray Inspection Test
- Lateral Compression test. ( 100-200kg)
- Carbon Cap Impact and Fatigue Resistance Test. (20j impact, 12Nm torque installation and disassembly for 200 cycles a 1 minute intervals.)
- More than one year real-world testing. (WuBo, 80kg Taiwanese Sprinter)
Environmentally conscious design
We respect that one of the greatest aspects of the bicycle is how environmentally friendly it can be. However, we’re also aware that certain manufacturing techniques have the potential to cause harm to the environment. OVERFAST are also committed to environmetally aware production and packaging techniques. This includes their packaging that try to maximize recycled and recyclable materials.
Basic Care & Attention
While the OVERFAST thru-axles are durable for a weight-weenie part; they’re still an expensive piece of carbon fiber, and so you should use basic care and attention when using the thru-axles.
- Use good quality hex wrenches when installing or uninstalling the thru-axles.
- Make sure the head of the tool is inserted at least 15mm into the thru axle before tightening or untightening.
- To avoid damage; use a torque wrench for installation. The recommended torque is 7-9Nm.
2024 Update

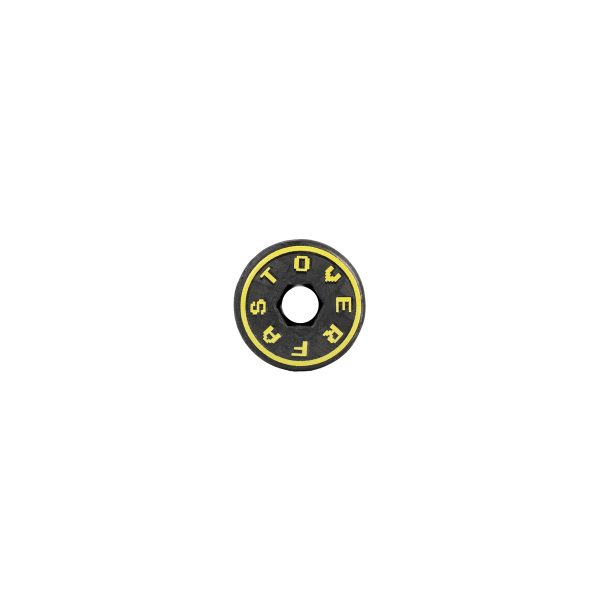

For 2024 the thru-axles have been updated to include a titanium insert for the hex wrench socket. This increases the durability of the thru-axle when installing and uninstalling. This updated added 1g but saw a huge increase in durability and usability.
-
Select options This product has multiple variants. The options may be chosen on the product page
Shop Now!
Available for pre-order, production time is around 20-30 days and we will ship order on a first-ordered first-served basis.
Additional information
| Axle Spec | 3T (Comapatible with 1st gen Strada)), Bianchi (Compatible with Specialissima/OLTRE XR4), Bigrock (Compatible with Sohtea), BMC (Compatible with MY21 SLR/TMR), Cannondale (Compatible with 2023 Supersix EVO gen4), Canyon (Compatible with MY21 Aeroad/Ultimate), Canyon (Compatible with MY23 Aeroad/Ultimate), Cervelo (Compatible with S5/R5), Colnago (Compatible with C68/V3RS/V4RS), Custom spec (Please contact us before order), Factor (Compatible with OSTRO VAM/O2 VAM), Giant (Compatible with TCR/New Propel), Merida (Compatible with Reacto/Scultura), Pinarello (Compatible with Dogma F12/F), Pinarello MY25 (Compatible with Pinarello F 2025), Quick Pro (Compatible with AR:ONE), Ridley (Compatible with Noah), Scott (Compatible with 2023 Scott Foil), Seka (Compatible with Exceed)), SEKA (Compatible with Spear), Specialized (Compatible with Tarmac Sl7/Aethos/Venge/Crux), Specialized (Compatible with Tarmac Sl8), Tavelo (Compatible with Arow), Trek 01(Compatible with 2019-2021 Madone/Emonda), Trek M7 (Compatible with Madone Gen7), Trek M8 (Compatible with Madone Gen8), Winspace (SLC 2.0D/T1500D/T1550D)) |
|---|
Brand
OVERFAST
| Brand Name: OVERFAST | Chinese Company Name:泉州三唯乐贸易有限公司 |
| Founded: 2021 | # of Employees: |
| Headquarters: Quanzhou, Fujian | Products Categories: Thru Axles |
sander2177 (verified owner) –
Recieved within 10 days of postage. Superlight 35grams for my S-Works SL7 over standard thru axles at 6970grams. Had to buy a new 6MM socket for my torque wrench as Hex needs to be inserted by 15mm as per manufacturers instructions which is looong!
Not ridden them yet to see of there is any difference in feel, but these would pair well with the 50/60 CRW Wheels I have ordered.
Only time well tell in regards to longevity as I am bit wary of the loosening and tightening of these as the hex end is carbon so will have to take more care than usual.
CHEE MUN WAI (verified owner) –
Extremely light compare to my existing aluminum thru axles. Was initially at doubt if these will last and safe for use. Had been cycling with these for around 3 months without any issue. Also noticed that these alxes dampen the vibration on the road more than the alu axles too.
hadriengd (verified owner) –
Come at 33gr for my sl8. No issue when riding them for three months, even with a lot of mount/dismount (always checking the tork).
andygarden (verified owner) –
Received these this week, very nicely made, finish is great. Came in at 31g for the pair (Canyon Ultimate 2023) stock DT Swiss are 71g for the pair, so a decent weight saving.
Angel Ortiz (verified owner) –
Axles are great when the company gets them correct after getting the wrong axles twice was told to take a video to see why they were not threading into the canyon frame when i actually sent in a picture showing the difference in pitch thread overfast did not get my order right almost six months of back and forth and instead of just honoring the return a video was requested which made no sense def not worth the price to save some weight on thru axles when the customer backing is not there lost me as a customer sadly!!!
