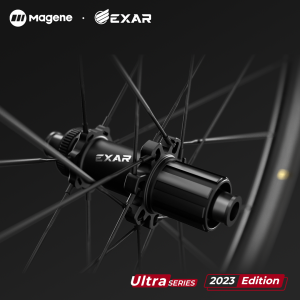

Magene 2024 EXAR Ultra DB508 Carbon Spoke Disc Brake Wheelset
$1,199.00
Introducing the ARISUN STORM R1 Clincher Racing Tire—premium performance at an unbeatable price.
Save more when you buy with wheelsets!
- Brake: Disc Brake
- Weight: 1375g ±3%
- Depth: Front Wheel 50mm, Rear Wheel 58mm
- External Rim Width: 30mm
- Internal Rim Width: 23mm
- Ratchet: 36T (Compatible with DT hub system)
- Tubeless Ready
- Recommended Tire Width: 28c – 32c
- Package Includes: Tubeless Rim Tapes*2, Rim Plugs*50, Tubeless Valves*2, User Manual*1
Customer Review
Great wheels at a great price They ride really nice and smooth with a really light weight for their depth. The width is also really nice allowing a pair of 28c GP5000s to blow up to 29.3mm and gettin... keep reading
What Customers Think
- Description
- Additional information
- Brand
- Reviews (2)
Description
Integral Design, Lighter And Faster
Riders want wheelsets that are lighter, stiffer, and faster. EXAR engineers have risen to the challenge with Ultra wheelset to help riders ride faster in the race. The EXAR Ultra wheelset applies HI-MOD T800 carbon fiber, following the integrated and systematic design. The primal materials allow a great reduction in weight while retaining outstanding stiffness. These help riders get a smooth start and faster acceleration.
Lower Front Wheel and Higher Rear Wheel Design
The EXAR Ultra wheelset features a new design concept of a low front wheel and a high rear wheel. While ensuring high inertia of the rear wheel, also keeps the controllability of the front wheels, allowing the rider to ride more efficiently and stably.
30mm Width Rim, More Aerodynamic and Comfortable
A 30mm width rim and 23mm internal width are purely designed for disc brake structure. It ensures optimal aerodynamic performance in complex wind conditions, improving stability in crosswinds as well.
After installing the 28-32c tire, the contact surface between the tire and rim is flat. As a result, It creates a flatter aerodynamic surface and enhances cycling comfort.
Full Carbon Fiber Spokes, Contribute Ultra-Stiffness
EXAR Ultra carbon fiber wheelset features HI-MOD T800 carbon fiber spokes. Each spoke weighs only 2.8g, 30% lighter than top-level steel spokes. Carbon fiber spokes have higher tensile strength and can withstand 30% more tensile force. Lower strength loss of transmission brings higher driving efficiency.
The wheelset applies a 2:1 balanced lacing pattern, which distributes tension perfectly. The spoke tension of the rear-wheel drive side is 130kgf±10%, and the non-drive side is 110kgf±10%.
Ceramic Bearing, Smooth And Durable
Compared to steel, ceramic is lightweight with low resistance, which can be used to make smoother bearings. A well-made ceramic bearing has lower resistance, thus saving you energy and allowing rapid acceleration.
The contact surface of the bearing and body is processed with smooth edges to create precise synergy.
Flat Engagement Ratchet Design
Details reveal the optimal configuration. Adopt a 36-tooth flat ratchet, which has tighter engagement with a larger surface. This can make the ratchet more durable, with fast and precise engagement as well as stability.
Improve Flange Diameter, Extending Endurance
The flange diameter has been calculated scientifically in terms of the stiffness of carbon fiber spokes. We reduce the amount of stress concentration point where the spoke contacts with the hub, thus improving driving stiffness and extending endurance.
Professionally Tested, Approved by UCI
Pro riders are the best test of the wheelset. They demand the highest performance and most reliable wheelset design. The EXAR Ultra wheelset has passed the UCI impact tests. After applying an energy of 40J on the bare carbon rim, the deviation complies with UCI standards, helping professional riders lead the field.
ARISUN STORM R1 High-Performance RACING Road Bike Tire
Elevate your cycling experience with ARISUN STORM R1
An award-winning road bike tire that received the Excellence Award from the CHINA CYCLE Creative Award 2024. Designed with cutting-edge innovation and superior performance, it is developed by ZC RUBBER, the globally recognized manufacturer of CHAOYANG and ARISUN tires.
- Weight: 700x28C: 235 ±5% grams
- 330 TPI construction delivers superior flexibility and durability
- Dual compound design enhances speed and grip
- AR (ARMOR REX) system provides excellent puncture resistance
- Tested and proven in international racing environments
- Winner of the Excellence Award at CHINA CYCLE Creative Award 2024
Additional information
| Freehub Type | Shimano HG Compatible, Sram XDR Compatible, Campagnolo Road Compatible |
|---|
Brand
Magene
| Brand Name: Magene | Chinese Company Name: 青岛迈金智能科技股份有限公司 |
| Founded: 2015 | # of Employees: 300 |
| Headquarters: Qingdao, Shandong | Products Categories: Bike Trainers, Power Meters, Heart Rate Sensors, etc |
2 reviews for Magene 2024 EXAR Ultra DB508 Carbon Spoke Disc Brake Wheelset
Add a review
You must be logged in to post a review.
emiliolopez.elb (verified owner) –
Great wheels at a great price
They ride really nice and smooth with a really light weight for their depth. The width is also really nice allowing a pair of 28c GP5000s to blow up to 29.3mm and getting a nice smooth transition between tire and rim.
The crosswind can be felt in this rims but they do feel a bit more managable
Comparing against my old campagnolo bora ones this wheels ride as nice as them if not better
The only downside are the holes in the rim bed but i can imagine my mechanic would appreciate them if they ever need any adjustments in the spokes
Shane Kloepfer (verified owner) –
I have about 600 miles so far and they have been perfect. I love the way they look, and ride. The internal and external rim dimensions seem about perfect for 700×28 tires. I recommend there. I like them as much as my Rovals
