EXS FK-01 Integrated Fork
$299.00
*This fork is specifically made for Giant TCR. Please check the dimensions and recommend bearing size below*
*Note: Contact us before order
FK-01
Steerer Tube Diameter: 31.8mm
RAKE: 45mm
Fork Length: 370mm
Brake mount: Flat mount
Axle Compatibility: 12*100mm(axle is not included)
Weight: 370g
Max Tire Size: 32mm
- Description
- Additional information
- Brand
- Reviews (0)
Description
- Enter the FK-01 integrated fork
With the rise of full internal cable routing becoming the current standard in the cycling industry, there’s a growing need for solutions that can adapt to partially internally routed frames.
- Go fully integrated
The FK-01 fork addresses the concerns of normal fully integrate by increasing the steerer tube diameter to 31.8mm and D-shaped design con bind together. Through the use of carbon fiber one-piece molding technology and reinforcement design, it achieves increased strength and rigidity without adding extra carbon layers to the steerer tube, thus reducing weight and maintaining the desired strength.

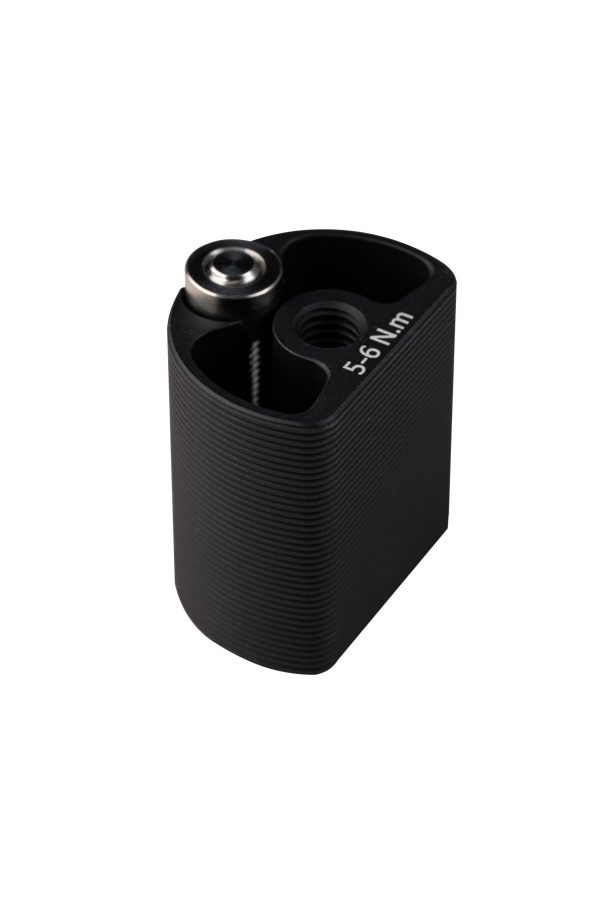

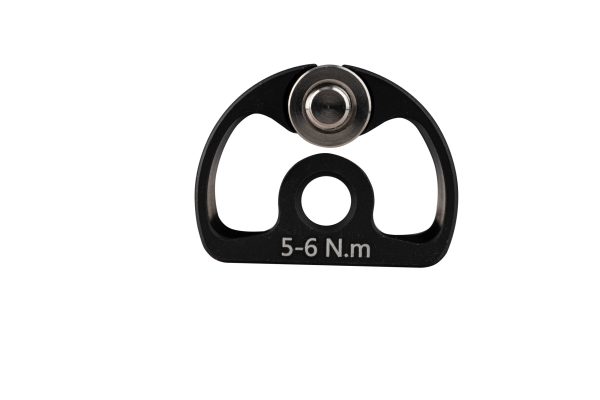

With the thicker steerer tube, some models can use a standard, non-offset top cap when paired with a small-sized headset and our dedicated lightweight compression plug, allowing your bike for a more aesthetically pleasing build.
- Fork Geometry and Recommend Bearing Size
- Stiffness/Rigidity Comparison
With the thicker steerer tube, some models can use a standard, non-offset top cap when paired with a small-sized headset and our dedicated lightweight compression plug, allowing your bike for a more aesthetically pleasing build.
Additional information
| Fork Size | Normal, XL (extra steerer height for larger frames) |
|---|
Brand
EXS
| Brand Name: EXS | Chinese Company Name: 厦门非凡速度工贸有限公司 |
| Founded: 2021 | # of Employees: 5-10 |
| Headquarters: Xiamen, Fujian | Products Categories: Wheels, Bars, Stems |
