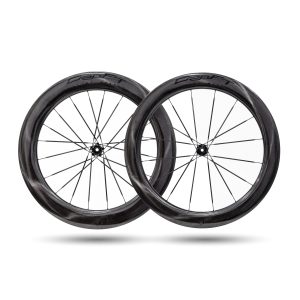

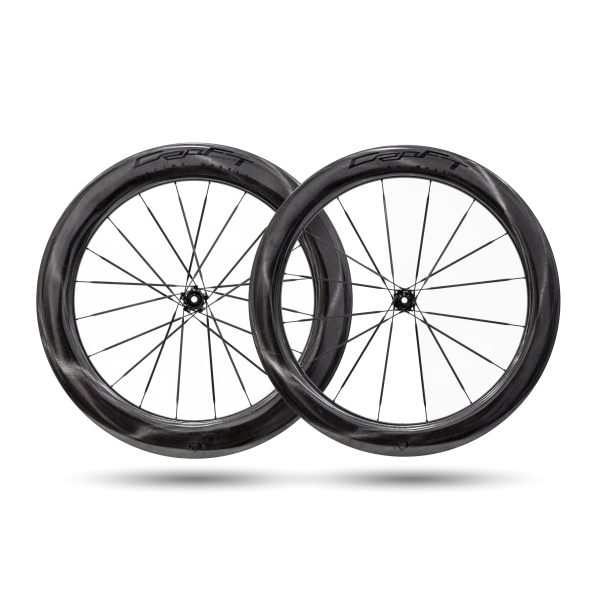

CRW Works CS6575 Disc Brake Wheelset
$1,680.00 – $1,710.00
Note: The wheelset is only available with pre-order, and the wait time will be around 10-20 days.
- 1430g per set only
- 3rd gen carbon spokes
- Ceramic bearings
- 36T star ratchet
- Gorgeous UD paintless rims
- Stealth black decals
Customer Review
I bought these wheels on 08/21/24 and they were delivered to me on 09/3/24 with regular shipping, not bad from China to Utah in 13 days (including two weekends and a holiday). They came in just over t... keep reading
What Customers Think
- Description
- Additional information
- Brand
- Reviews (1)
Description
| Weight | 1430g±2% Front 650g Rear 780g |
Rim Specifications |  |
| Rim Material | Unpainted high-rigidity carbon fiber rims |
| Spokes | Carbon fiber spokes |
| Hub | 7075-T6 Aluminum ceramic bearing 36T plane gear |
| Freewheel Body | Shimano HG/SRAM XDR/Campagnolo |
| Axle Standard | Front 100X12 Rear 142X12 Centerlock |
| Max Tire Pressure（25C） | 120psi (Above 26C tire is recommended for front wheel) |
| Max Cyclist Weight | 100kg |
Craft Racing Wheels: CS Series
Next Generation Carbon Spoked Wheels
The Craft Racing Wheels are the first of a new generation of carbon spoked racing wheels. Ultra-light disc brake specific rims that were designed from the ground up to take advantage of carbon spokes. Most carbon spoked wheels on the market lace a regular rim to their carbon spokes leaving a lot on the table in terms of wheel system optimisation and performance. The result? Shockingly light wheels. The CS4045 wheels with a 40mm deep front wheel and 45mm deep rear wheel tip the scales at a claimed 1180g. (Ours clocked in at 1176.3g for the pair.) There’s no cutting corners either. We’re talking about fat 29mm external rim width, hooked and fully tubeless or clincher compatible.
How do they do it?
So how do you make a sub 1200g disc brake wheelset? A lot of high modulus carbon, exotic alloys and a unique patented design. When you stare through the clearcoat of the rim and see the beautiful carbon construction of the rim, it’s hard not to be impressed. The hubs are equally awe-inspiring. The 7075-T6 aluminium has clearly spent a long time being CNC’d into the art piece that it is. The obsession with weight is clear when you see the dimples drilled into the freehub body. If that wasn’t crazy enough, further weight was reduced by removing half of the disc brake rotor splines. Fear not – disc brake splines are mostly for locating. If you tighten the lock rings to spec, most of the braking force doesn’t go through the splines. This is the obsession with details taken to create these wheels.
A Video Overview by China Cycling
Just how light are they?
-
Select options This product has multiple variants. The options may be chosen on the product page
1180g
-
Select options This product has multiple variants. The options may be chosen on the product page
1250g
-
Select options This product has multiple variants. The options may be chosen on the product page
1290g
Performance Driven
While weight is a huge part of performance, it’s not everything. Aerodynamics and stiffness are a key part of the equation. The carbon spokes of the CS series are especially thin to help them slice through the air. Furthermore, they’re locked in place at both ends to prevent them rotating into an un-aerodynamic position. With just 16 spokes on the front wheel there’s also a big reduction in aerodynamic drag and weight.
Many people wonder if 16 spokes are enough to deal with the huge braking forces of a disc brake front wheel. However, consider that both sides of the wheel are cross-laced spokes. This means 8 of the spokes are handling the load. Compare this to a 21-spoked wheel that uses 2:1 spoke lacing. Such a wheel only has 7 spokes doing most of the load transfer.
It’s just another example of how the wheels have been optimised to take advantage of carbon spokes and increase performance.
Specifications
CS 4045
-
Select options This product has multiple variants. The options may be chosen on the product page
Brake Type: Disc
Weight: 1180g ±2%
Front wheel
Rim Depth: 40mm
Internal Rim Width: 21mm
External Rim Width: 29mm
No. of Spokes: 16
Min. Tire Size: 24mm
Max. Tire Size: 40mm
Max. Tire Pressure: 120psi @ 25mm
Thru Axle Size: 100 x 12mm
Rear wheel:
Rim Depth: 45mm
Internal Rim Width: 21mm
External Rim Width: 29mm
No. of Spokes: 20
Min. Tire Size: 24mm
Max. Tire Size: 40mm
Max. Tire Pressure: 120psi @ 25mm
Thru Axle Size: 142 x 12mm
Tubeless compatible, Hooked rim.
Freehub: 36T Star Ratchet. Shimano 11s, SRAM XDR or Camp. compatible options.
CS 5055
-
Select options This product has multiple variants. The options may be chosen on the product page
Brake Type: Disc
Weight: 1250g ±2%
Front wheel
Rim Depth: 50mm
Internal Rim Width: 21mm
External Rim Width: 29mm
No. of Spokes: 16
Min. Tire Size: 24mm
Max. Tire Size: 40mm
Max. Tire Pressure: 120psi @ 25mm
Thru Axle Size: 100 x 12mm
Rear wheel:
Rim Depth: 55mm
Internal Rim Width: 21mm
External Rim Width: 29mm
No. of Spokes: 20
Min. Tire Size: 24mm
Max. Tire Size: 40mm
Max. Tire Pressure: 120psi @ 25mm
Thru Axle Size: 142 x 12mm
Tubeless compatible, Hooked rim.
Freehub: 36T Star Ratchet. Shimano 11s, SRAM XDR or Camp. compatible options.
CS 5060
-
Select options This product has multiple variants. The options may be chosen on the product page
Brake Type: Disc
Weight: 1290g ±2%
Front wheel
Rim Depth: 50mm
Internal Rim Width: 25mm
External Rim Width: 34mm
No. of Spokes: 16
Min. Tire Size: 26mm
Max. Tire Size: 45mm
Max. Tire Pressure: 120psi @ 26mm
Thru Axle Size: 100 x 12mm
Rear wheel:
Rim Depth: 60mm
Internal Rim Width: 21mm
External Rim Width: 29mm
No. of Spokes: 20
Min. Tire Size: 24mm
Max. Tire Size: 40mm
Max. Tire Pressure: 120psi @ 25mm
Thru Axle Size: 142 x 12mm
Tubeless compatible, Hooked rim.
Freehub:36T Star Ratchet. Shimano 11s, SRAM XDR or Camp. compatible options.
What's Included?
Each wheelset includes:
Front wheel, Rear wheel, pre-installed tubeless tape, and tubeless valves, Each wheel also comes with a wheel build card with the spoke tension of each spoke, the serial number of the rim and hub, and the roundness and flatness measurements. Each card is signed and dated by the craftsman who built the wheel.
Warranty
Each wheelset comes with a two-year limited warranty that covers manufacturing defects. It does not cover the wheels from misuse or accidental damage. If you do accidentally damage your wheels, get in touch with us with your proof of purchase and we will asses the damage and find a solution to get you back on the road as quickly and cheaply as possible.
Weight Limits
The wheelsets have a 100kg weight limit. This is the system weight limit and includes rider, bike and any luggage. We test above and beyond these weight limits but users should not exceed these limits.
Frequently Asked Questions
What freehub body options are there?
We have freehub options to make your wheelset compatible with Shimano 11/12s, Campagnolo or SRAM XDR options.
What bearings do the wheels use?
The wheels use high-quality ceramic hybrid bearings. The freehub body bearings are 6802, the other 4 bearings are 6902.
Which wheels are best for me?
If you like to use wider tires (28mm and above) with lower pressures, we recommend the CS5060 wheels. If you run 25mm tires we recommend the CS4045 or CS5055 wheels depending on whether you want to be optimised for weight or aerodynamics respectively.
Are the decals removable?
No. The decals are under the clearcoat and are non-removable.
What happens if I break a spoke?
The carbon spokes have a tensile strength much greater than traditional steel spokes, so the likelihood of breaking a spoke is very low. In the rare instance you do break a spoke, contact us with photos of the damage and we can supply replacement spokes and installation instructions.
Additional information
| Decal Color | Black Decals, Black Decals + White Stickers (Provide Separately) ($30.00) |
|---|---|
| Freehub Type | Shimano HG Compatible, Sram XDR Compatible, Campagnolo Compatible Campagnolo 10-12 Speed Compatible, Campagnolo N3W Compatible |
Brand
CRW Works
| Brand Name: CRW Works | Chinese Company Name: 厦门铠富特运动科技有限公司 |
| Founded: 2021 | # of Employees: 5-10 |
| Headquarters: Xiamen, Fujian | Products Categories: Wheels |
1 review for CRW Works CS6575 Disc Brake Wheelset
Add a review
You must be logged in to post a review.
Jeffrey Short (verified owner) –
I bought these wheels on 08/21/24 and they were delivered to me on 09/3/24 with regular shipping, not bad from China to Utah in 13 days (including two weekends and a holiday). They came in just over the advertised weight at 1442g, but well within the +/- 2% limit and still seemed staggeringly light for wheels this deep. My first impression was they very good, the wheels looked great and everything seemed very precise. Finish is immaculate on both front and rear, spokes were all perfectly faced with no rubbing or touching between spokes, and I loved that they came with a nice set of brake lock rings. I put a set of Continental 5000S TR 28s on which went on fairly easily and mounted so tight that there was no apparent air leak even before I put sealant in. Due to the nice wide internal rim width, the measured inflated width was 31mm front and 30mm rear for my set of 28s. I went for a test ride and immediately knew these were an amazing set of wheels. Lighter, deeper, and wider than the ENVE 4.5 SES I had been riding, they were snappy on acceleration and held speed amazingly well – which is exactly what I was hoping for. I have put 770 miles on these wheels so far in the last 3 weeks, but this includes the full LoToJa (longest UCI certified race in the US) and Salt to Saint (Salt Lake City to Saint George, Utah), and let me tell you – the climbing on LoToJa is no joke and these wheels acted like they were box rim climbers. The only thing I can complain about is something I fully expected when I choose to buy rims this deep, when I finished the 3rd big climb riding LoToJa and started my descent, I was hit by massive side winds and was blown around some. Again when I descended Suncrest riding in S2S I was blown around pretty good coming down the South side. Like I said, I expected this because as good as these wheels are, physics is a thing. Other that that I have zero complaints. I have set so many PRs since mounting these wheels that I’m thinking about selling my ENVEs and getting a shallower set. If you are reading this review trying to make up your mind about buying… just order, now. Performance at this price feels like I’m cheating.
