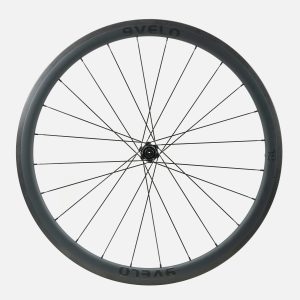

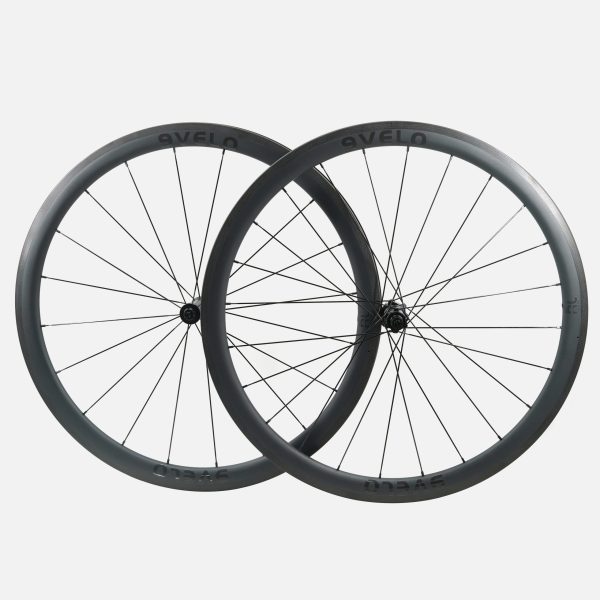

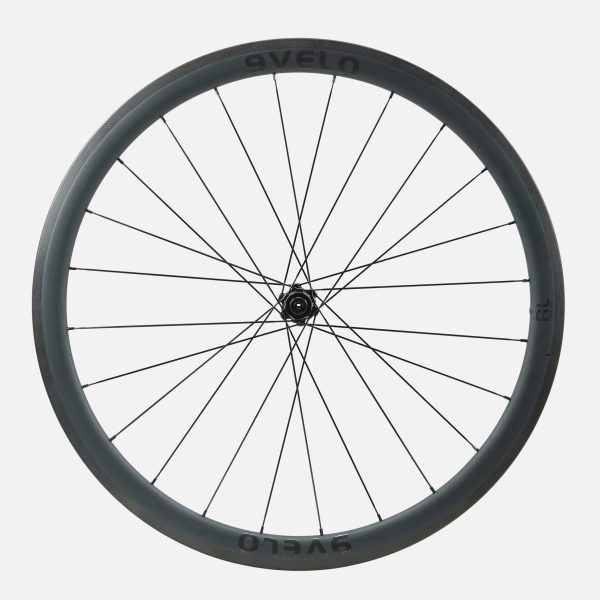

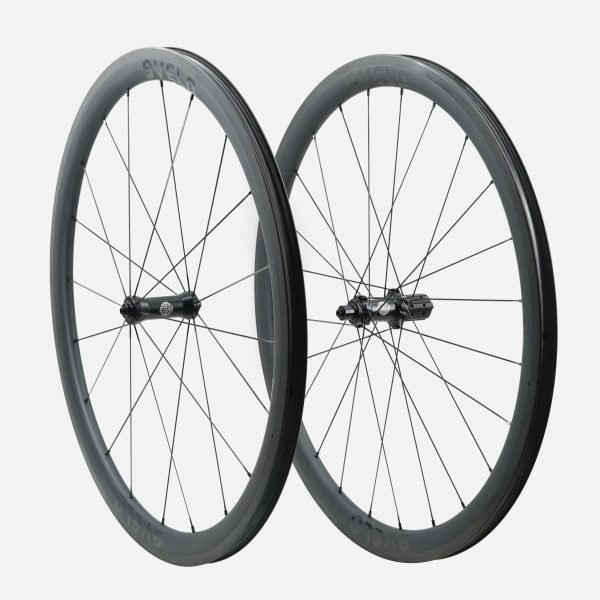

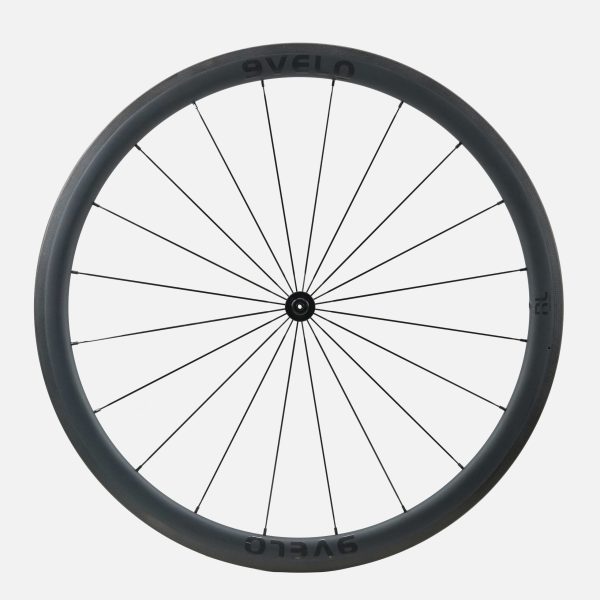

9Velo 2024 RL40 Road Rim Brake Lightweight Wheelset
$929.00 – $979.00
Note: The 9velo wheels are only build after order, RL series will take 1-2 weeks to build.
- Rim Depth: 40mm
- External Width: 26.3mm
- Internal Width: 19mm
- Spokes: Sapim CX-Ray
- Bearings: S&S steel bearings
- Weight: 1346g±30g
- Warranty: 2 Years
Customer Review
Fast, accurate delivery. The freewheel body disassembles too easily, affecting the centring of the wheel. Difficult to install and pressurise tyres. Rigid, lightweight wheels.
What Customers Think
- Description
- Additional information
- Brand
- Reviews (1)
Description
FEATURES
RIM
- Higer-end carbon layering makes ultralight rim weight, so that you do not need to sacrifice weight for aero benefits.
- Tubeless/clincher compatibility offers you more choices of tires.
- Unique laser logo decals cut several grams of weight off, compared to the last generation. One more bonus, it won’t peel like sticker decals.
- The specific braking track is more durable and heat-resistant than usual braking tracks, providing strong braking effects.

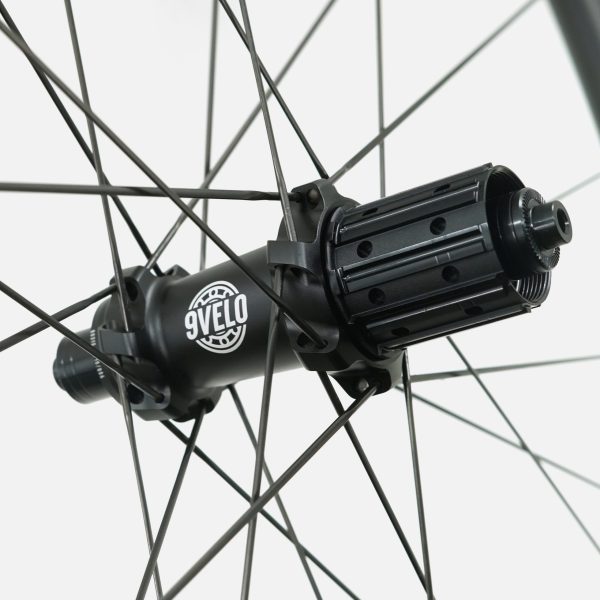

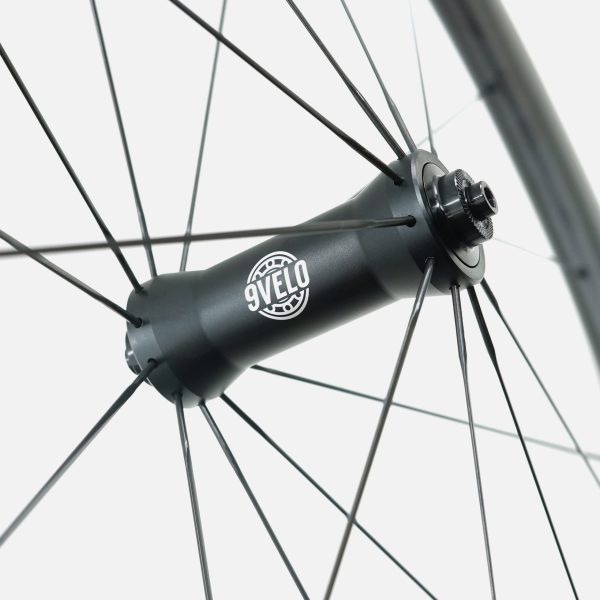

HUB
- Ratchet system hubs offer a fast-engagement and efficient wheel for a smooth riding experience, which is beneficial for instant speed acceleration in the race and riding engaging various speeds and technical cornering.
- High-precision hub axle is hard anodized to add stiffness and reached a tolerance within 0.003mm.
- Hubs provide convenient and easy freehub body exchange between different groupset systems and no-tool needed maintenance.
SPOKE & NIPPLE
- Well-recognized Sapim CX-Ray spokes provide the balance between weight, aero and stiffness.
SPECIFICATIONS
| Lightweight Road Rim Brake RL Series (Model Year 2024) | ||
| Model | RL40 | RL55 |
| Wheel Type | 700C Ultralight Lightweight Road Rim Brake Wheelset | |
| Brake Type | Rim Brake | |
| Tire Compatibility | Tubeless/Clincher Compatible | |
| Rim Type | Hooked | |
| Rim Bed | No Holes Drilled | |
| Rim Finish | UD Matte | |
| Rim Decals | Gray Logo | |
| Rim Outer Width | 26.3mm | 27mm |
| Rim Inner Width | 19mm | |
| Rim Depth | 40mm | 55mm |
| Tire Size Range | 700x23c – 700x45c | |
| Spoke Hole Count | 20H/24H | |
| Spoke | Sapim CX-ray Steel Spokes | |
| Nipple | Alloy | |
| Hub | V262 Lightweight Hub, Straight Pull (PG Ratchet System, 36 Teeth), Quick Release, 9*100/10*130 | |
| Freehub | Shimano Road/Sram XDR/Campagnolo | |
| Bearing | S&S steel bearings, Front: 2*6803, Rear: 1*15267, 3*6802 | |
| System Weight Limit | 120kg/265lbs | |
| Weight (Front + Rear)* | 1346g* | 1469g* |
*Weighted with Shimano Freehub, ±30g
Rim Profile
IN THE BOX
- Wheelset
- Tubeless tape:pre-installed
- Tubeless valves
- Spare spokes
- Spare nipples
Additional information
| Freehub Type | Shimano HG Compatible, Sram XDR Compatible, Compagnolo N3W |
|---|---|
| Hub Ratchet | 36t, 45t ($50.00) |
Brand
9VELO
1 review for 9Velo 2024 RL40 Road Rim Brake Lightweight Wheelset
Add a review
You must be logged in to post a review.
ADAM Rémi (verified owner) –
Fast, accurate delivery.
The freewheel body disassembles too easily, affecting the centring of the wheel.
Difficult to install and pressurise tyres.
Rigid, lightweight wheels.
